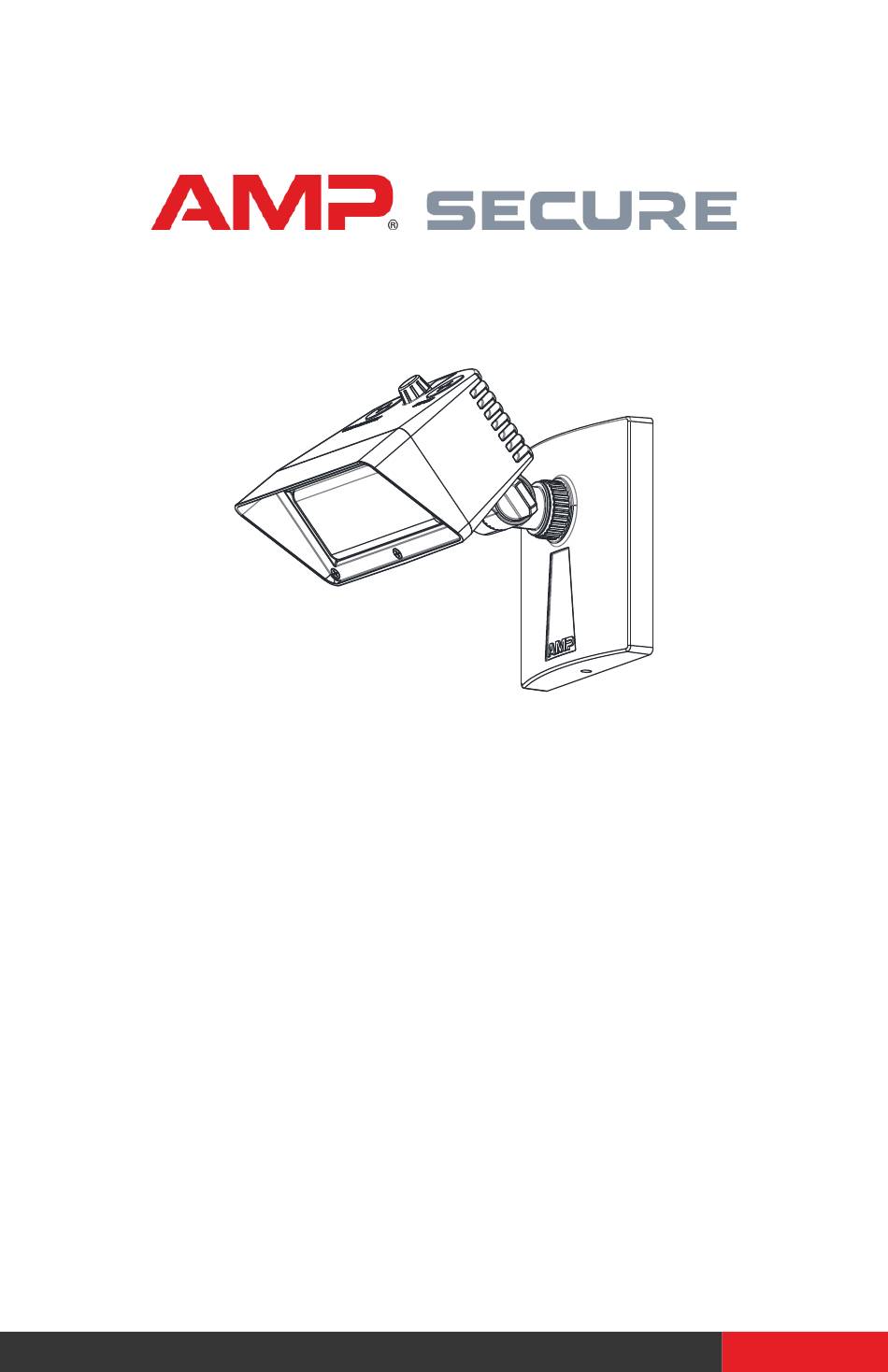

- Page 1 SECURE Adjustable Flood Light ® ITEM: AFL-4036-35S-UNV-S SAVE THESE INSTRUCTIONS - 1 -...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE SECURE Adjustable Flood Light - AFL-4036-35S-UNV-S ® IMPORTANT: PLEASE READ BEFORE INSTALLATION READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. Fixtures must be wired in accordance with all local codes and the National Electrical Code. -
Page 3: Package Contents
PACKAGE CONTENTS (1) Luminaire (2) Outlet Box Screws (3) P4 Wire Connectors (2) P2 Wire Connectors (1) Clear Cap PRODUCT DIMENSIONS 2.75” 4.58” 5K - 4K - 3K 25/15W 4.24” 5.54” 2.55” 3.48” 4.5”... -
Page 4: Remove Mounting Plate
INSTALLATION & MAINTENANCE GUIDE SECURE Adjustable Flood Light - AFL-4036-35S-UNV-S ® REMOVE MOUNTING PLATE Loosen the set screw until the Coverplate mounting plate disengages. Mounting Plate Set Screw Allen Wrench (not included) MOUNTING PLATE INSTALLATION Secure the mounting plate Mounting Plate... - Page 5 CONNECT THE LUMINIARE WIRES TO THE SUPPLY WIRES P4 Wire Connector Supply Wires P2 Wire Connector Mounting Plate Junction Box Luminaire Wires Feed the supply wires through the mounting plate. Make the connections as follows: Connect the Green Ground wire to the Green luminaire wire; Connect the White wire to the White luminaire wire;...
-
Page 6: Important Note
Do NOT apply the sealant to the bottom of the wallplate. Leave a space at the bottom of th wall plate the size of the AMP LOGO for potential drainage. Coverplate PHOTOCELL FUNCTION To use the built-in Photocell... - Page 7 ACCESS TO SELECTION SWITCHES Remove threaded Plugs from the top of the fixture to access the selection Plug switches. COLOR TEMPERATURE (CCT) & POWER SELECT SWITCHES 25W Max: Power Selection Switch 5000K 4000K 3000K 25/15W 25W, 15W Color Temperature 5K - 4K - 3K...
- Page 8 ROTATE fixture. Tighten the thumb screw. 1-813-978-3700 • Mon-Fri 9am-6pm (ET) Specifications and product details subject to change without notice. © Copyright 2024, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
