Summary of Contents for Asus UX564E Series

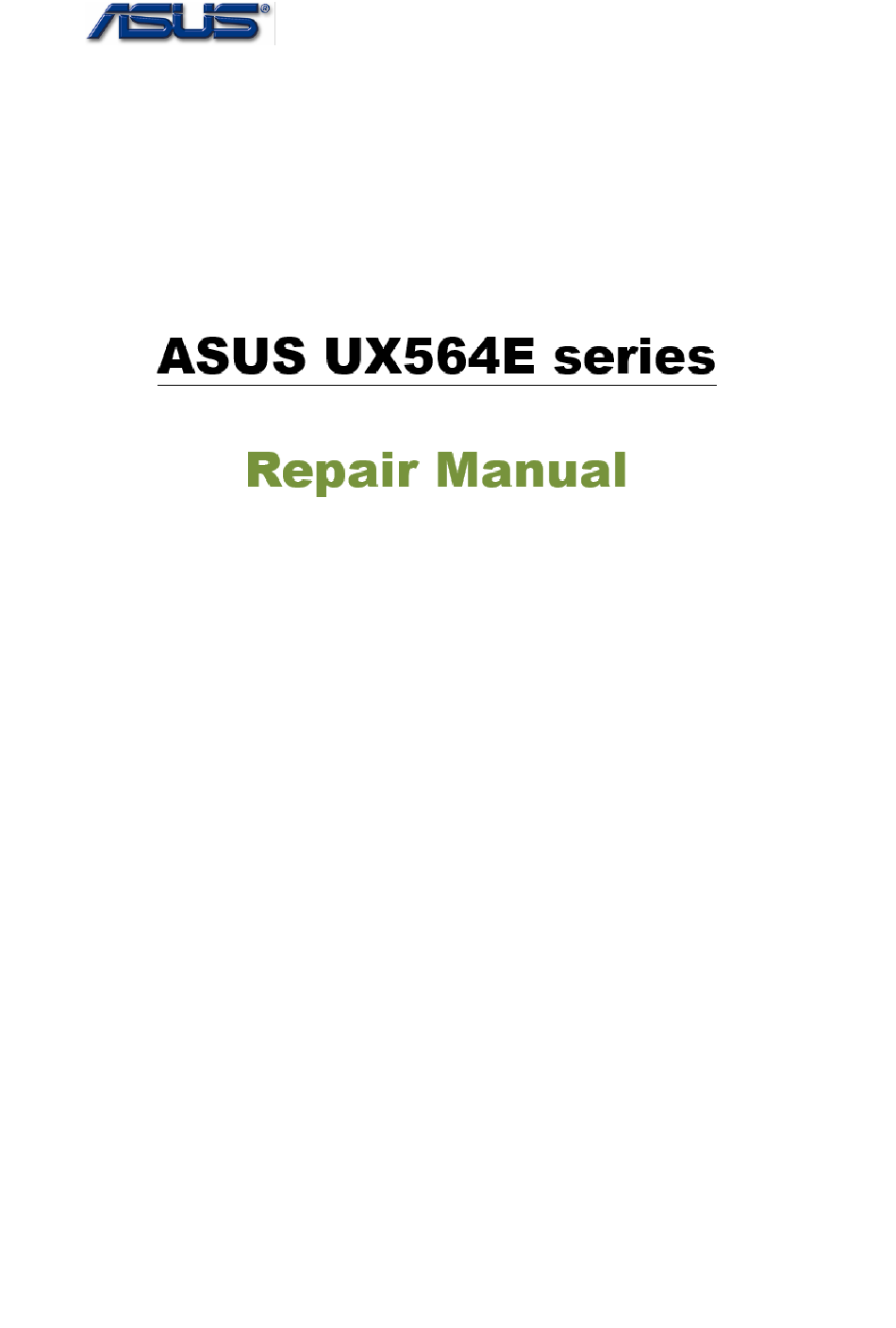

  • Page 1 Disassembly Procedure...
  • Page 2 Disassembly Procedure...
  • Page 3 Disassembly Procedure...

  • Page 4: Service Overview

    Disassembly Procedure Service Overview...
  • Page 5 Disassembly Procedure Pre-repair checklist...
  • Page 6 Disassembly Procedure Repair Overview Please pay special attention to the cautions below to prevent any damages to the notebook and please be sure to select the appropriate tools described in this section to perform any services desired. Precautions Before you perform any service or repair on the notebook, please follow the steps below first. 1.
  • Page 7 Disassembly Procedure 9. Screw Appearance Criteria. If the screws have the following damaged appearance, please do not use. a. Shape deformed. b. Paint scratched off. c. Rusty. d. Damaged head – unable to drive in. e. Damaged unable to securely tighten. 10.
  • Page 8 Disassembly Procedure Appropriate Tools The illustrations below show the appropriate tools that should be used for the notebook’s service and repair. ➢ Cross Screwdriver Please accord to different screw specification to choose different screwdriver and head. Below photos are for reference only. Use a cross screwdriver to fasten/remove screws.
  • Page 9 Disassembly Procedure ➢ Thickness gauge Thickness compass specification 0.05mm-1.5mm. Use it to measure the gap.
  • Page 10 Disassembly Procedure Bottom Case Module The illustrations below show how to remove the Bottom Case Module. Notice: After disassembling bottom case, if you want to replace any part, please be sure to disconnect the battery connector more than ten seconds to avoid damaging any part. 1.
  • Page 11 Disassembly Procedure 3. Use plastic blade to pry Bottom Case and remove it. 4. Pull out battery cable. Notice: Please follow below steps to disconnect and assemble the battery connector.
  • Page 12 Disassembly Procedure Snaps as below Parts: ⚫ Total screw * 11 ⚫ BOTTOM CASE ASSY *1 ⚫ (Actual part name depends on different SKU.)

  • Page 13: Battery Module

    Disassembly Procedure Battery Module The illustrations below show how to remove the Battery Module. After disassembling the bottom case, the battery connector has been disconnected. Follow below numbers to remove 2 screws on the battery module and take out the battery. Assembly Notice: Follow the reverse numbers to lock screws.
  • Page 14 Disassembly Procedure Speaker & Antenna Module The illustrations below show how to remove the Speaker & Antenna Module. 1. Disconnect the Speaker Cable and WLAN Antenna. 2. Tear off the gasket. 3. Remove the speaker and antenna...
  • Page 15 Disassembly Procedure Assembly Notice: Please well arrange the speaker cables and put it in the hook slot as below. Parts: ⚫ Total screw * 0 ⚫ Speaker *1 ⚫ Antenna * 2 ⚫ (Actual part name depends on different SKU.)

  • Page 16: Touchpad Module

    Disassembly Procedure Touchpad Module The illustrations below show how to remove the Touchpad Module. 1. Tear off the UX533FD CONDUCTIVE TAPE Disconnect the TP FFC. Notice: The CONDUCTIVE TAPE must be stuck well when assembled. Insert FFC to the bottom until just accord with the line when lock the latch. 2.
  • Page 17 Disassembly Procedure Notice: Add UX533FD KB BKT TAPE The KB BKT TAPE should be stuck well when you assemble it. Assembly notice: Please change new one, If FFC is damage during disassembly. Here are some samples of FFC damage:...
  • Page 18 Disassembly Procedure Parts: ⚫ Total screw * 3 ⚫ TP FFC 8P 0.5,L152.5 *1 ⚫ TOUCHPAD *1 ⚫ (Actual part name depends on different SKU.)

  • Page 19: Led Board

    Disassembly Procedure LED Board The illustrations below show how to remove the LED Board. 1. Remove 1 screw and disconnect the Power Switch FFC. Assembly notice: Insert FFC to the bottom until just accord with the line when lock the latch. Power Switch FFC Remove the M2X2...
  • Page 20 Disassembly Procedure Assemble Notice: 1.Please push the LED Board follow the direction when you assemble it. 2.Lock screw. 3.Confirm the Power Button which should start system by pressing flexibly (not stuck) after you assemble the bottom case. Assembly notice: Please change new one, If FFC is damage during disassembly. Here are some samples of FFC damage:...
  • Page 21 Disassembly Procedure Parts: ⚫ Total screw * 1 ⚫ Power Switch FFC ⚫ LED BD *1 ⚫ (Actual part name depends on different SKU.)
  • Page 22 Disassembly Procedure IO Board The illustrations below show how to remove the LED Board. 1. Remove 2 screws and disconnect the FFC. Assembly notice: Insert FFC to the bottom until just accord with the line when lock the latch. Take out the IO Board. M2X2 2KG±0.2kgf Assembly notice: Please change new one, If FFC is damage during disassembly.
  • Page 23 Disassembly Procedure Parts: ⚫ Total screw * 2 ⚫ IO FFC ⚫ IO BD *1 ⚫ (Actual part name depends on different SKU.)

  • Page 24: Ssd Module

    Disassembly Procedure SSD Module The illustrations below show how to remove the SSD Module. 1. Remove 1 screw and take out the SSD. Screw tightening torque (Kg F-cm): 2.0KG±0.2kg M2X3 Parts: ⚫ Total screw * 1 ⚫ SSD *1 ⚫ (Actual part name depends on different SKU.)

  • Page 25: Thermal & Fan Module

    Disassembly Procedure Thermal & Fan Module The illustrations below show how to remove the Thermal & Fan Module. 1. Disconnect the fan cable from mainboard. 2. Remove 14 screws on the Thermal & FAN Module. Assembly Notice: follow the reverse numbers to lock screws. Screw tightening torque: 2.0KG±0.2kgf Screw tightening torque: 2.0KG±0.2kgf M2*4L (K) B-ZN, NY...
  • Page 26 Disassembly Procedure 3. Disconnect Thermal and Fan Module. Location: [GPU/CPU] Thermal material: GA500 Grease Location: [VRAM/CHOKE/MOS] thickness about 0.2~0.3mm Thermal material: FCR-AS Grease Thermal grease thickness = 0.5 ~ 0.6mm ⚫ Please use the correct technique of taking fans in order to avoid being out of shape.
  • Page 27 Disassembly Procedure Correct demonstration Wrong demonstration Parts: ⚫ Total screw * 14 ⚫ THM FAN *2 ⚫ THERMAL*1 ⚫ (Actual part name depends on different SKU.)
  • Page 28 Disassembly Procedure HDMI Board Module The illustrations below show how to remove the HDMI Board Module. 1. Remove 4 screws and disconnect the HDMI FPC. Assembly notice: Insert FFC to the bottom until just accord with the line when lock the latch. M2*3L (K) B-ZN, NY 2.0KG±0.2kgf Remove 5 screws and rotate the hinge to take out the IO Board.
  • Page 29 Disassembly Procedure HDMI BD MYLAR Assembly notice: Please change new one, If FFC is damage during disassembly. Here are some samples of FFC damage: Parts: ⚫ Total screw * 9 ⚫ HDMI FPC *1 ⚫ HDMI Board * 1 ⚫ (Actual part name depends on different SKU.)
  • Page 30 Disassembly Procedure Motherboard Module The illustrations below show how to remove the Motherboard Module. 1. Disconnect TP Function Cable, EDP Cable, Backlight Keyboard Cable. 2. Remove 7 screws on the Mainboard. Assembly Notice: follow the reverse numbers to lock screws.
  • Page 31 Disassembly Procedure Assembly Notice: Please paste a new HINGE ABSORBER when you assemble the Mainboard. HINGE ABSORBER SOP as below: M2.5*5.5L (4.5,0.8) (K) 2.5KG±0.25kgf M2*4L (K) B-ZN, NY 2.0KG±0.2kgf M2*3L (K) B-ZN, NY 2.0KG±0.2kgf Parts: ⚫ Total screw * 7 ⚫...
  • Page 32 Disassembly Procedure Notice: These pictures for your reference for mylar/gasket/sponge etc. of MB. 1. UX534FA GPU KAPTON 2. UX564EH CPU BRACKET ASSY 3. UX564EH MB BOT ABSORBER 4. UX564EH MB TOP MYLAR 5. UX564EH MB CONDUCT TAPE...

  • Page 33: Keyboard Module

    Disassembly Procedure Keyboard Module The illustrations below show how to remove the Keyboard Module. Remove the Keyboard. Parts: ⚫ Total screw * 0 ⚫ Keyboard Module *1 ⚫ (Actual part name depends on different SKU.)

  • Page 34: Lcd Module

    Disassembly Procedure LCD Module The LCD Module（for UX564 EH EI ）does not need to disassemble for repair – This part has been packed as module.
