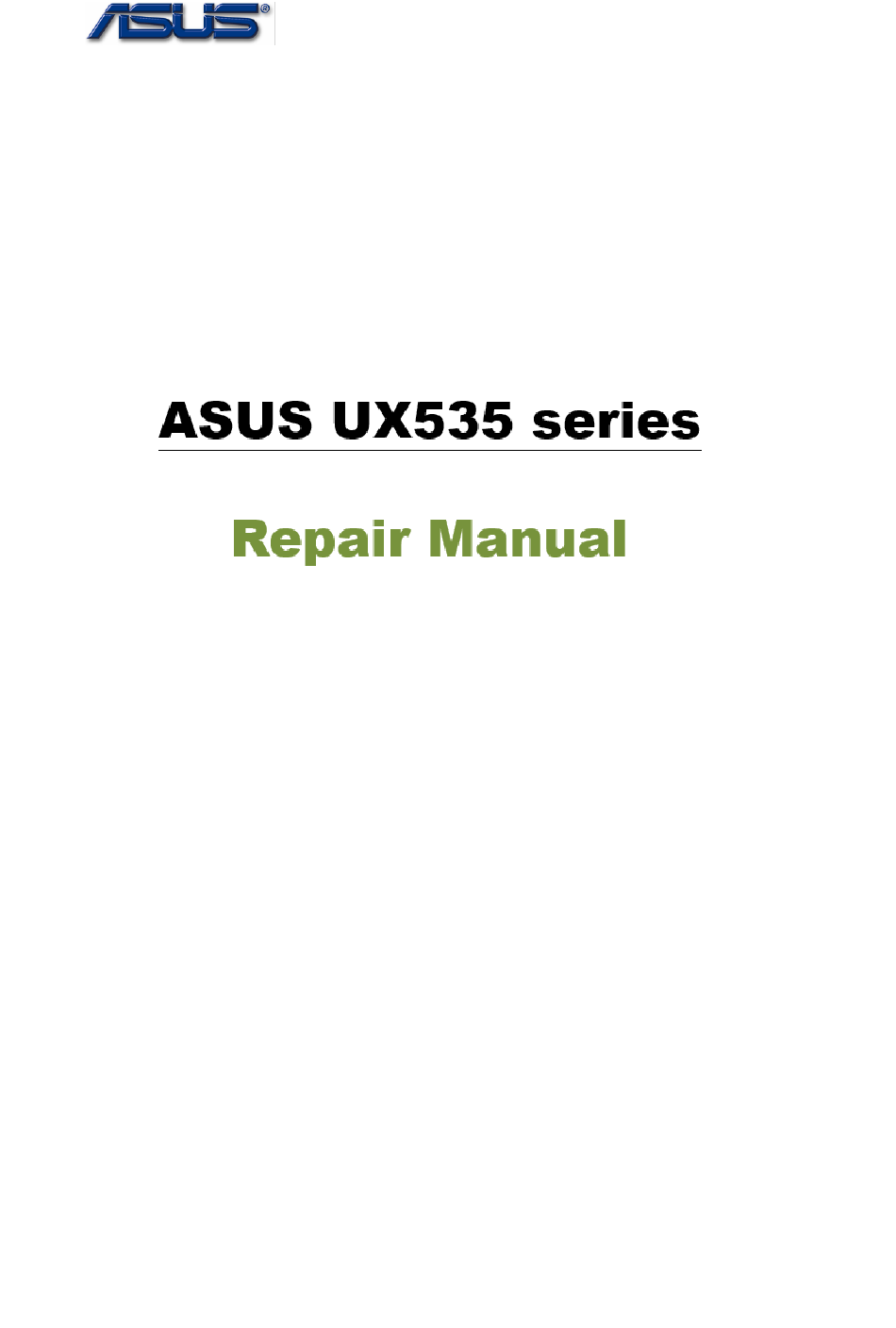

Asus UX535 Series Repair Manual

Asus UX535 Series Repair Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Disassembly Procedure
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UX535 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asus UX535 Series

Summary of Contents for Asus UX535 Series

  • Page 1 Disassembly Procedure...
  • Page 2 Disassembly Procedure...

  • Page 3: Service Overview

    Disassembly Procedure Service Overview...
  • Page 4 Disassembly Procedure Pre-repair checklist...
  • Page 5 Disassembly Procedure Repair Overview Please pay special attention to the cautions below to prevent any damages to the notebook and please be sure to select the appropriate tools described in this section to perform any services desired. Precautions Before you perform any service or repair on the notebook, please follow the steps below first. 1.
  • Page 6 Disassembly Procedure 9. Screw Appearance Criteria. If the screws have the following damaged appearance, please do not use. a. Shape deformed. b. Paint scratched off. c. Rusty. d. Damaged head – unable to drive in. e. Damaged unable to securely tighten. 10.
  • Page 7 Disassembly Procedure Appropriate Tools The illustrations below show the appropriate tools that should be used for the notebook’s service and repair. ➢ Cross Screwdriver Please accord to different screw specification to choose different screwdriver and head. Below photos are for reference only. Use a cross screwdriver to fasten/remove screws.
  • Page 8 Disassembly Procedure...
  • Page 9 Disassembly Procedure Bottom Case Module The illustrations below show how to remove the Bottom Case Module. Notice: After disassembling bottom case, if you want to replace any part, please be sure to disconnect the battery connector more than ten seconds to avoid damaging any part. Remove 2 Foot rubber from bottom case, remove 11 screws on the bottom case.
  • Page 10 Disassembly Procedure Remove bottom case. Snaps as below Parts: ⚫ Total screw * 13 ⚫ UX535LH-2G BOTTOM CASE AL*1 ⚫ UX535LH-2G BOTTOM FOOT REAR* 1 ⚫ (Actual part name depends on different SKU.)
  • Page 11 Disassembly Procedure Battery The illustrations below show how to remove the Battery. Remove Conductive screw. Screw tightening torque (Kg F-cm): 2.0KG±0.1kgf. Disconnect battery cable , remove 2 screws on the battery and remove the battery. Screw tightening torque (Kg F-cm): 2.0KG±0.1kgf. Parts: ⚫...
  • Page 12 Disassembly Procedure The illustrations below show how to remove the SSD. 1. Remove 1 screw from SSD and remove the SSD from mother board. Screw tightening torque (Kg F-cm): 2.0KG±0.1kgf Parts: ⚫ Total screw * 1 ⚫ UX535LH SSD M2 2280 P3X4(VAL) 512GB *1 ⚫...

  • Page 13: Speaker Module

    Disassembly Procedure Tear off the HDD Mylar. Parts: ⚫ Total screw * 0 ⚫ UX535LH HDD SATA3 2.5' 1TB5 *1 ⚫ UX562FD HDD RUBBER*1 ⚫ UX562FD HDD CONDUCTIVE TAPE *1 ⚫ UX562FD HDD FFC 10P 0.5MM,94.5 *1 ⚫ (Actual part name depends on different SKU.) Speaker Module The illustrations below show how to remove the Speaker Module.
  • Page 14 Disassembly Procedure Assembly Notice: Please well arrange the speaker cables and put it in the hook slot as below. Parts: ⚫ Total screw * 0 ⚫ UX535LH SPEAKER SET *1 ⚫ (Actual part name depends on different SKU.) Antenna Module The illustrations below show how to remove the WLAN Module.
  • Page 15 Disassembly Procedure Parts: ⚫ UX535LH WIFI MAIN ANTENNA *1 ⚫ UX535LH WIFI AUX ANTENNA* 1 ⚫ GX502GW RF CABLE MB1* 1 ⚫ (Actual part name depends on different SKU.) Thermal & Fan Module The illustrations below show how to remove the Thermal & Fan Module.
  • Page 16 Disassembly Procedure 1. Disconnect the fan cable from mother board and follow the number to remove 14 screws. Assembly Notice: follow the reverse numbers to lock screws. Screw tightening torque: 2.0KG±0.1kgf Screw tightening torque: 2.0KG±0.1kgf ⚫ Please use the correct technique of taking fans in order to avoid being out of shape.
  • Page 17 Disassembly Procedure Correct demonstration Wrong demonstration Parts: ⚫ Total screw * 14 ⚫ UX535LH TH MOD ASSY/*1 ⚫ UX535LH CPU FAN// * 1 ⚫ UX535LH GPU FAN// * 1 ⚫ (Actual part name depends on different SKU.) IO Board Module The illustrations below show how to remove the IO Board Module.
  • Page 18 Disassembly Procedure Remove 2 screws and take out the IO Board. Screw tightening torque: 2.5KG±0.2kg Parts: ⚫ Total screw * 8 ⚫ UX535LH_USB_HDMI_FPC R2.1//1.12*0.82,3L(1)0.3MM*1 ⚫ UX535LH HDMI BD//*1 ⚫ (Actual part name depends on different SKU.) Motherboard Module The illustrations below show how to remove the Motherboard Module. 1.
  • Page 19 Disassembly Procedure 2. Disconnect SD IO Cable and remove the mother board form keyboard module.
  • Page 20 Disassembly Procedure Parts: ⚫ Total screw * 6 ⚫ UX535LH MB._8G/I5-10300H//R2.0(V4G-MIC)(TYPEC)(TP)(TPM) *1 ⚫ (Actual part name depends on different SKU.) Notice: These pictures for your reference for mylar/gasket/sponge etc. of MB.
  • Page 21 Disassembly Procedure SD IO Board The illustrations below show how to remove the SD IO Board. 1. Remove 2 Screws from SD IO Board and remove it form Keyboard module. Screw tightening torque: 2.0KG±0.1kgf 2. Disconnect SD_IO cable from SD_IO Board. Parts: ⚫...
  • Page 22 Disassembly Procedure Touchpad Module & ScreenPad Module The illustrations below show how to remove the Touchpad Module & ScreenPad Module. 1. Tear off the UX535 CONDUCTIVE TAPE, remove 3 screws from TP Module. Notice: The CONDUCTIVE TAPE must be stuck well when assembled. Screw tightening torque (Kg F-cm): 2.0KG±0.1kgf.
  • Page 23 Disassembly Procedure Assembly the ScreenPad Module 1. Remove 4 Screws and disconnect 2 FPC from ScreenPad Board. 2. Disconnect ScreenPad touch Fpc from ScreenPad Module. Assembly Notice for ScreenPad SKU: 1. Insert the ScreenPad terminal connector first. 2. Then insert the motherboard side connector. 3.
  • Page 24 Disassembly Procedure Assembly notice: Please change new one, If FFC is damage during disassembly. Here are some samples of FFC damage: Parts: ⚫ Total screw * 3 ⚫ TOUCHPAD FOR X531*1 ⚫ UX535LH CLICKPAD FFC 8P 0.5MM,L112.4 *1 ⚫ (Actual part name depends on different SKU.)

  • Page 25: Keyboard Module

    Disassembly Procedure Keyboard Module The illustrations below show how to remove the Keyboard Module. Parts: ⚫ UX535LH-2G K/B_(US)_MODULE/AS//(BACKLIGHT) *1 ⚫ (Actual part name depends on different SKU.)
  • Page 26 Disassembly Procedure LCD Module The illustrations below show how to remove the LCD Module. 1. Remove Bezel from LCD Module. 2. Remove 8 screws from Hinge and take it off. Screw tightening torque: 2.0KG±0.1kgf 3. Remove two adhesive under the LCD panel and take the LCD panel away.
  • Page 27 Disassembly Procedure Notice : Please slowly pull the adhesive up about 30 degree. 4. Disconnect EDP cable from LCD panel. 30゜...
  • Page 28 Disassembly Procedure 5. Disconnect Camera FPC from Bazel Board and table the Bazel Board away. 6. Disconntect COMS cable from Bezel Board. 7. 7. Remove Camrea from A cover.
  • Page 29 Disassembly Procedure Parts: ⚫ Total screw * 8 ⚫ UX535LH-2G LCD BEZEL ASSY *1 ⚫ UX535LH LCD CMOS CABLE*1 ⚫ UX535LH LCD EDP CABLE FHD *1 ⚫ UX535LH HINGE L//JARLLY *1 ⚫ UX535LH HINGE R//JARLLY *1 ⚫ UX535LH_IR_CAMERA_FPC R2.0 *1 ⚫...
  • Page 30 Disassembly Procedure...
