Intellinet 561495-V2 Instructions Manual

Gigabit
PoE++ Injector
Instructions
Model 561495-V2 ( IPI-95G )
Placement
Place this injector on a clean, stable surface, or
mount it to a wall. For wall mounting, install
two screws into the wall at the distance of the
spaces on the back of the injector. Place the
injector over them and adjust until secure.

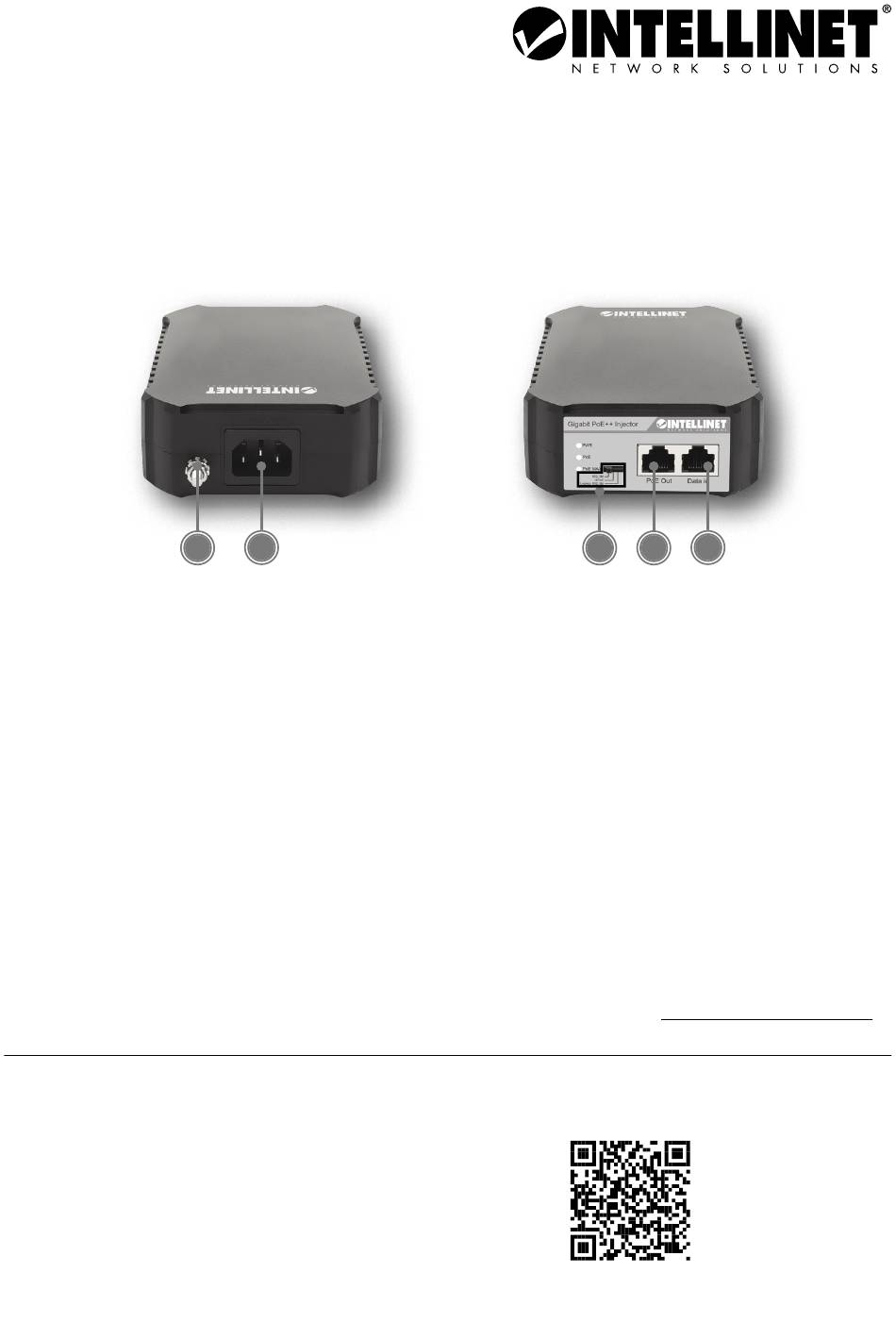

Setup
1 Wire the grounding terminal to an earth
grounding object to protect equipment
from external electrical surges.
2 Using Ethernet cable (Cat5e min.), connect
a LAN port on your non-PoE switch to
the Data In port on the injector.
3 Using Ethernet cable (Cat5e min.),
connect your Powered Device (PD;
IEEE 802.3bt/at/af compliant) to the
For additional benefits:
or go to: register.intellinet-network.com/r/561495
1 4
Scan to
register your
product warranty
Important: Read before use.
Importante: Leer antes de usar.
5
PoE Out port on the injector.
4 Use the included power cable to
connect the injector to an AC outlet.
5 Select the PoE standard of the connected
PD: 802.3bt (for fully compliant PDs);
UPoE (for 802.3at PDs that support
up to 60 W); Legacy 802.3bt (for PDs
not in full compliance with 802.3bt).
NOTE: if unsure as to the standard you
require, it is safe to try each setting.
LEDs: A lit PWR LED means power is being
supplied to the injector. A lit PoE LED means
the connected PD is getting power. A lit PoE
Max LED means PoE usage is at maximum.
For specifications, visit intellinet-network.com.
