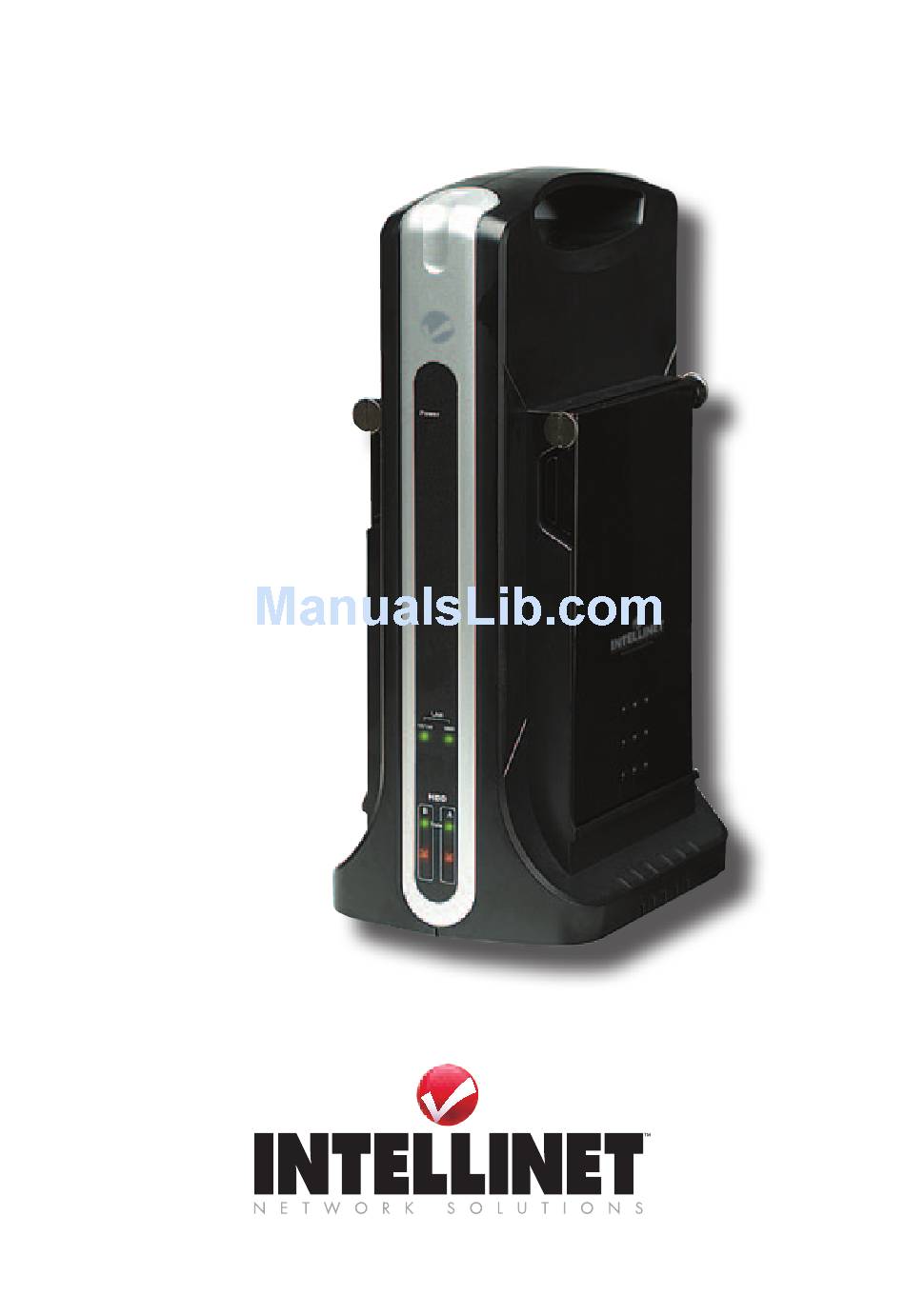

  • Page 1 GiGabit Sata NaS 2tb quick iNStall Guide Model 524469 INT-524469-QIG-1108-01...
  • Page 2 ™ Thank you for purchasing the INTELLINET NETWORK SOLUTIONS Gigabit SATA NAS 2TB, Model 524469. This quick install guide presents the rudimentary steps required to set up and operate this network-attached storage (NAS) device. For more detailed instructions and device specifications, refer to the user manual 1) on the CD enclosed with this product;...

  • Page 3: Hardware Installation

    hardware iNStallatioN To install a hard disk/drive in the Gigabit SATA NAS 2TB, follow the steps below. 1. Shut down the NAS and unplug the power cord from the AC outlet. 2. Remove the screws that secure the hard disk/drive cover to the side of the NAS device and slide the cover off.

  • Page 4: Reset Button

    1. Using Ethernet cable, connect the LAN (Ethernet) port to a PC, server, switch, hub or other network device on the LAN. 2. Connect the included power adapter to a surge protector. 3. If/when desired, connect the device port (A or B) to an external USB hard drive.

  • Page 5: Accessing The Nas

    acceSSiNG the NaS Mapping a Shared Folder Mapping your shared folder(s) to your computer makes accessing them easier. When a shared folder is mapped, it will appear as a drive letter (for example, “D:” or “E:”) on your computer. When you want to access that shared folder, you can simply go to My Computer and double-click on the drive letter.
  • Page 6 3. Select “Reconnect at logon” so you don’t have to repeat this process. Click “Finish.”...
  • Page 7 4. You will now see the Share as a drive in My Computer. You can access it by double-clicking on the drive. Enabling UPnP UPnP (Universal Plug and Play) is only available in Windows XP, Me and Vista. Though not required, enabling it makes configuration easier. 1.
  • Page 8 display the Windows Components Wizard screen. 3. Highlight “Network Services” and click “Details.” 4. Select “Universal Plug and Play” and click “OK.”...
  • Page 9 5. Select “Next” to continue. 6. After all the components are installed, click “Finish.”...

  • Page 10: Configuring The Nas

    You can access the configuration user interface by double-clicking on My Network Places on your desktop. Double-click on the UPnP device to gain access to the configuration page. NOTE: You may need to restart your computer and/ or refresh the view for the device to appear.
  • Page 11 • Users who’ve changed the default settings to a fixed IP setting can directly access the configuration page by entering the NAS’s fixed IP address in the browser. A window should appear asking for a username and password. Leave the User Name field blank and enter “admin”...
  • Page 12 INTellINeT NeTWoRK SolUTIoNS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
