classys Technology ULTRAFORMER MPT Operation Manual page 11

3-2-2. Hand-piece
One end of the Hand-piece is a connection output to attach the Cartridge. The other end
of the Hand-piece is connected to the insertion on the side of the Main Body. The Hand-
piece images are shown below in Figure 3.3. The Hand-piece trigger button is utilized to
apply the ultrasound shot.

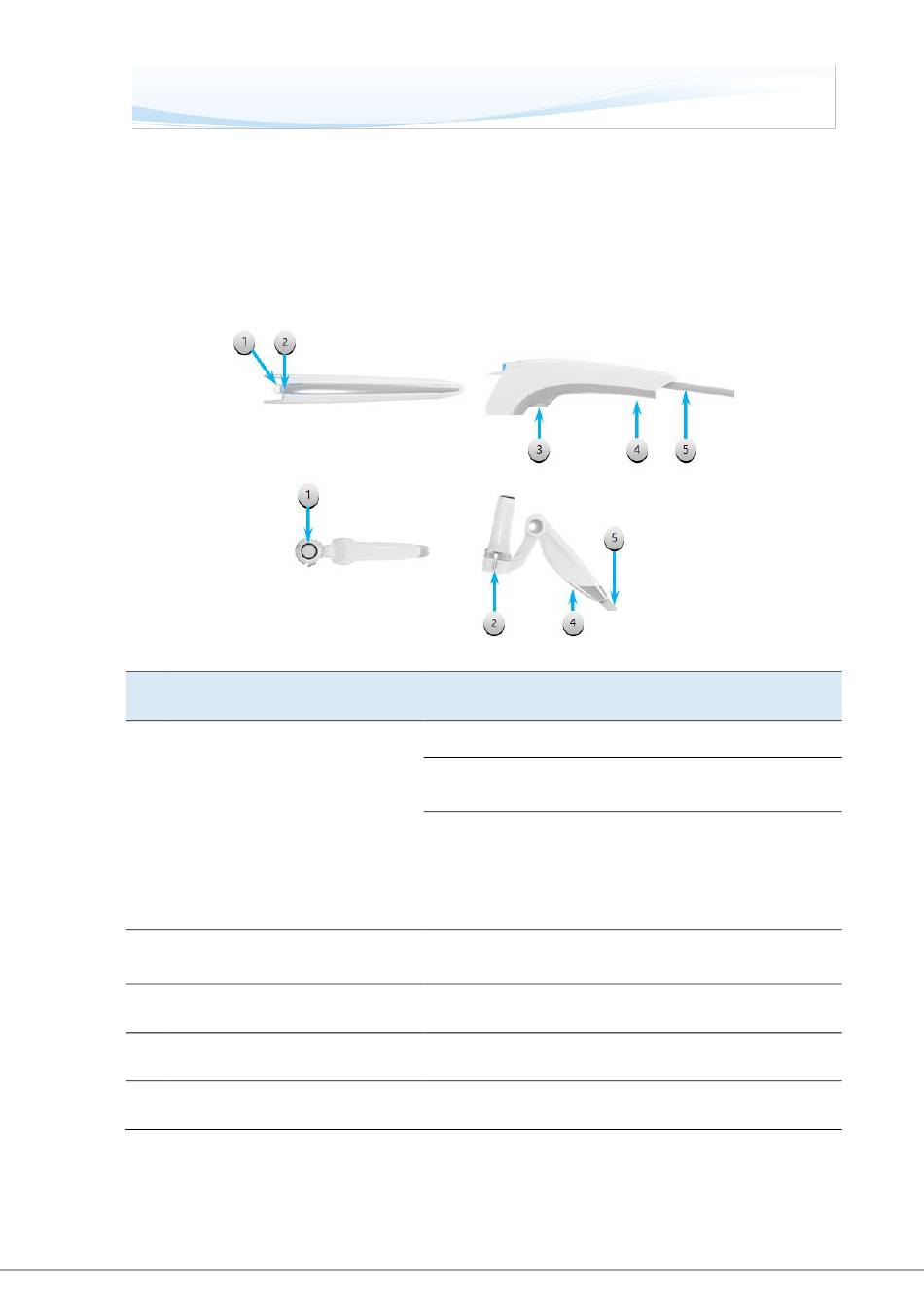

Figure 3.3 Hand-piece without cartridge inserted, top and side views
No. Item
1 LED indicator
2 Cartridge Disconnect Switch
3 Ultrasound Output Switch
4 Firmware connect cover
5 Hand-piece cable
ULTRAFORMER MPT
Red LED displayed when ultrasound energy is applied.
Green LED displayed when Cartridge connected to Hand-
piece and ready to apply shot.
Blue LED displayed when the Hand-piece is connected and
recognized by the device.
Blue LED blinks when the Hand-piece and device
connection is not efficient.
Laches on either side for disconnecting on the Hand-
piece
Hand-piece trigger to apply shot
Connect cover when firmware of Hand-piece changed
Cable for connecting Main Body and Hand-piece
Operation Manual
Description
| 8
