Summary of Contents for classys Technology Ultraformer

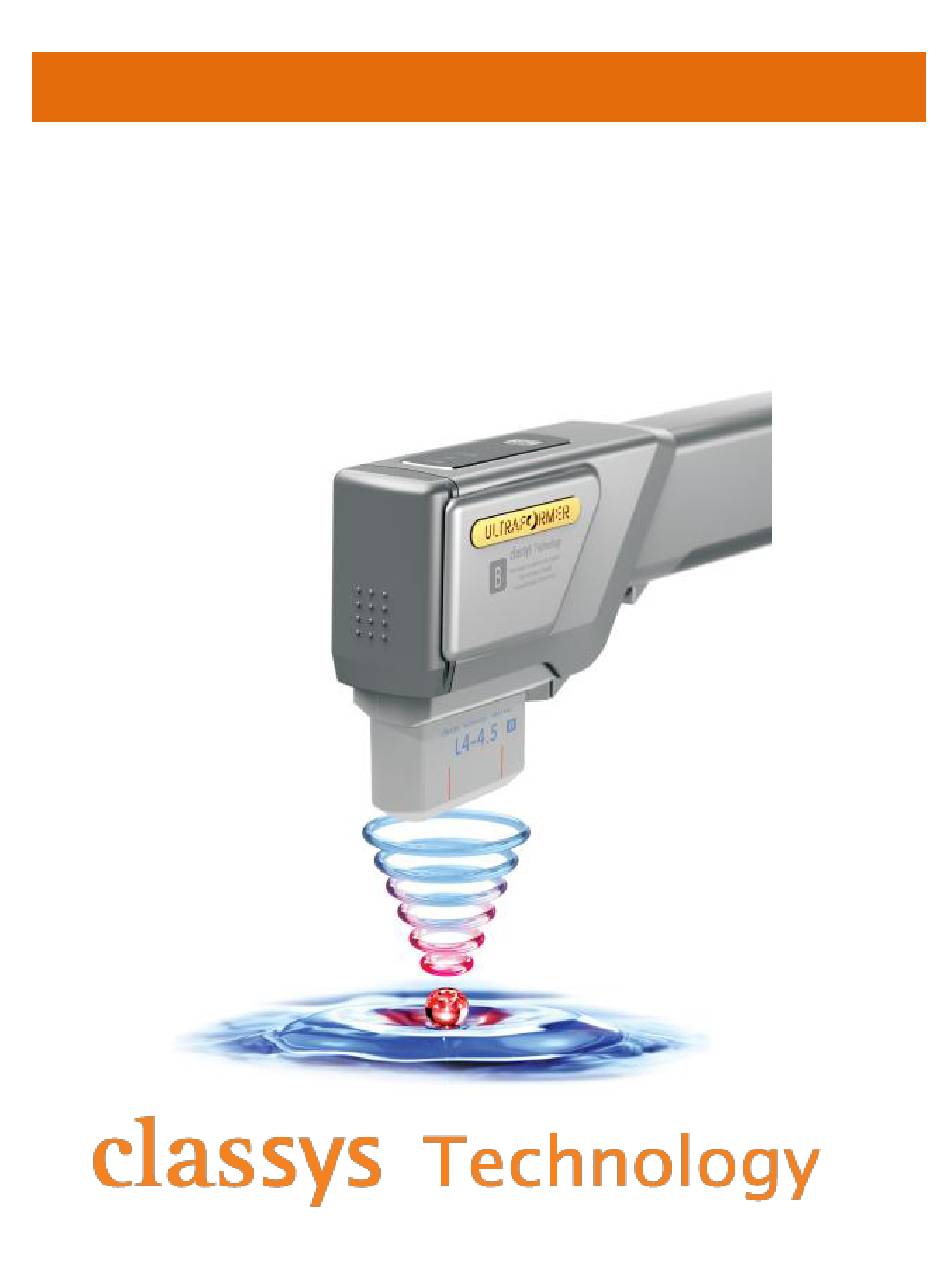

  • Page 1 Ultraformer ULTRAFORMERUSER’S MANUAL NO:CTI-V-0900...
  • Page 2 Always turn off the system when it is not in use. Never leave the system in ready mode unattended. Never allow untrained personnel to operate the system. Ultraformer has the ultrasound frequency of 7Mhz, 4Mhz, Which can cause human eye burns. Patient must wear eye goggles for all facial treatment.
  • Page 3 Contents Warning and Caution Components Installation Caution Operation Maintenance Trouble shooting Treatment guide...
  • Page 4 Components Ultraformer components Ultra former main body. Handpiece (A) Handpiece (B) AC Power Cord ( 5m )
  • Page 5 Introduction Ultraformer Front view Knob Handpiece Holder POWER KEY SWITCH EMERGENCY SWITCH 10.4“ LCD SCREEN...
  • Page 6 Introduction Side view Handpiece Jack Caster...
  • Page 7 Introduction Rear View POWER inlet : AC100V~240V...
  • Page 8 Introduction Handpiece SHOT : Ultrasound emission Red LED lights. TIP: when Cartridge loaded Blue LED READY: Ready for emission Green LED lights. Handpiece nonslip knob SHOOTING SWITCH : Ultrasound emission switch.
  • Page 9 Introduction Cartridge L4-4.5 Frequency : 4Mhz Depth : 4.5mm L7-3 Frequency : 7Mhz Depth : 3mm...
  • Page 10 Installation UltraFormer 1. The ultraformer system is designed for installation in an office or a clinic and requires minimal site preparation. 2. System transportation and installation is carried out by authorized technical Personnel who trained.
  • Page 11 Installation Power cable connecting POWER inlet : AC100V~240V...
  • Page 12 Installation Handpiece cable connecting L4-4.5 Plug your handpiece cable into proper color 4.5mm =>Blue plug...
  • Page 13 Installation Handpiece cable connecting L7-3 Plug your handpiece cable into proper color 3.0mm =>Green plug...
  • Page 14 Installation How to replace cartridge Open cover Push cartridge into the inside of cartridge Push cover down...
  • Page 15 caution Do not shoot without applying ultrasound gel.
  • Page 16 caution Applying ultrasound gel and shooting toward the bottom...
  • Page 17 caution Must Be using alcohol Cleaning the window film...
  • Page 18 Operation 1. Turn on the “key switch 2. Check skin with other ultrasound image viewer. 3. Set the proper parameter. 4. Apply the ultrasonic transmission get to skin 5. Contact the cartridge of handpiece to skin 6. Press the shot switch of handpiece. 7.
  • Page 19 Operation MAIN MENU SCREEN DISPLAY Adjust and Change Value SIGN FUCTION Adjust and Change the value of ‘POWER”, “PITCH”, “LENGTH” values.
  • Page 20 Operation Ultrasound “POWER “value setting SIGN FUCTION Ready for Ultrasound power output (From 0.1J ~ to1.0J) Standby for Ultrasound power output Ultrasound “PITCH” value setting SIGN FUCTION Set interval between ultrasound output (1.0mm, 1.5mm, 2.0mm) Standby interval between ultrasound output Ultrasound “Length”...
  • Page 21 Operation Continuous shooting Ultrasound power SIGN FUCTION Continuous shooting Ultrasound power when shooting switch “ON” Single shooting Ultrasound power when shooting switch “ ON” Total Ultrasound shot display SIGN FUCTION Current : Total shot from “Power on” to Power off” Total : Total accumulated shot Ultrasound selecting mode SIGN...
  • Page 22 사용 방법 Operation User setting value save SIGN FUCTION Save user setting value Preset value setting SIGN FUCTION Recall the saved value Total use of cumulative use of “A”,B” cartridge SIGN FUCTION Total use of cumulative use of “A”,B” cartridge from turn on to turn off.
  • Page 23 Maintenance Warning Always turn the system off and unplug the power cable before performing Maintenance procedures. And interior of the system or its components may be Serviced only by local authorized technical personnel. Main body cleansing The outer surface of the system may be wiped clean with a soft dry cotton clot h once every 10days.
  • Page 24: Corrective Action

    Troubleshooting Symptom Probable Cause Corrective action 1.Check if the power cable is Properly plugged into the 1.Bad connection of power wall outlet and main body's Display does cable socket. not work when 2.Emergency shut-off knob is 2.Turn off the system, turn the keys witch engaged the emergency shut-off knob...
  • Page 25 Ultraformer treatment guide. Section Type Joule Shot Forehead 0.3~0.4j 70~100 Cheek 4.5mm 0.6~0.8j 80~100 Cheek 0.6~0.8j 150~190 Total 300~400...
  • Page 26 Specification Energy Type High intensity focused Ultrasonic surgical unit Fluency 0.1~1J cm2 Length 5~25mm Spacing 1~2mm Frequency mode 4Mhz, 7Mhz Display LCD 10.4inch touch screen Electrical 220 VAC, 50/60H Requirement Electric power 1200VA consumption Dimensions 312(D)×537(W)×902(H) Weight 34kg...
