Operation & Maintenance Manual

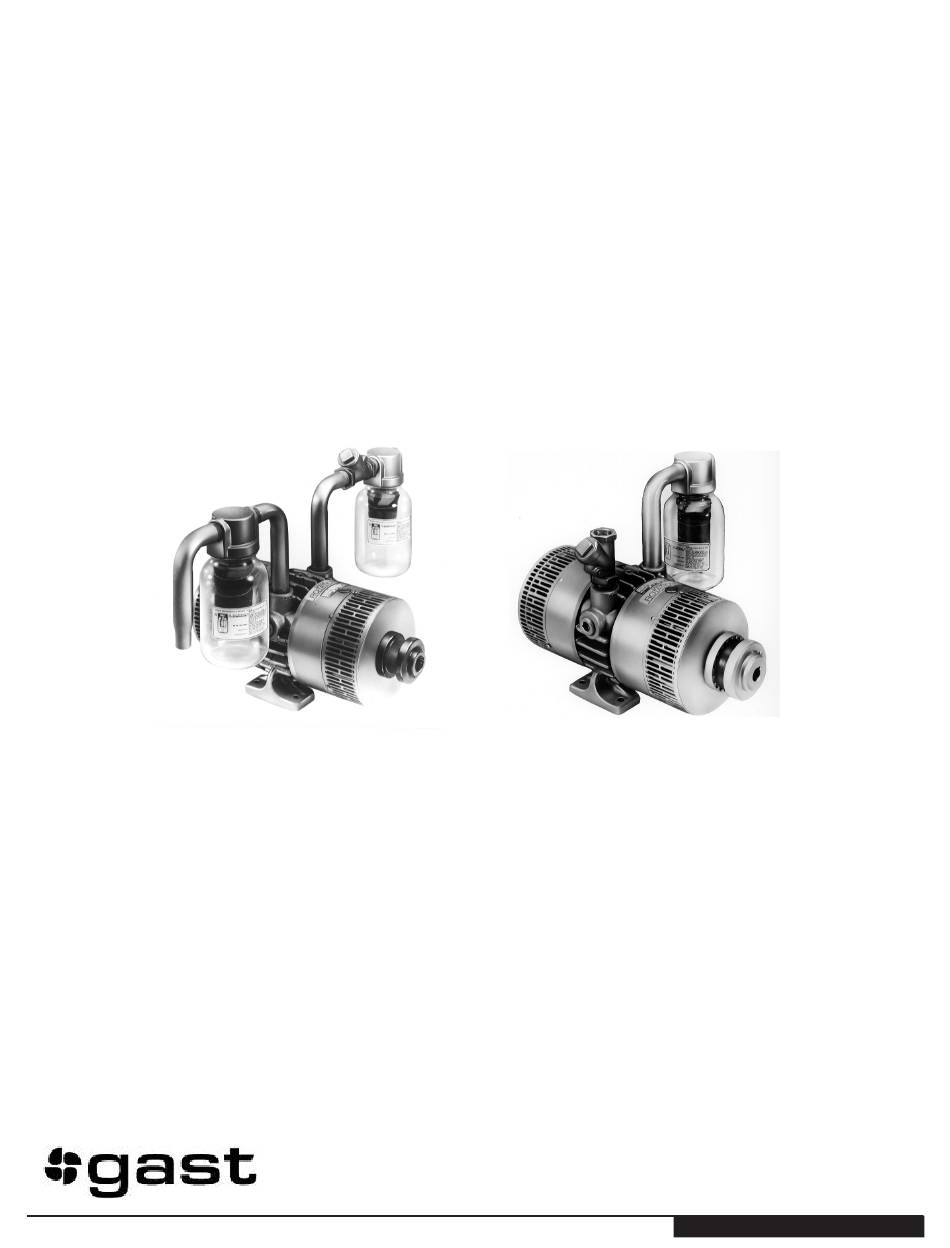

6066-V 103 Model Shown
6066 B60 Model Shown
www.gastmfg.com
ISO 9001 CERTIFIED
® Registered Trademark/™ Trademark of Gast Manufacturing Inc. ©Copyright 2025 Gast Manufacturing Inc. All Rights Reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gast 6066 Series
Summary of Contents for Gast 6066 Series
- Page 1 Oil-less Rotary Vane 6066 Series Vacuum Pumps and Compressors Operation & Maintenance Manual 6066-V 103 Model Shown 6066 B60 Model Shown www.gastmfg.com ISO 9001 CERTIFIED ® Registered Trademark/™ Trademark of Gast Manufacturing Inc. ©Copyright 2025 Gast Manufacturing Inc. All Rights Reserved.
-
Page 2: Table Of Contents
6066 Series Oil-less Vacuum Pumps and Compressors Dear Customer: Thank you for purchasing this Gast product . It is manufactured to the highest standards using quality materials . Please follow all recommended maintenance, operational, and safety instructions, and you will receive years of trouble-free service . -
Page 3: Product Use And Criteria
70-700 G425PL (Rev H) 6066 Series Oil-less Vacuum Pumps and Compressors PRODUCT USE AND CRITERIA Your safety and the safety of others is extremely important. • Pump only clean, dry air. • Operate at 32 ºF to 104 ºF (0 ºC to 40 ºC). -
Page 4: Mounting
70-700 G425PL (Rev H) 6066 Series Oil-less Vacuum Pumps and Compressors Correct installation is your responsibility. Motor Control It is your responsibility to contact a qualified Make sure you have the proper installation electrician to assure that the electrical conditions and that installation clearances do not installation is adequate and in conformance block air flow. -
Page 5: Extension Cords
70-700 G425PL (Rev H) 6066 Series Oil-less Vacuum Pumps and Compressors Model with a power supply cord: Extension cords: This product must be grounded. For either 120-volt Use only a 3-wire extension cord that has a 3-blade or 220/240-volt circuits connect power supply cord grounding plug. -
Page 6: Operation
70-700 G425PL (Rev H) 6066 Series Oil-less Vacuum Pumps and Compressors OPERATION MAINTENANCE WARNING WARNING Injury Hazard Install proper safety guards as needed. Pumps with glass jars need safety guards to protect against Electrical Shock Hazard breaking glass. Use only recommended air handling parts Disconnect electrical power supply cord before performing maintenance on this product. -
Page 7: Shutdown Procedures
70-700 G425PL (Rev H) 6066 Series Oil-less Vacuum Pumps and Compressors Check that all external accessories such Check intake and exhaust filters after first 500 as relief valves and gauges are attached hours of operation. Clean filters and determine how... -
Page 8: Service Kit Installation
70-700 G425PL (Rev H) 6066 Series Oil-less Vacuum Pumps and Compressors Disassembly: SERVICE KIT INSTALLATION 1. Remove the dead end shroud, fan, and fan spacer. WARNING 2. Use a wheel puller to remove the dead-end plate and bearing from the pump body. Note the direction of the bevel edge on the vane. - Page 9 70-700 G425PL (Rev H) 6066 Series Oil-less Vacuum Pumps and Compressors Major Rebuild: 1. Follow Disassembly steps 1-4. 2. Remove the drive end cap. Use a wheel puller to remove the drive-end plate and bearing from the body. Do not remove or damage the dowel pins in the body.
-
Page 10: Parts And Ordering Information
70-700 G425PL (Rev H) 6066 Series Oil-less Vacuum Pumps and Compressors EXPLODED VIEW, PARTS, AND ORDERING INFORMATION ∆ Denotes parts included in the Service Kit. Parts listed are for stock models. For specific OEM models, please consult the factory. When corresponding or ordering parts, please give complete model and serial numbers. -
Page 11: Warranty
Gast finished products, when properly installed and operated under normal conditions of use, are warranted by Gast to be free from defects in material and workmanship for a period of twelve (12) months from the date of purchase from Gast or an authorized Gast Representative or Distributor. In order to obtain perfor-... -
Page 12: Troubleshooting Chart
