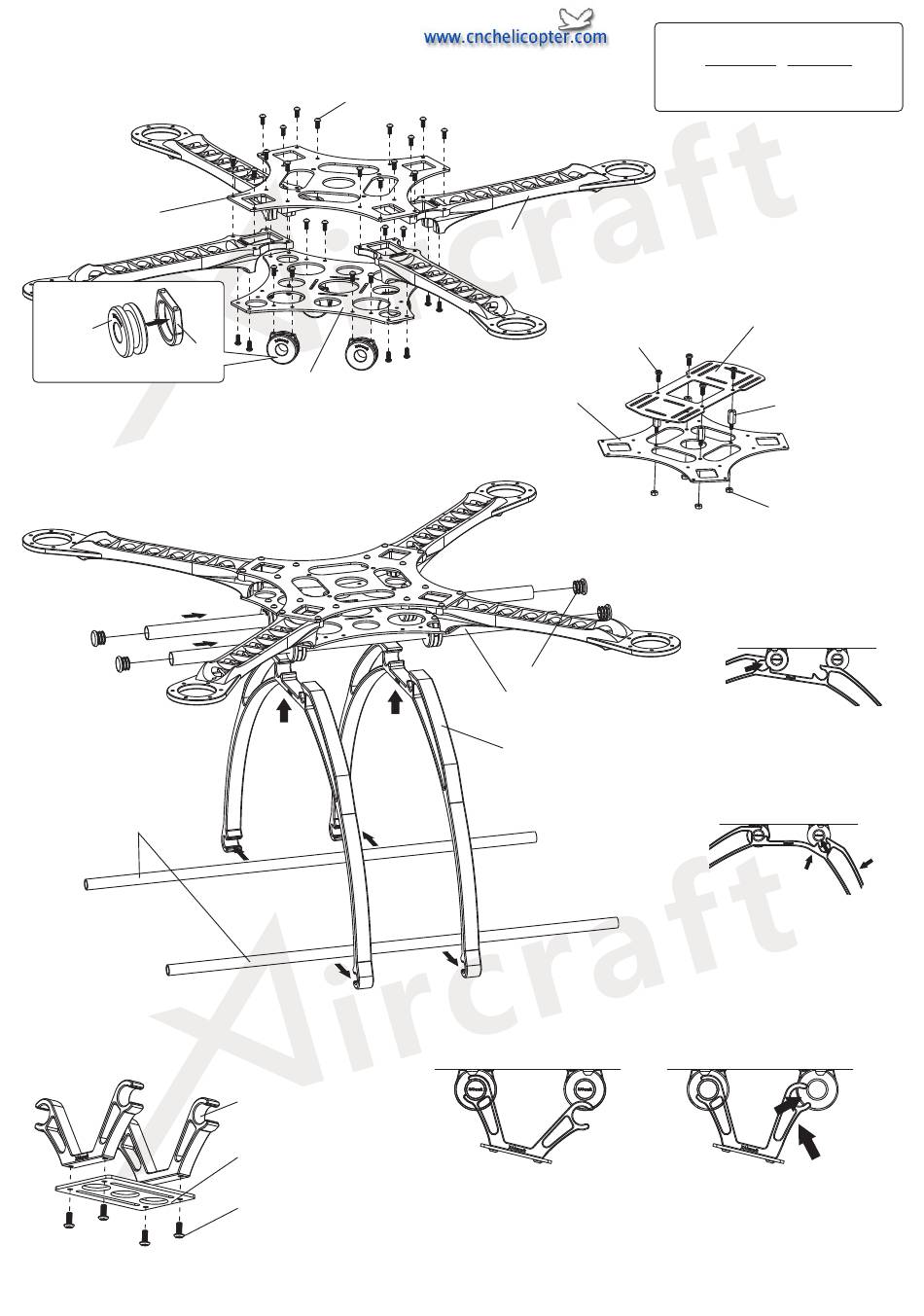

Xaircraft DIY X4 Assembly Instructions

XAircraft DIY X4/X8 配件安装说明书
XAircraft DIY X4/X8 Parts
DIY-XF - F5001
X4/X8 机身上板
X4/X8 Fuselage Upper Plate
L3004 ×4
挂载杆固定胶
Load Mounting
Pipe Fixer
L3003
挂载杆固定件
Load Mounting Pipe Mount
X650起落架安装
X650 Landing Gear Assembly
L3001
起落架横杆
Landing Gear Skid Pipe
电池固定板安装
Batter y Mount Assembly
Assembly
M(DIY) - M6001
M2.5×6 圆头内六角螺丝
M2.5×6 Socket Screw
×4
DIY-XF - F4002
X4/X8 机身下板
X4/X8 Fuselage Lower Plate
F3010 ×2
挂载固定件
Load Hanger
DIY-XF - F3005
电池固定板
Batter y Mounting Plate
M - M6001 ×4
M2.5×6 圆头内六角螺丝
M2.5×6 Socket Screw
×32
F4005 ×4
机身臂
Frame Arm
DIY-XF - F5001
X4/X8 机身上板
X4/X8 Fuselage Upper Plate
L3002
挂载杆(含管塞)
Load Mounting Pipe(with Cork)
L3005
X650 Value 起落架
X650 Value Landing Gear
步骤1 Step1
先扣入一边的挂载杆，扣入时注意用力，以免损
坏挂载固定件。
Assemble one side of hanger.
DO NOT OVER-EXERT TO AVOID DAMAGE.
编号含义
The Meaning of Number
DIY-XF-F4004
袋编号或小袋编号
Packet Number or
Sub Packet Number
设备承载板安装
Device Mounting Plate Assembly
M - M4003 ×4 DIY-XF - F4004
M3×8 尼龙螺丝 设备承载板
M3×8 Nylon Screw Device Mounting Plate
起落架安装步骤
Landing Gear Assembly STEPS
步骤1 Step1
先扣入一边的挂载杆，扣入时注意用
力，避免损坏。
Assemble one side. DO NOT OVER-
EXERT TO AVOID DAMAGE.
步骤2 Step2
弯曲起落架，将另一边也扣入挂载杆。
弯曲时注意用力，以免损坏起落架。
Bend the other side of landing gear
as shown in the figure, and
assemble it.
步骤2 Step2
使挂载固定件形变，并将其压入挂载杆。注意用
力避免损坏挂载固定件。Assemble the other
side of hanger as shown in the figure.
DO NOT OVER-EXERT TO AVOID DAMAGE.
物品编号
Product Number
M - M4004 ×4
M3x12 尼龙支柱
M3x12 Nylon Pillar
M - M4005 ×4
M3 尼龙螺母
M3 Nylon Nut
施力点
Force Point
施力点
Force Point
施力点
Force Point
2011-11 v1.0
