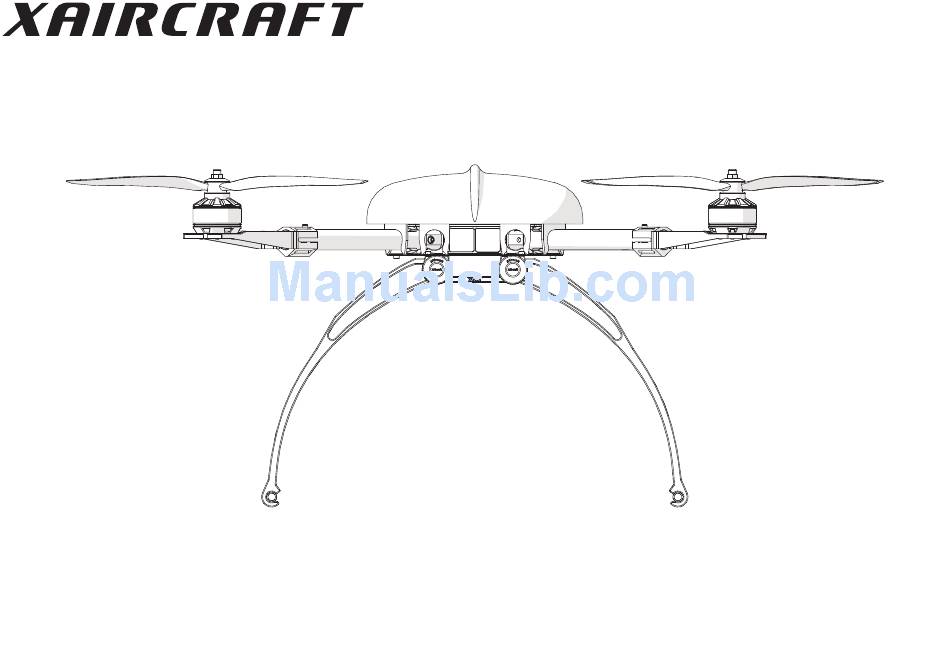

- Page 1 安装说明书 INSTRUCTION MANUAL V 1.0 在使用XAircraft X650 Pro之前，请仔细阅读此说明书。 Read the manual carefully before using XAircraft X650 Pro. ©2013 XAircraft. All Rights Reser ved.
-
Page 2: Table Of Contents
目录 Table of Contents 免责声明 Disclaimer 安全注意事项 Safety Cautions 安装须知 Notice for Assembly 产品特性 Features 机身臂安装 Frame Arm Assembly 机架安装 Frame Assembly 机架折叠 Frame Folding 起落架安装 Landing Gear Assembly 电池挂载架安装 Batter y Mounting Assembly 螺旋桨安装 Propeller Install 零部件清单 Parts List 附录: SuperX设备安装示例... -
Page 3: Disclaimer
安全注意事项 SAFETY CAUTIONS X650 Pro gives users an enjoyable fly experience but is potentially dangerous at the same time. X650 Pro在给您带来快乐飞行体验的同时也潜藏着一定的危险。X650 Pro在飞行时具有一定的飞行 The blades rotate up to 4000RPM which can cause serious injuries or property damage. Safety 速度，且螺旋桨转速高达4000RPM以上，具有极大的破坏力。无论您是初学者还是经验丰富的玩... -
Page 4: Notice For Assembly
安装须知 Notice for Assembly 产品特性 Features 自备工具 Tools Required for Assembly 六角螺丝刀 Hexagon Screw Driver 2.0mm 十字螺丝刀 880mm 570mm Cross Screw Driver 尖嘴钳 Sharp nose pliers 标志含义 The Meaning of Symbols 不正确的操作，可能导致设备损坏。 Incorrect operation may result in damage. 270mm 不正确的操作，可能导致设备损坏或人员受伤。 187mm WARNING 警... -
Page 5: Frame Arm Assembly
机身臂安装 Frame Arm Assembly P7001 无刷电机 Brushless Motor M - M7003 × M - M7002 M - M7005 F2-F7008 M3×6 圆帽内六角螺丝 M2.5 20 杯头内六角螺丝 × 6 2.5 0.5mm 垫片 × × M3×6 Socket Screw 电机夹头 M2.5×20 Socket Screw 6×2.5×0.5mm Washer Motor Mount M - M7007 M2.5 22 杯头内六角螺丝... -
Page 6: Frame Assembly
机架安装 Frame Assembly 3pin信号线插头 3pin Signal Cable FRONT 前 方 F2-F7017 ×4 F3 - F3011 ×2 机身支柱 机身固定件1 Frame Prop Fuselage Strut 1 XT60 机身杆装配(第3页) F3 - F3012 ×2 Frame ArmAssembly(Page 3) 机身固定件2 线路不能经过虚线 Fuselage Strut 2 框区域。 Wiring not allowed E7008 in the dotted block. -
Page 7: Frame Folding
机架安装 Frame Assembly 机架折叠 Frame Folding F3007 机身盖 M - M7004 ×4 Frame Cover M3×8 圆头内六角螺丝 M3×8 Socket Screw M - M7006 ×4 6x3x1.5 尼龙垫片 M - M7001 ×12 6x3x1.5 Nylon Wahser M2.5×6 杯头内六角螺丝 M2.5×6 Socket Screw F1 - F7001C 卸下... -
Page 8: Landing Gear Assembly
起落架安装 Landing Gear Assembly M - M7001 ×4 ×8 F2 - L3004 M2.5×6 杯头内六角螺丝 先扣入一边的挂载杆，扣入时注意用力，避免损坏。 挂载杆固定胶 M2.5×6 Socket Screw Assemble one side. DO NOT OVER-EXERT TO AVOID Load Mounting Pipe Fixer DAMAGE. F2 - L3003 挂载杆固定件 Load Mounting Pipe Mount 弯曲起落架，将另一边也扣入挂载杆。弯曲时注意用力，以免损... - Page 9 电池挂载架安装 Batter y Mounting Assembly 先扣入一边的挂载杆，扣入时注意用力，以免损坏 电池安装 F3 - F3010 挂载固定件。 挂载固定件 Batter y Installation Assemble one side of hanger. Load Hanger DO NOT OVER-EXERT TO AVOID DAMAGE. F1 - F3005C 电池板 Batter y Mounting Plate 电池 M - M7001 ×4 Batter y M2.5×6 杯头内六角螺丝...
- Page 10 螺旋桨安装 Propeller Assembly 螺旋桨印有文字面朝上，并确保螺旋桨旋转时方向正确。 可从电机包装里找到。 Logo of blade upward and ensure the rotation These parts are in the direction is correct. motor box. P7002-A APC 11x47 螺旋桨(正) APC 11x47 SF Blade P7002-B APC 11x47 螺旋桨(反) APC 11x47 SFP Blade P7002-B P7002-A APC 11x47 螺旋桨(反) APC 11x47 螺旋桨(正)
-
Page 11: Parts List
Name Packet Product Code Amount Packet Product Code Amount F7001C 机身上板 Fuselage Upper Plate P7001 Xaircraft 无刷电机 Xaircraft Brushless Motor F7002C 机身下板 Fuselage Lower Plate L3001C 起落架横杆 Landing Gear Skid Pipe F3005C 电池板 Batter y Mounting Plate L3002C 挂载杆(管塞) Load Mounting Pipe(with Cork) L1010 扎带... - Page 12 《XAircraft SuperX 用户手册》。 Please visit http://www.xaircraft.com and download <XAircraft SuperX User Manual>, then do the wiring following the manual. XAircraft SuperX 用户请参照下图安装您的SuperX。 This diagram shows how to install the Xaircraft SuperX Flight Controller. FRONT 前 方 LED指示灯应朝下方安装以便在飞行中辨别 LED must be faced down so you can take a look at it.
- Page 13 本说明书最终解释权归XAircraft所有 XAircraft has the final power of interpretation on this manual.
