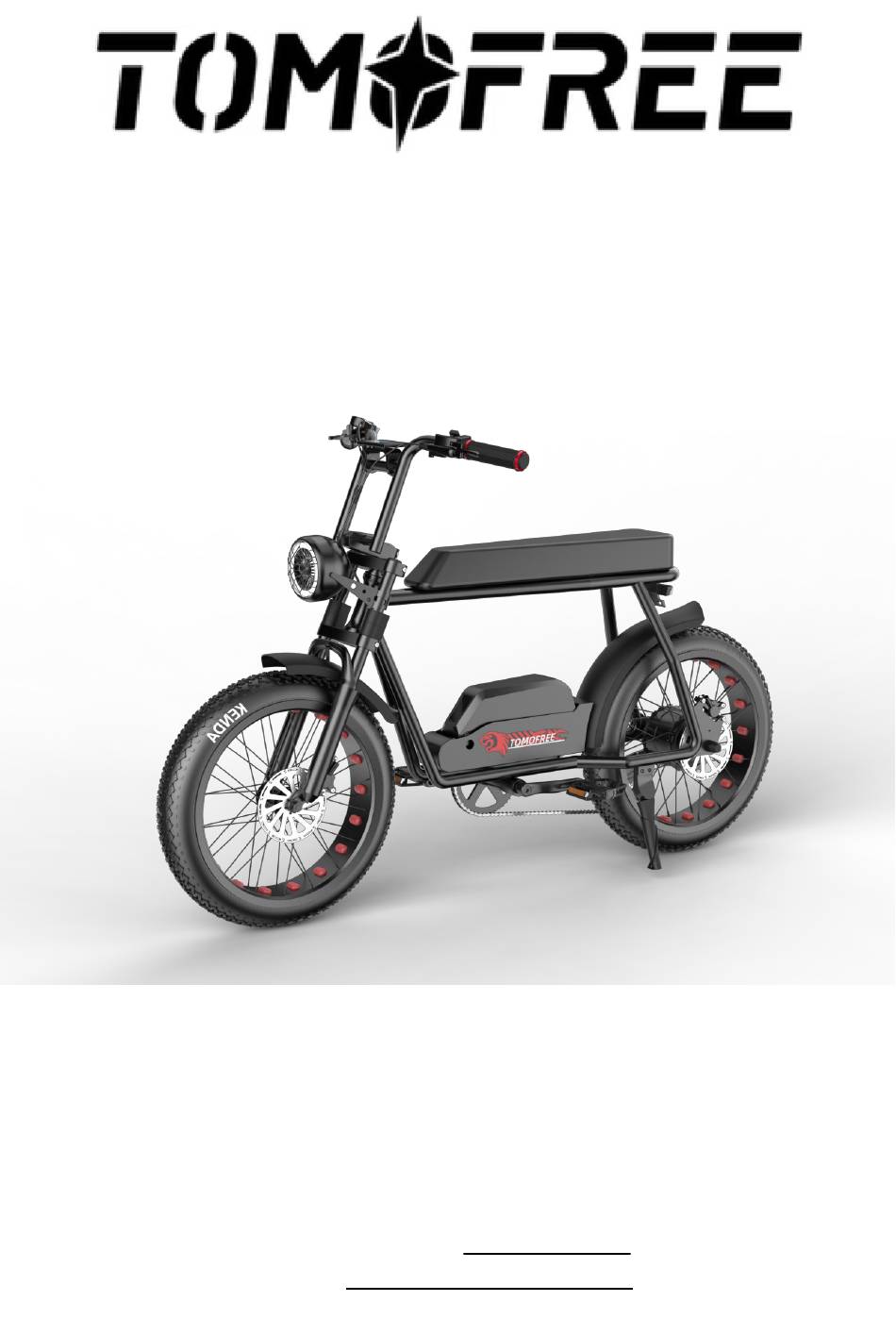

User Manual
Tomofree FG20 electric bike
Thank you for purchasing the Tomofree FG20 Electric Bicycle.
We take pride in bringing you a quality product that will offer riding of enjoyment.
Please read and understand this manual fully before assembling and riding your
electric bicycle
.
We are here to help
Official website: tomofree.com
Email: support@tomofree.com
Advertisement
Table of Contents
Related Manuals for Tomofree FG20
Summary of Contents for Tomofree FG20
- Page 1 User Manual Tomofree FG20 electric bike Thank you for purchasing the Tomofree FG20 Electric Bicycle. We take pride in bringing you a quality product that will offer riding of enjoyment. Please read and understand this manual fully before assembling and riding your...
-
Page 2: Table Of Contents
TABLE OF CONTENTS USING THIS MANUAL..................2 GENERAL SAFETY....................2 CHARGER SAFETY INFORMATION ............. 8 SPECIFICATIONS ....................9 PRODUCT OVERVIEW ...................10 INSTALLATION AND USAGE INSTRUCTION ..........11 LIMITED WARRANTY ..................15... -
Page 3: Using This Manual
Keep this manual, along with any other documents that were included with your E-bike, for future reference, however all content in this manual is subject to change or withdrawal without notice. Tomofree makes every effort to ensure the accuracy of its documentation and assumes no responsibility or liability if any errors or inaccuracies appear within. - Page 4 e) This equipment is not intended to be used at ambient temperatures less than -4°F (-20°C) or above ambient temperatures of 113°F (45°C). The battery is intended to be charged when the ambient temperature is between 32°F (0°C) and 104°F (40°C). Never charge the battery when ambient temperatures are outside this range.
-
Page 5: Wet Weather
- Always be a defensive rider. Always assume that others do no see you and expect the unexpected. - Always be aware of your surrounds. Be alert and responsive to: 1) Motor vehicles of all types and in all directions. 2) Unexpected movement of obstacles. - Page 6 The replacement of original components or installation of third-party accessories or accessories not from Tomofree explicitly recommended is at your own risk. It may create an unsafe riding condition, damage property, or result in serious injury or death.
-
Page 7: General Operating Rules
your e-bike to a certified, reputable bike mechanic to have the brakes repaired if you meet with a problem. General Operating Rules Notice: Pay special attention to all the general operating rules below before operating your e-bike. - When riding, obey the same road laws as all other road vehicles as applicable by law in your area. - Page 8 Riding an e-bike and controlled substances do not mix. Never operate an e-bike while under the influence of alcohol, drugs, or any substance or condition. If you have an impairment or disability such as a visual impairment, hearing impairment, physical impairment, cognitive/language impairment, a seizure disorder, or any other physical condition that could impact your ability to safely operate a vehicle, consult your physician before riding any e-bike.
-
Page 9: Charger Safety Information
Tomofree Support. Charge the battery only with the charger originally supplied with the bike from Tomofree, or a charger purchased directly from Tomofree. Never use an aftermarket charger, which can result in damage, serious injury, or death. -
Page 10: Specifications
SPECIFICATIONS electric bicycle Model Name Tomofree FG20 Max. Load Capacity 330lbs. / 150 kg MAX. Speed 15 MPH Range Average Per Charge 35-40 Miles Motor 1200W Brushless Hub Motor Battery 48V 18Ah Li-ion Battery Display LCD display Frame Aluminum alloy Tires 20*4"... -
Page 11: Productoverview
PRODUCTOVERVIEW... -
Page 12: Installation And Usage Instruction
INSTALLATION AND USAGE INSTRUCTION NOTICE: The following steps are only a general guide to assist in the assembly of your electric e-bike and are not a complete or comprehensive manual of all aspects of assembly, maintenance, and repair. Step 1: Unpack the e-bike. Open the package box. - Page 13 Step 3: Handlebar assembly. 01.Remove front 4 bolts from stem cover then remove the stem cover. 02.Mount handbar onto then stem, then replace stem cover and tighten all 4 bolts. 03.Adjust handlebar according to your needs, then insure all bolts are tightened firmly. Step 4: Front light &...
- Page 14 Step 5: Pedal & stand fixing and installation When you lock the brake, there should be at least 2cm distance between the brake lever and the handle...
-
Page 15: Parking, Storage, And Transport
The DISPLAY: The display will show the current speed, battery power, total mileage, single mileage, battery voltage. Press the "M" button to toggle the display content BAT: battery voltage ODO: total mileage TRIP: single mileage Parking, Storage, and Transport Please follow these basic parking, storage, and transport tips to ensure your e-bike is well cared for on and off the road. -
Page 16: Limited Warranty
And after obtaining our verification and confirmation, send them back, otherwise Tomofree has the right to deny this warranty Legitimacy. We will inspect the product as soon as possible after receiving it,... - Page 17 Parts Warranty Regulations Part Name Service Term Scope of the warranty Handling method Motor 12 months Quality issues & Free replacement Performance failure Battery 12 months 1-Month Quality issues Free replacement * Endurance Controller 12 months Performance failure Free replacement Frame 12 months Quality issues...
- Page 18 Tomofree Electric Bike for Adults, 1200W Motor 48V 18Ah Removable Battery,20'' Fat Tire Ebike 15.5MPH Snow Beach Mountain Electric Bicycle, Hydraulic Brake,Dual Suspension,7 Speed UL Certified...
- Page 19 Email: support@tomofree.com...
