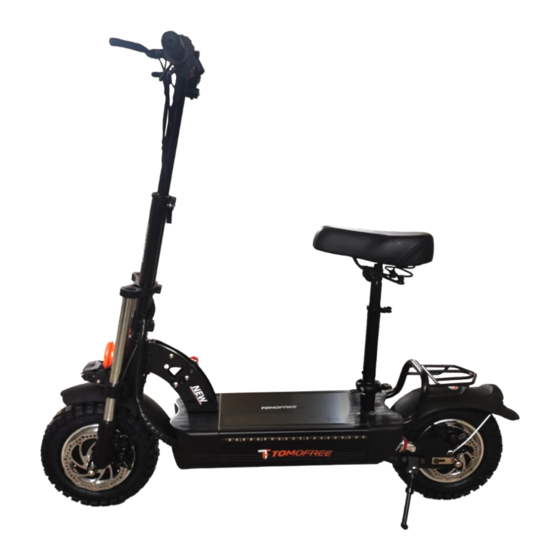

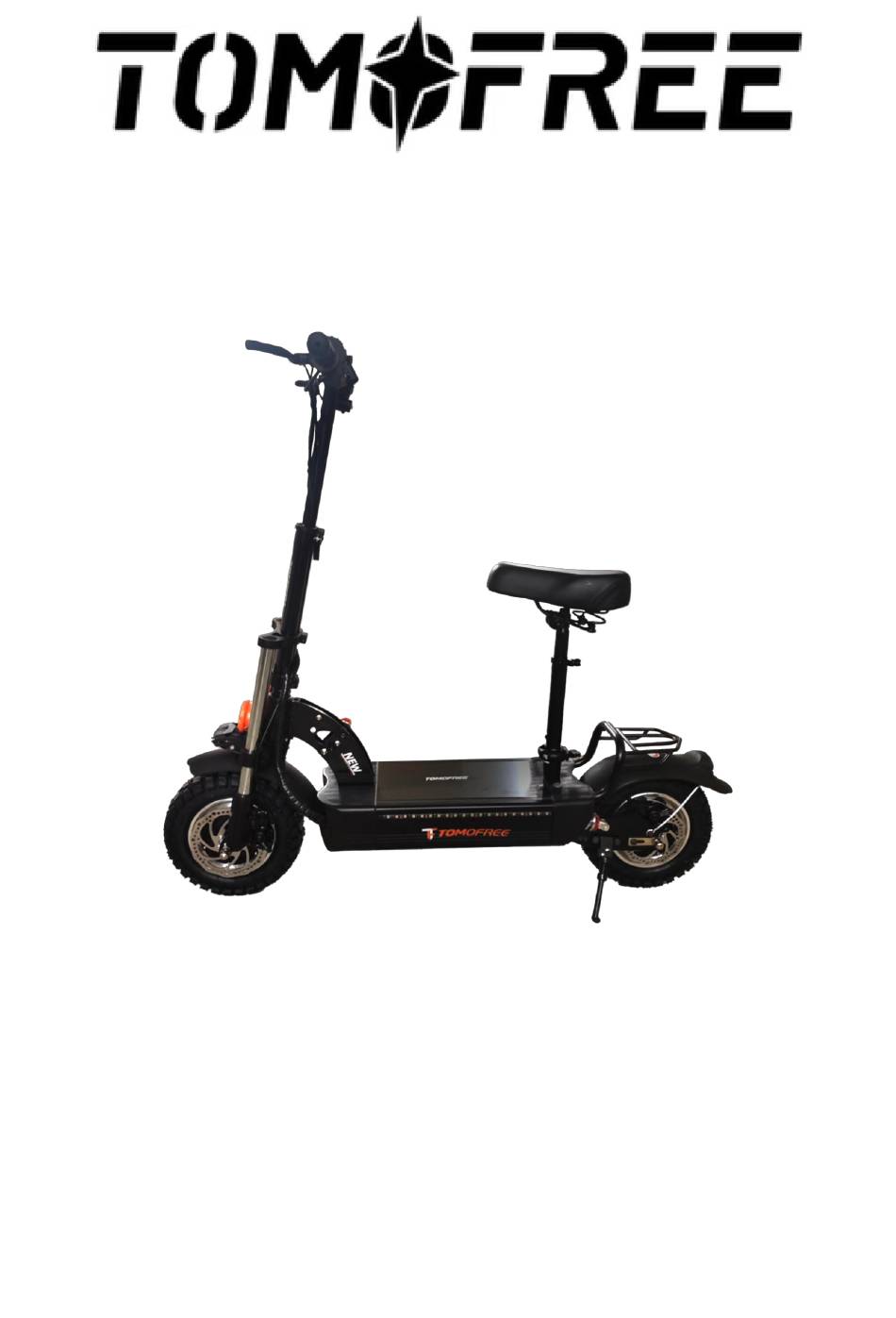

- Page 1 User Manual Tomofree MS11 Electric Scooter Thank you for purchasing the Tomofree MS11 electric scooter. We take pride in bringing you a quality product that will offer riding of enjoyment. Please read and understand this manual fully before assembling and riding your...
-
Page 2: Table Of Contents
TABLE OF CONTENTS USING THIS MANUAL..................2 GENERAL SAFETY....................2 CHARGER SAFETY INFORMATION ............. 8 SPECIFICATIONS ....................9 PRODUCT OVERVIEW ...................10 INSTALLATION AND USAGE INSTRUCTION ..........11 LIMITED WARRANTY ..................16... -
Page 3: Using This Manual
Keep this manual, along with any other documents that were included with your scooter, for future reference, however all content in this manual is subject to change or withdrawal without notice. Tomofree makes every effort to ensure the accuracy of its documentation and assumes no responsibility or liability if any errors or inaccuracies appear within. - Page 4 e) This equipment is not intended to be used at ambient temperatures less than -4°F (-20°C) or above ambient temperatures of 113°F (45°C). The battery is intended to be charged when the ambient temperature is between 32°F (0°C) and 104°F (40°C). Never charge the battery when ambient temperatures are outside this range.”...
- Page 5 - conditions increase the risk of accident. - Always be a defensive rider. Always assume that others do no see you and expect the unexpected - - Always be aware of your surrounds. Be alert and responsive to: 1) Motor vehicles of all types and in all directions. 2) Unexpected movement of obstacles.
- Page 6 NOTICE: If you do not have the experience, skill, and tools to complete assembly and fit, please feel free to contact Tomofree for support Mandatory Equipment and Use Locations Before riding, ensure you have all required and recommended safety equipment and are following all laws pertaining to use an electric scooter in your region.
- Page 7 Tomofree explicitly recommended is at your own risk. it may create an unsafe riding condition, damage property, or result in serious injury or death. Safety Check Before Each Ride Always check the condition of your scooter before you ride in addition to having regular maintenance performed.
- Page 8 - When braking, apply the rear brake first, then the front brake, lf brakes are not correctly applied, they may lead to you losing control and/or falling. - Maintain a comfortable stopping distance from all other objects, riders, and vehicles. Safe braking distances are based on factors such as road surface and light conditions among other variables.
-
Page 9: Charger Safety Information
Tomofree Support. Charge the battery only with the charger originally supplied with the scooter from Tomofree, or a charger purchased directly from Tomofree. Never use an aftermarket charger, which can result in damage, serious injury, or death. -
Page 10: Specifications
SPECIFICATIONS Model Name Tomofree MS11 Electric scooter Max. Load Capacity 400lbs. / 181 kg MAX. Speed 40 MPH Range Average Per Charge Up to 40 Miles Motor 1200W Brushless Hub Motor *2 Battery 48V 20Ah Li-ion Battery Display LCD display... -
Page 11: Product Overview
PRODUCT OVERVIEW... -
Page 12: Installation And Usage Instruction
INSTALLATION AND USAGE INSTRUCTION NOTICE: The following steps are only a general guide to assist in the assembly of your electric scooter and are not a complete or comprehensive manual of all aspects of assembly, maintenance, and repair. Step 1: Unpack the scooter. Open the package box. - Page 13 Step 3: Unfold the handlebar and rotate the turn buckle to hold it. Step 4: Unfold the saddle and secure the folding buckle Step 5: Loosen the buckle and adjust the handlebar to a suitable height Step 6: Insert the key, turn clockwise to turn on the scooter, test whether the lights, horns, brakes, etc.
- Page 14 When you lock the brake, there should be at least 2cm distance between the brake lever and the handle Step 7: Adjust the speed gear to "1", then slowly turn the throttle, the scooter will move forward slowly, after adapting to the speed, you can slowly accelerate until you fully adapt and control the scooter How to remove the saddle: Fold the saddle, unscrew the screw and you can pull the saddle out of pedals...
- Page 15 BAT: battery voltage ODO: total mileage TRIP: single mileage Parking, Storage, and Transport Please follow these basic parking, storage, and transport tips to ensure your scooter is well cared for on and off the road. - When pushing or carrying the scooter manually, turn of the power to avoid accidental acceleration from the motor.
-
Page 16: Limited Warranty
And after obtaining our verification and confirmation, send them back, otherwise Tomofree has the right to deny this warranty Legitimacy. We will inspect the product as soon as possible after receiving it,... - Page 17 Parts Warranty Regulations Part Name Service Term Scope of the warranty Handling method Motor 12 months Quality issues & Free replacement Performance failure Battery 12 months 1-Month Quality issues Free replacement * Endurance Controller 12 months Performance failure Free replacement Frame 12 months Quality issues...
- Page 18 Email: support@tomofree.com...
