Summary of Contents for Tomofree A11
- Page 1 Video Instrucions on YouTube Search:Tomofree After Sales Support: support@tomofree.com...

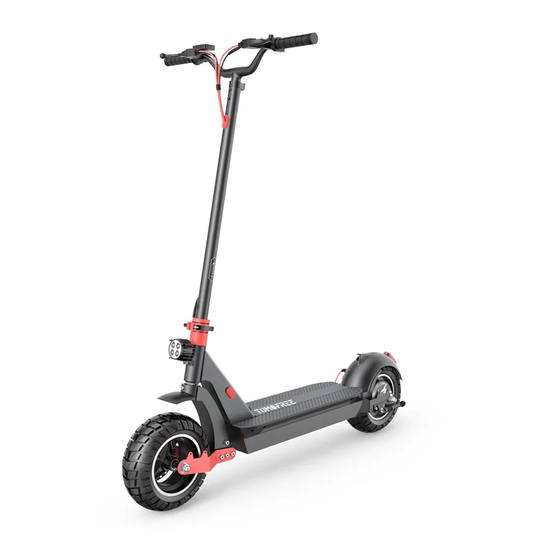

- Page 2 A11 User Manual We strongly recommend that you read this entire manual before using your electric scooter...
- Page 3 How to start Dashboard Error Code...
- Page 5 1. Take the scooter out of the box carefully. 2. Open the buckle, push down sleeve, lock the buckle. 3. Install the handlebar, tight it with screw. 4. Connect the wire plugs, plugs need color to color.
-
Page 6: How To Start
How to start Accelerator Power switch Light and horn Turn on: one short click on the power switch to open the scooter. Turn off: 3 seconds long press to turn scooter off. Change speed mode: open the scooter first, then 2 short click to change speed mode. Change start mode: open the scooter first, then 4 short clicks to change zero/ no-zero speed start mode. - Page 7 Dashboard 2,Start mode 3,Speed gear 1,Speed display or fualt code 4,Speed mode 5,Battery signal 8,Lock signal 6,Light signal 7,Fualt signal #1 Speed display or error code, for the error code please check page 7. #2 Start mode: turn on the scooter, 4 clicks the power switch to change zero/ non-zero start mode. #3 Speed mode: turn on the scooter, 2 click the power switch to change speed mode, green light is ECO mode.
- Page 8 Eerro Code If the display show fault signal with fault number, you can check and fix as follows 00 Thottle fault: Please check if the throttle back to the default position, or check if the throttle cable disconnect. 01 E-brake fault: Please check if the brake back to the default position, or check if the brake cable has broken.
- Page 9 1, Open the rubber lid 2, Insert the plug in the port 3, Close the lid after charging Charger port...
- Page 18 1, Unscrew the bottom screws, open the bottom carefully. 2, Unplugged the XT60 plug and the charger plug 3, The battery is stickered on the scooter bottom, you can pull it out by hand.
- Page 20 3.Tires can be replaced for half a year in normal use, except for punctures.
