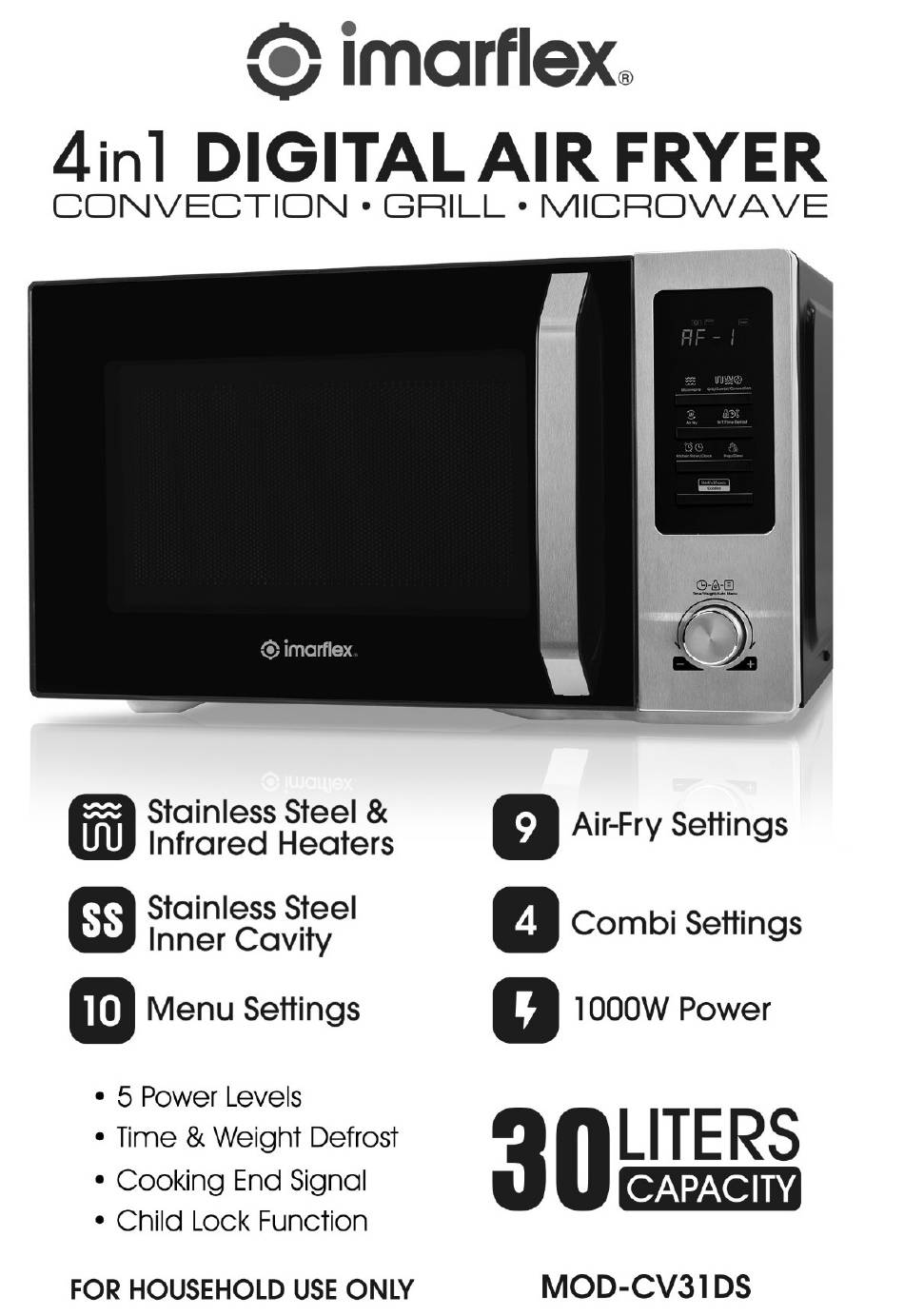

imarflex MOD-CV31DS Instruction Manual

4 in 1 digital air fryer
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOD-CV31DS and is the answer not in the manual?

Questions and answers

Related Manuals for imarflex MOD-CV31DS

Summary of Contents for imarflex MOD-CV31DS

  • Page 2 SPECIFICATION Model no. MOD-CV31DS Voltage 230Va.c. 60Hz Input Power (Microwave) 1600W (Grill) 1000W (Convection) 2000W Rated Microwave Power Output 1000W Microwave Frequency 2450MHz Outside Dimension 523*449*300mm Oven Cavity Dimension 355*336*241mm Oven Capacity 30 liters IMPORTANT SAFEGUARDS The following basic precautions should always be followed when using electrical appliance: Read all instructions before using.
  • Page 3 When boiling liquid in the oven, use the wide-mouthed container and stand about 20 seconds at the end of cooking to avoid delayed eruptive boiling of liquids. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

  • Page 4: Installation

    OPERATION THEORY OF MICROWAVE OVEN Microwave is a kind of high frequency electromagnetic wave, which is commonly distributed in the nature. But the existing form of microwave is dispersed so that it cannot be collected together for heating purpose. The key component of magnetron of microwave oven will transform the energy of electricity to microwave and huge energy of microwave field is established under the closed cavity.

  • Page 5: Radio Interference

    Broken or loosened hinges and latches. Leaks on door seals and sealing surfaces. The oven should not be adjusted or repaired by anyone aside from an authorized Imarflex service technician. Do not tamper the safety interlocks. IF THE MICROWAVE FAILS TO OPERATE Check to ensure that the oven is plugged in securely.

  • Page 6: Cookware Guide

    Use paper towels, microwave plastic wrap or a cover-to-cover food to prevent • spattering and help foods to cook evenly. Stir foods From outside to center of dish once or twice during cooking, if possible. • Turn foods Foods such as chicken, hamburgers or steaks should be turned over once during •...
  • Page 7 Utensils Remarks Browning Dish Follow manufacturer’s instructions. The bottom of browning dish must be least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid.

  • Page 8: Control Panel

    Observation window Door assembly Safety interlock system Turntable Installation Hub (underside) a. Never place the glass tray upside down. The glass tray should never be restricted. Both glass tray and turntable ring assembly must always be used during cooking. Glass tray All food and containers of food are always placed on the glass tray for cooking.
  • Page 9 1. Clock Setting When the microwave oven is powered ON, the oven will display “0:00”, and the buzzer will ring once Press ‘Kitchen Timer/Clock’ twice. “00:00” displays, the hour figures will flash. Turn the knob to adjust the hour figures, the input time should be within 0-23 (24 hours). Press ‘Kitchen Timer/Clock’, the minute figures will flash.
  • Page 10 4. Grill or Combi Cooking Press ‘Grill/Combi/Convection’ once, the screen will display ‘G-1’ Press ‘Grill/Combi/Convection’ repeatedly or turn the knob to choose the power you want, and G-1, C-1, C-2, C-3 or C-4 will display for each added press. Then press ‘Start/Confirm’ to confirm and turn the knob to adjust the cooking time (The maximum time setting is 95 minutes).
  • Page 11 5. Convection Cooking (With preheating function) The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven. Press ‘Grill/Combi/Convection’...
  • Page 12 Press ‘W T/ Time Defrost’ once, the screen will display "d-1"; Turn the knob to adjust the defrost time of 5 minutes; Press ‘Microwave’ once, "P100" will display; Press ‘Microwave’ again to choose 80% microwave power till "P80" displays; Press ‘Start/Confirm’ to confirm the setting; Turn the knob to adjust the cooking time of 7 minutes;...
  • Page 13 A-5 Fish 50(with water 450g) 100(with water 800g) Pasta 150(with water 1200g) 200ml 400ml 100% Soup 600ml Preheat at 180°C Cake Pizza A-10 Chicken 1000 1000 1200 1200 10. Defrost by Weight a. Press ‘W T/Time Defrost’ button once, the oven will display ‘d-1’. b.
  • Page 14 Unlock: In locked state, press ‘Stop/Clear’ for 3 seconds, there will be a long "beep" denoting that the lock is released, and " " indicator will disappear. 14. Specification a. The buzzer will sound once when turning the knob at the beginning.

  • Page 15: Cleaning And Maintenance

    Put some orange peel into oven, and then heat them with high power for 1 minute. Turntable/ Rotating ring/Rotating shaft. REMINDER: Please do not forget to register your product warranty through the warranty registration website at https://imarflex.ph Distributed by: Topgadget Distributions, Inc. 2120 A.linao St., Malate, Manila Made in China...
