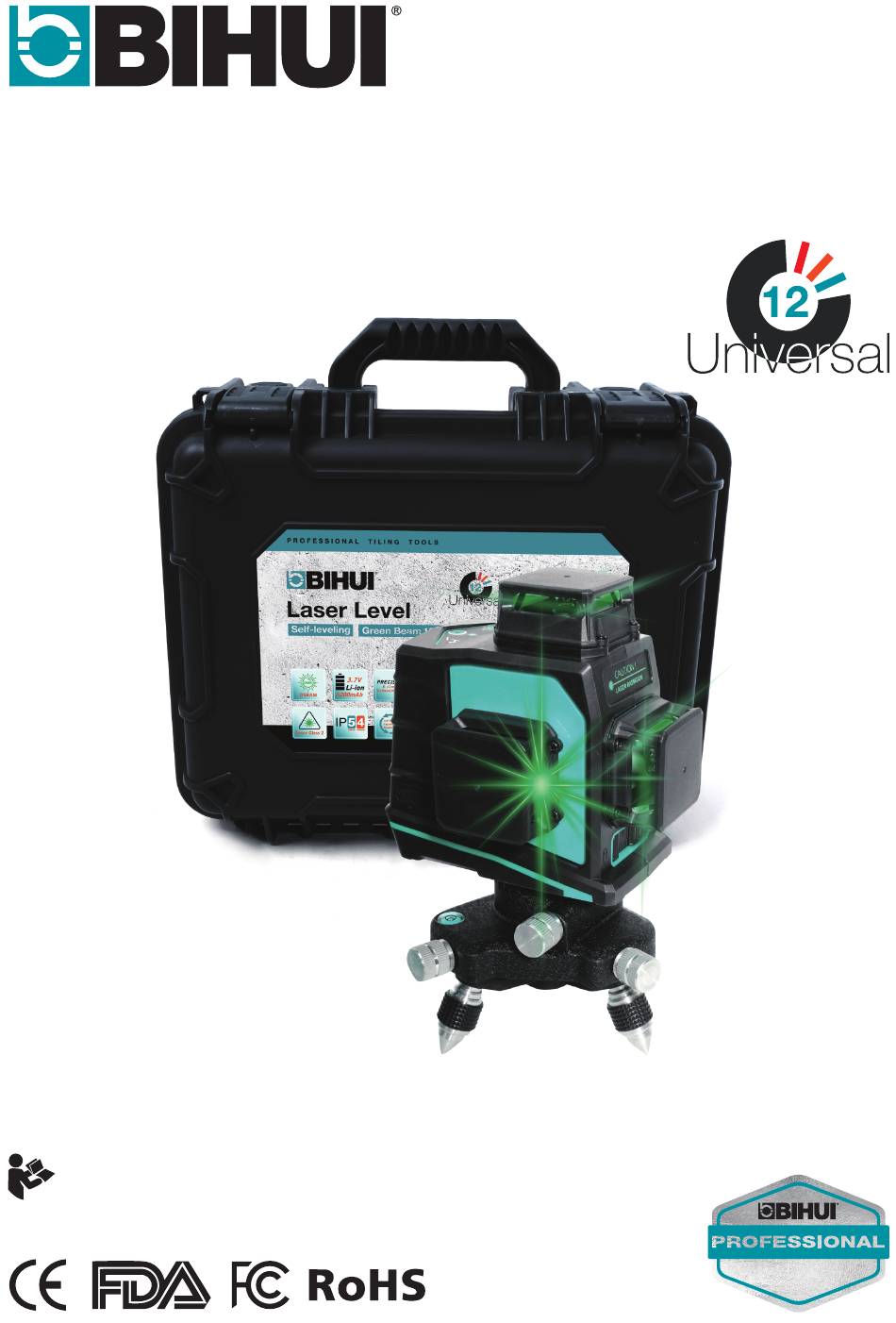

- Page 1 LLG12 Usage Instructions Self-levelling Green Beam Laser Level Read before use W A R R A N T Y...
-
Page 2: Product Overview
English Usage Instructions Product Overview Window for 360°coverage beam Keypad Locking switch 5/8”-11 threaded mount 1/4”-20 threaded mount USB charging port Battery cover 3-in-1 Charger UK . EU . USA 1 x Lithium-ion Battery Laser target plate Green glasses Bracket with adjusting and level spirit Magnetic bracket PV3 &... - Page 3 English Usage Instructions INDEX Symbols Safety Warnings The following are the icons that are used for the tool. Make sure you fully understand them before using them. Application Using Instructions Wear safety gloves Read before use Cleaning and Maintenance Accessories Wear hearing protectors CE mark Environmental Protection...
-
Page 4: Usage Instructions
English Usage Instructions h) Do not weigh yourself in false safety and do not overstep the safety rules for power tools, even if you are familiar with the power tool after many uses. Careless action can lead to serious injuries within fractions of a second. 1.4 Use and care of the power tool a) Do not overload the power tool. -
Page 5: Using Instruction
2.Application - 360° Self-levelling green beam 12 lines laser level - Auxiliary tiles fixing, wall decoration, floor tiles fixing, stair handrails, furred ceiling, floor tile, plastering etc. Model LLG12 Laser Class Class 2 (IEC/EN60825-1/2014), ≤1mW Laser Wavelength 520 ± 10nm Leveling Accuracy ±3mm/10m... - Page 6 3.1.3 Operating Modes After switching on, the measuring tool have all beams on. To change the operating mode, press the power button . Short press the power button repeatedly to switch the composition of different laser lines. The measuring tool has several operating modes between which you can switch at any time. - Generating a horizontal laser plane as well as one vertical laser plane.
-
Page 7: Cleaning And Maintenance
3.1.4 Switch to Pulse Mode: - Press the pulse button “P” to turn the Pulse Mode on. Note: Laser level can work with Laser Receiver under pulse mode. 3.1.5 LED Indications: - Is solid Red, and it blinks only when battery level is low. 3.1.6 Laser target plate - Keep the laser target plate away from cardiac pacemakers. -
Page 8: Environmental Protection
6. Environmental Protection - Do not dispose of electrical appliances in the household waste. - Follow the local provisions for the disposal of electrical or battery products. - Valuable materials can be recovered by recycling. - The electrical or battery components used for construction are in accordance with the regulation European Directive 2012/19 / waste electrical and electronic equipment and transposition into national law., used electrical appliances must be collected and recycled in an environmentally sound manner.
