Summary of Contents for Bihui LLG16

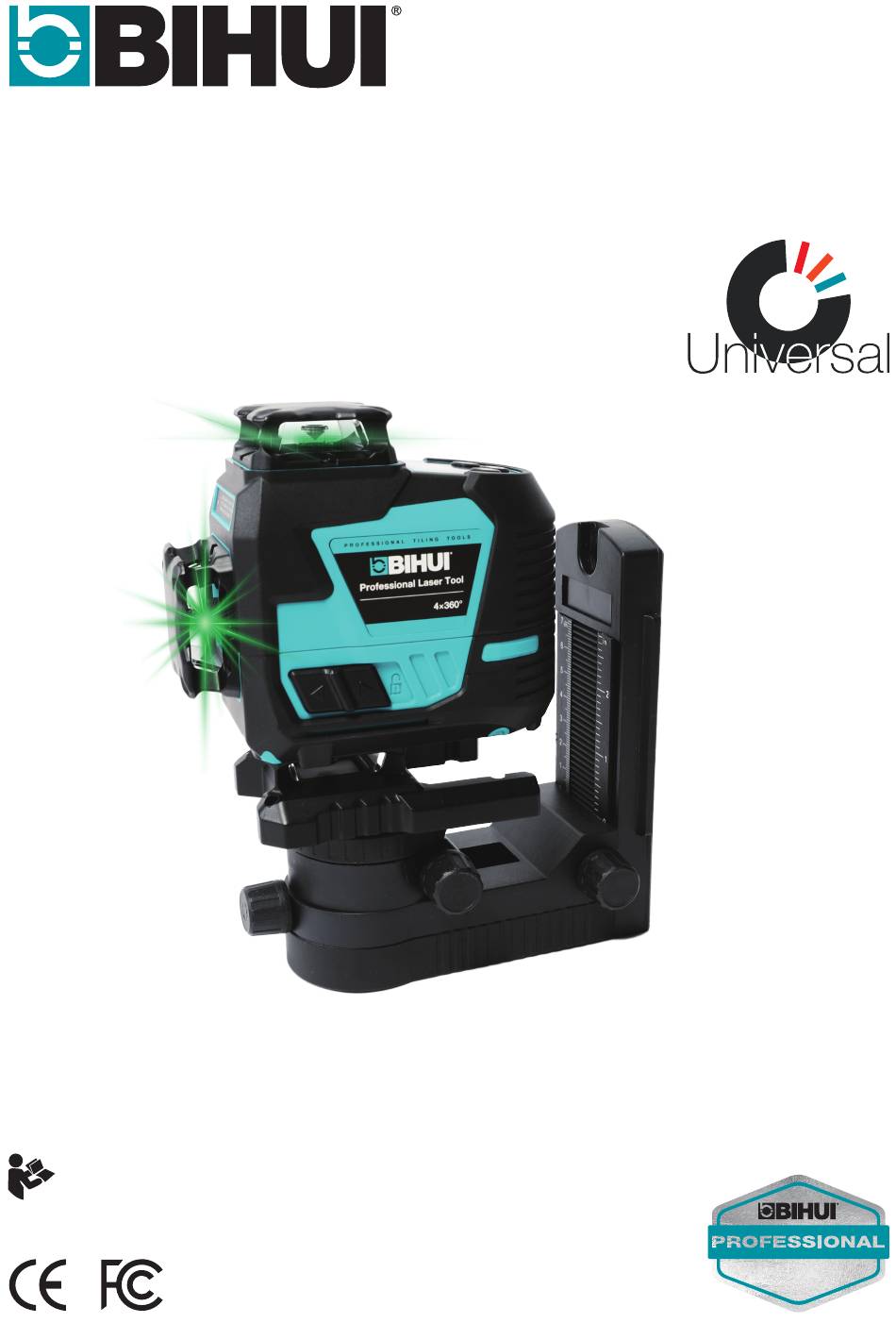

- Page 1 LLG16 Usage Instructions Self-levelling Green Beam Laser Level Read before use W A R R A N T Y...
- Page 2 English Usage Instructions Product Overview Icons on LCD Display Switch Horizontal Lines 1.Pendulum Locked & Unlocked Status 2.The battery balance 3.X/Y Axis Tilt Direction Switch Vertical Lines 4.Pulse Mode 5.X Axis Tilt Angle 6.Y Axis Tilt Angle Key Button & Pulse Mode Button TFT Display Laser Windows Type-C Charging Port...
- Page 3 English Usage Instructions INDEX Symbols Safety Warnings The following are the icons that are used for the tool. Make sure you fully understand them before using them. Application Using Instructions Wear safety gloves Read before use Cleaning and Maintenance Accessories Wear hearing protectors CE mark Environmental Protection...
- Page 4 English Usage Instructions h) Do not weigh yourself in false safety and do not overstep the safety rules for power tools, even if you are familiar with the power tool after many uses. Careless action can lead to serious injuries within fractions of a second. 1.4 Use and care of the power tool a) Do not overload the power tool.
- Page 5 - Supports tilting at any angle - Three levels of brightness adjustable - Professional grade waterproof and dustproof - Auxiliary tiles fixing, wall decoration, floor tiles fixing, stair handrails, furred ceiling, floor tile, plastering etc Model LLG16 Laser Class Class 2 Laser Wavelength 510-530nm,＜1 mw...
- Page 6 3.1.3 Line Switching Slide the Pendulum/Transit Lock to the Unlocked Position, the upper horizontal laser beam will be lit by default , the instrument is powered on. When the Pendulum/Transit Lock is in the Locked Position , all lines switching operations are the same. 3.2 Self-leveling Mode Slide the Pendulum/Transit Lock to the Unlocked Position to turn ON the instrument, the self-leveling mode is activated by default.
- Page 7 3.6 Shutdown memory function - The laser beam lit state is memorized when the instrument is turned off. When the instrument is turned on again, the laser beam will keep the same lit state as when the it was last powered on. Note: Pulse state will not memorized.
- Page 8 4.Cleaning and Maintenance - Do not store the laser tool in direct sunlight or expose it to high temperatures. - The housing and some internal parts are made of plastics and may become deformed at high temperatures. - Exterior plastic parts may be cleaned with a damp cloth. Although these parts are solvent resistant, NEVER use solvents. Use a soft, dry cloth to remove moisture from the tool before storage.
