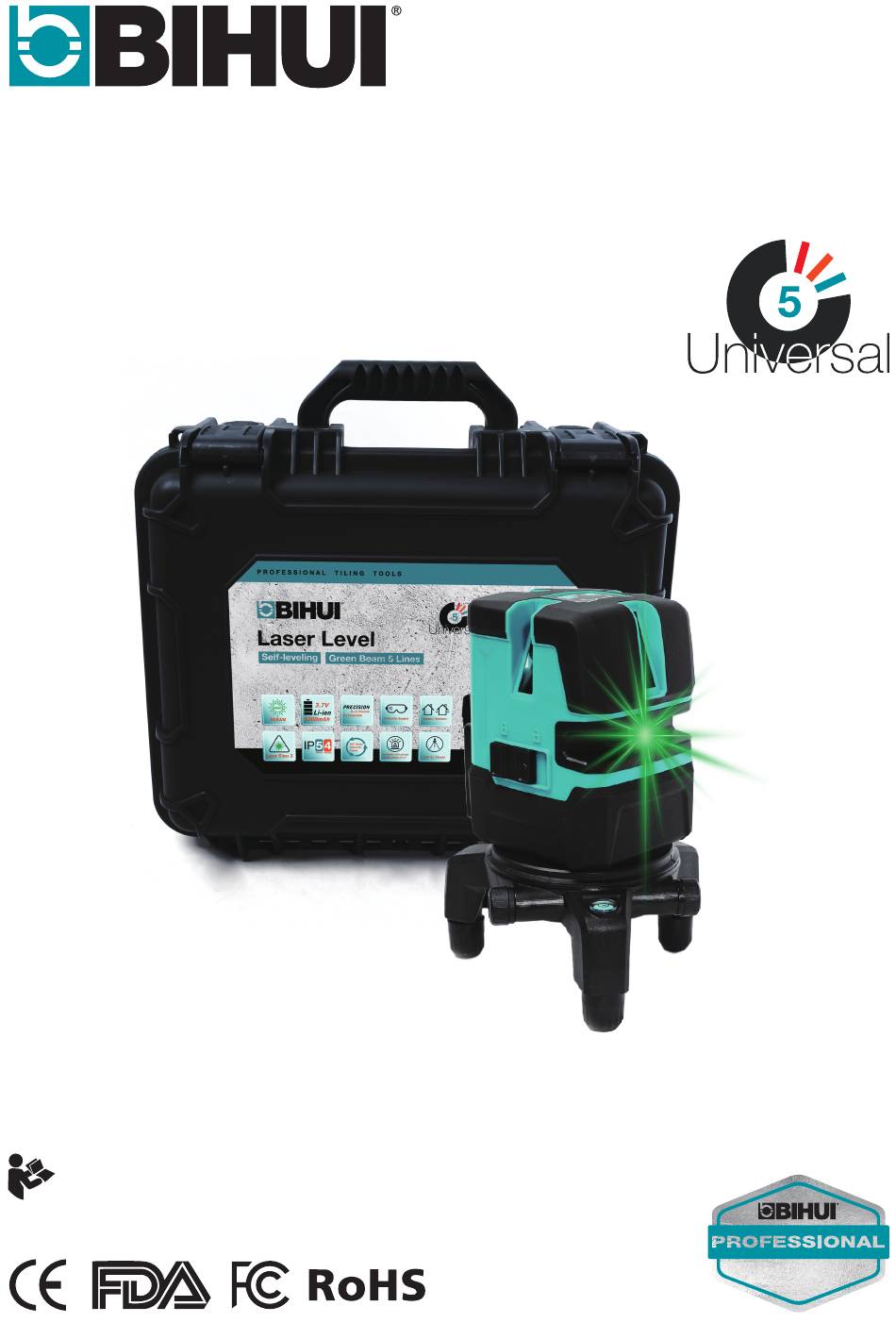

- Page 1 LLG05 Usage Instructions Self-levelling Green Beam Laser Level Read before use W A R R A N T Y...
- Page 2 English Usage Instructions Product Overview Window for 360°coverage beam Keypad Locking switch 5/8”-11 threaded mount Battery socket USB charging 1 x Lithium-ion Battery Laser target plate Green glasses Bracket with adjusting and level spirit www.bihuitools.com...
- Page 3 English Usage Instructions INDEX Symbols Safety Warnings The following are the icons that are used for the tool. Make sure you fully understand them before using them. Application Using Instructions Wear safety gloves Read before use Cleaning and Maintenance Accessories Wear hearing protectors CE mark Environmental Protection...
- Page 4 English Usage Instructions h) Do not weigh yourself in false safety and do not overstep the safety rules for power tools, even if you are familiar with the power tool after many uses. Careless action can lead to serious injuries within fractions of a second. 1.4 Use and care of the power tool a) Do not overload the power tool.
- Page 5 AVOID VIEW WITH OPTICAL INSTRUMENTS. 2.Application - 360° Self-levelling green beam 5 lines laser level - Auxiliary tiles fixing, wall decoration, floor tiles fixing, stair handrails, furred ceiling, floor tile, plastering etc. Model LLG05 Laser Class Class 2 (IEC/EN60825-1/2014) Laser Wavelength 510 ± 5nm Leveling Accuracy ±3mm/10m...
- Page 6 3.1.2 Operating Modes After switching on, the measuring tool generates a horizontal laser line. To change the operating mode, press the Power and Pulse button . - The laser tool can project 4 vertical laser lines, 1 horizontal laser line and 1 down dot. It can be controlled by short press on Power and Pulse button.
- Page 7 3.1.3 LED Indicator - When the laser tool is powered on, current battery volume will be displayed immediately, and please note the laser tool can be able to work while charging. 3.2 Self-leveling Mode - Is enabled when the laser tool is powered on. - Has laser beam(s) blink fast at 2 Hz when tool is out of self-leveling range to alert user.
- Page 8 7.Warranty The laser tool passed rigorous and comprehensive product inspection. We are confident of the quality of our products and offer outstanding guarantee for professional users of the products. We offer One Year Limited Warranty from date of purchasing provided that: - Proof of purchase - Fair wear and tear - Have not repaired by unauthorized persons...
