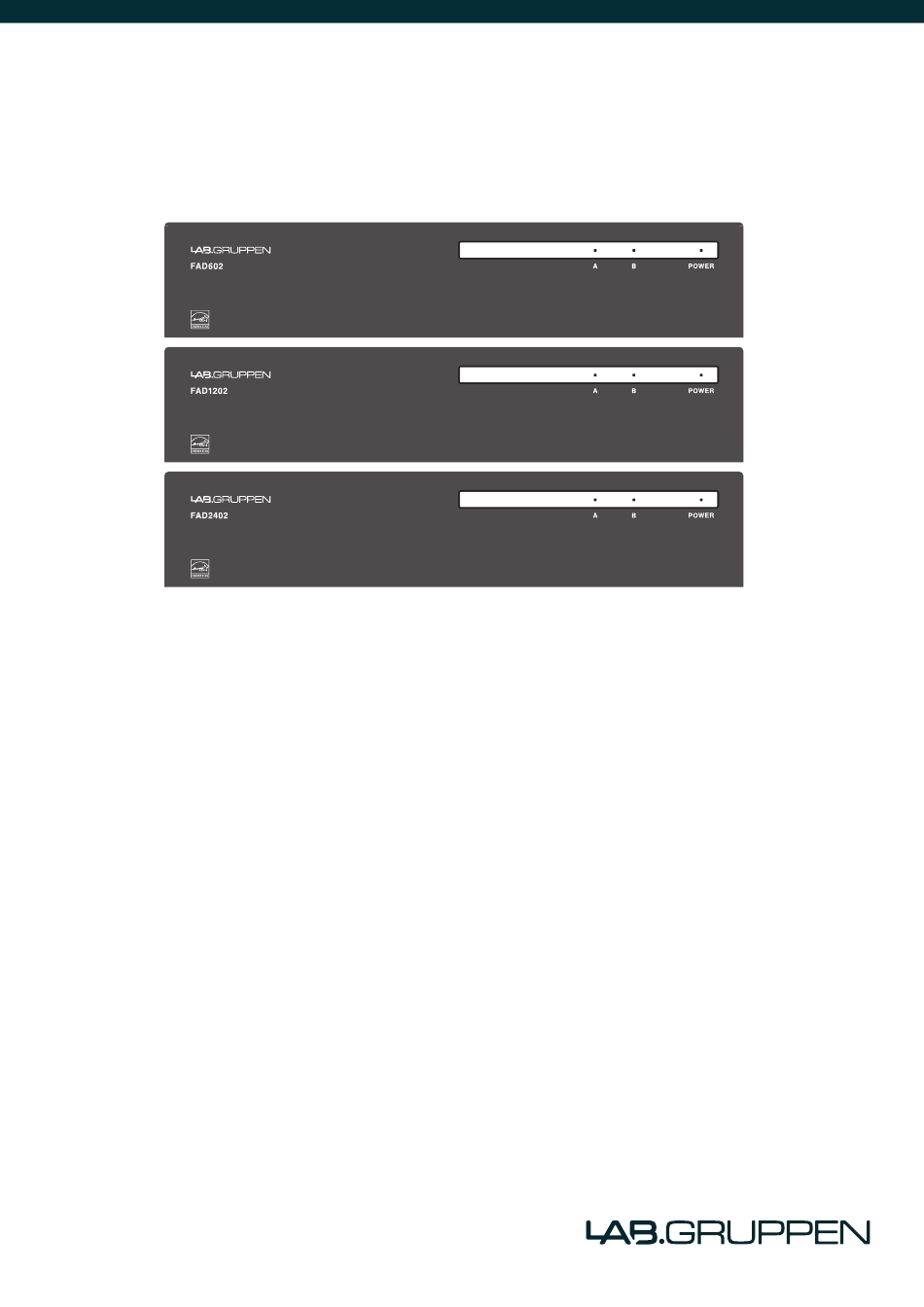

- Page 1 Quick Start Guide FAD Series FAD602/FAD1202/FAD2402 60/120/240-Watt Commercial Amplifier with Direct Drive Technology, Dante Networking and Energy Star Certification V 1.0...
-
Page 2: Important Safety Instructions
FAD SERIES 9. Do not defeat the safety purpose of the polarized 20. Please keep the environmental aspects of battery Important Safety or grounding-type plug. A polarized plug has two blades disposal in mind. Batteries must be disposed-of at a Instructions with one wider than the other. - Page 3 FAD SERIES FAD Series Hook-up Hook-Up Loudspeakers...
- Page 4 Quick Start Guide Dante Network Remote...
- Page 5 FAD SERIES FAD Series Controls (9) (10) (11)
- Page 6 Quick Start Guide Controls (1) Input LEDs - Light green for signal and red for limit/fault. (2) POWER LED - Lights blue for power on and yellow for sleep mode. (3) Mains connector – Connect the IEC cable to a mains outlet. (4) CONFIG A/B switches –...
-
Page 7: Rack Mounting
FAD SERIES FAD Series Getting started Welcome to the FAD series Quick Start Guide and thank you for purchasing one of If your rack has rear rails, attach the rear flat brackets by reusing the screws from these amplifiers. The following accessories should be included with your product: the chassis. -
Page 8: Factory Reset
Quick Start Guide Table/Wall Mounting Config Connect a pair of coupling plates to either side of a FAD series amplifier, then mount screws through the remaining holes in the plates to secure the unit to a wall or table. Connections... - Page 9 FAD SERIES FAD Series Getting started Configure and Operate the Highlight an intersection between the one of the FAD Dante channels and Dante Connection one of the Dante-enabled audio source channels and left-click the mouse. A successful subscription will show as a green check mark. If you are Download the Dante controller from the Audinate website at unable to create a subscription or encounter a red ‘no’...
- Page 10 Quick Start Guide The Device Config tab allows the audio settings of the FAD unit to For information about the Dante network synchronization, go to the be changed. Please note that changes made to the audio encoding Clock Status tab from the default Routing view. This view will show (sample rate, bit depth, etc) must be matched to the settings of the whether the internal clocks of the devices in the network are synced and Dante-enabled audio source device and that a mismatch will break...
-
Page 11: Specifications
FAD SERIES Specifications FAD602 FAD1202 FAD2402 Maximum Output Power 4 or 8 Ω per channel 60 W 120 W 240 W Number of Ouput Channels Number Minimun Load Impedance 4 Ω mode 4 Ω 8 Ω mode 8 Ω 70 V output mode 82 Ω... - Page 12 FAD SERIES Other important information Outras Informações Important information Informations importantes Importantes 1. Register online. Please register your new 1. Enregistrez-vous en ligne. Prenez le 1. Registre-se online. Por favor, registre seu Music Tribe equipment right after you purchase it by temps d’enregistrer votre produit Music Tribe aussi vite...
-
Page 13: Federal Communications Commission Compliance Information
Quick Start Guide FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION FAD SERIES Responsible Party Name: Music Tribe Commercial NV Inc. 901 Grier Drive Address: Las Vegas, NV 89118 +1 702 800 8290 Phone Number: FAD SERIES complies with the FCC rules as mentioned in the following paragraph: This equipment has been tested and found to comply with the limits for a Class B...
