Summary of Contents for LuxaFlex Larvik

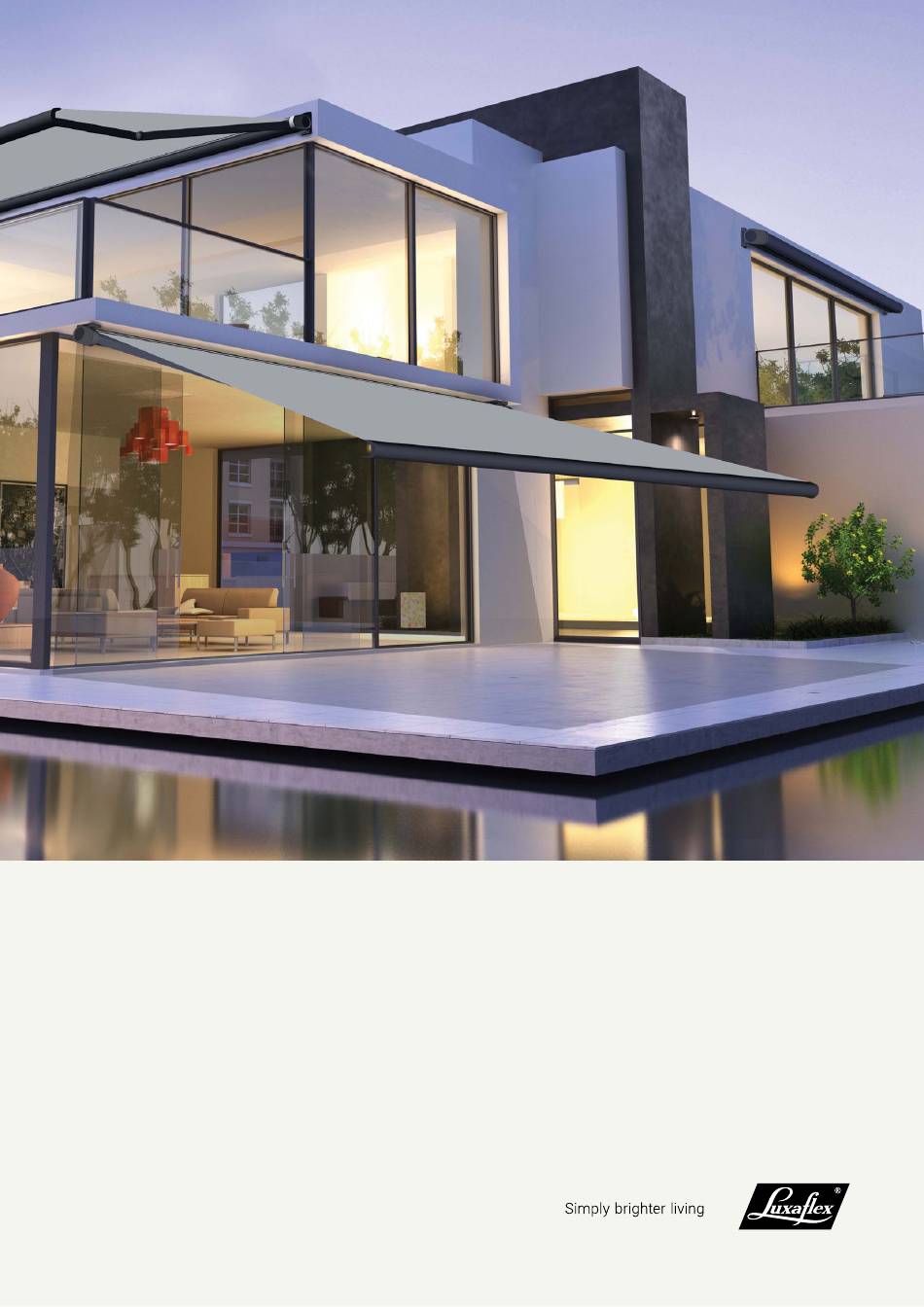

- Page 1 Installation manual Awning Larvik...
-
Page 2: Icon Overview
If any irregularities are observed during opening and/or closing, call a professional installer. To avoid possible damage, do not allow children to play with the awning. Luxaflex installation manual - Larvik ®... -
Page 3: Product Parts
Product parts Larvik support set and caps Top cover (for front fixing) Luxline 400 top cover support set Top cover sealing profile Supl. Larvik support Sealing profile to the wall Long fixing plate for cassette Arms Cassette profiles kit Rolling tube... - Page 4 Mounting Wall mounting (mm) Ceiling mounting (mm) Wall- ceiling fixing plate Luxaflex installation manual - Larvik ®...
- Page 5 Windclass Classification according to European standards: EN 13.561:2015 Arm projection (m) Width Class 4,00 6,00 Information about arms replacement The arms have a protective band for correct identification: GREEN: Right hand side viewed from outside RED: Left hand side viewed from outside NEVER EXTRACT THE SAFETY TENSION BANDS UNTIL THE ARM HAS BEEN FIXED TO THE FRONT PROFILE.
-
Page 6: Installation Instructions
Installation instructions The distance between the exterior part of the wall plates should be: L-36 mm, when L=total width. Fixing the cassette support to the wall brackets. Perfectly flush Luxaflex installation manual - Larvik ®... - Page 7 To change the cassette slope proceed as indicated in the drawing. Fasten the three screws once the adjust-ment is finished To modify the alignment of the arms, proceed as indicated in the parallelism regulation. Parallelism fixing...
- Page 8 (as shown in the drawing). Place the plates for the front profile. IMPORTANT: Do not forget that a plastic runner (slider) has to be introduced at each side of the cap. Luxaflex installation manual - Larvik ®...
- Page 9 Fixing the aluminium side cap to the cassette structure with the safety screw. The lower slot in the front profile is equipped with a diffuser profile. The diffuser profile can be placed as a concealment ele-ment even if there is no led strip inserted in the slot.
- Page 10 Wiring examples for led strips operated by hand transmitter. Power supply Single colour led strip Wiring example for led strips. Linear LED connection details Luxaflex installation manual - Larvik ®...
-
Page 11: Information To The User
Basic notes on assembly and installation: - Assembly and installation should be done by - If the awning is to be installed in windy areas trained personnel. where there are frequent blackouts, manual - IMPORTANT SAFETY CONSIDERATIONS: For operation or the use of a back-up generator is proper installation of the awning, the instructions recommended. - Page 12 Find your local Luxaflex ® showroom at luxaflex.com Brainstorm with our design expert. Let’s talk Brainstorm with our design expert. Craftsmanship guaranteed Custom made & uniquely yours. Home consultation On-site assessment for a perfect custom fit. Seamless setup Expertly installed with a 5-year guarantee.
