Summary of Contents for LuxaFlex Nordby

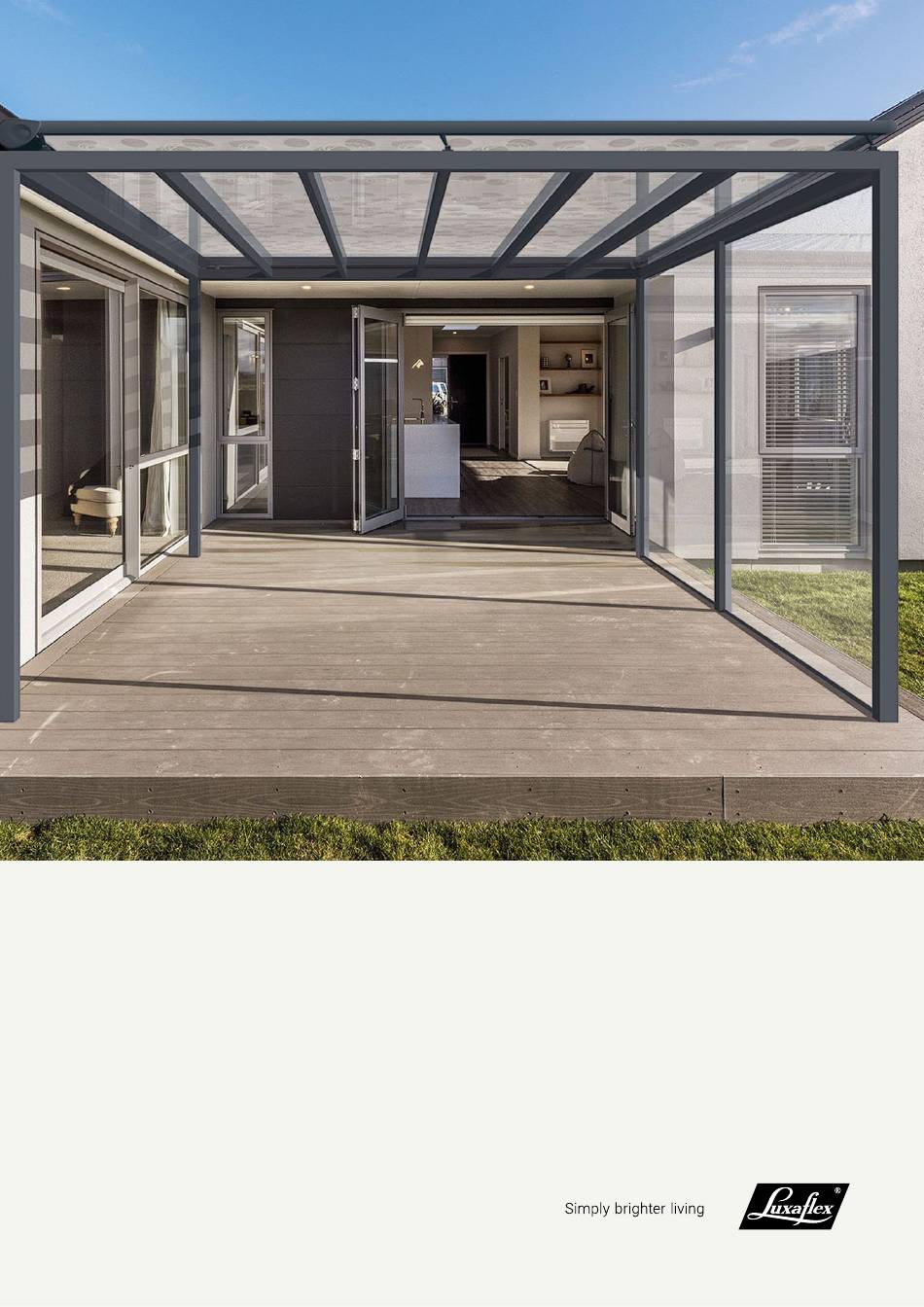

- Page 1 Installation manual Awning Nordby...
-
Page 2: Icon Overview
Icon overview Use with sun Class by N. of cicles Don’t use with snow 38 Km/h Don’t use with rain Made in Europe Don’t use with hail CE standards Luxaflex installation manual - Nordby ®... -
Page 3: Installation Instructions
Installation instructions o GRANDE Check whether all components are complete. Boor gaten volgens gemaakte afmeting. Slide the brackets into the guide. Verandazonwering Sorrento GRANDE Montage-instructies Determine position of mounting brackets. Boor gaten volgens gemaakte afmeting. - Page 4 Boor gaten volgens gemaakte afmeting. Verandazonwering Sorrento GRANDE Montage-instructies Mount the footplates to the Nordby awning using screws Ø 6 mm. Boor gaten volgens gemaakte afmeting. Mount the guides on the footplate and tighten the screws. Do not continue turning until you feel resistance!
- Page 5 Mount the cassettebox on the guides. Push the cassette firmly and screw it to the guides on both sides. Adjust the diagonals precisely and tighten all screws the guides are attached. x=y ! Note! Adjustment must be done Projection in cm Prestressing length in cm very carefully.
- Page 6 Kontroleer of de onderlat vrij in de geleiders loopt, zo niet pas de geleiders aan. Remove the bottom rail cover to adjust the spring load. Kontroleer of de onderlat vrij in de geleiders loopt, zo niet pas de geleiders aan. Luxaflex installation manual - Nordby ®...
- Page 7 Up to 300 4 cm per pulley set Up to 400 5 cm per pulley set Up to 500 8 cm per pulley set Tighten both springs and lock the cords in the clamp. =y ! Projection in cm Prestressing length in cm Up to 200 3 cm per pulley set Up to 300...
- Page 8 Installation instructions - Two coupled awnings Check whether all components are complete. Slide the brackets into the bottom of the guides. Luxaflex installation manual - Nordby ®...
- Page 9 Determine position of mounting brackets. Drill holes according to the dimensions made. Mount the footplates to the Nordby roof using screws Ø 6 mm. Mount the guides on the footplates and tighten the screws. Do not continue turning until you feel resistance!
- Page 10 The difference between the two diagonal sizes may be a maximum of 5 mm! Failure to meet this condition during installation may damage the product and void the warranty. It can even lead to accidents! Luxaflex installation manual - Nordby ®...
- Page 11 Open the top cover and check cord position on the cord winder and on the rollers in the side cover and screw tightening force. x=y ! x =y ! Check the course of the cords in end bearings of guides. =y ! =y ! Remove the bottom rail cover to adjust the spring load.
- Page 12 The drop profile is then closed again. Secure the end of the cord with the screw and close the front frame. ns tabel d worden. Check whether the bottom rail runs freely in the guides, if not adjust the guides. Luxaflex installation manual - Nordby ®...
-
Page 13: Information To The User
Basic notes on assembly and installation: - Assembly and installation should be done by - If the awning is to be installed in windy areas trained personnel. where there are frequent blackouts, back-up - IMPORTANT SAFETY CONSIDERATIONS: For generator is recommended. proper installation of the awning, the instructions - When motorised units are inspected or repaired, for assembly and installation must be carefully... - Page 14 We cannot accept any responsibility for problems arising out of a failure to follow the installation and operating instructions. If you would like more information and/or you are having problems, please contact the dealer where you bought your Luxaflex product. ®...
