Summary of Contents for LuxaFlex Ystad

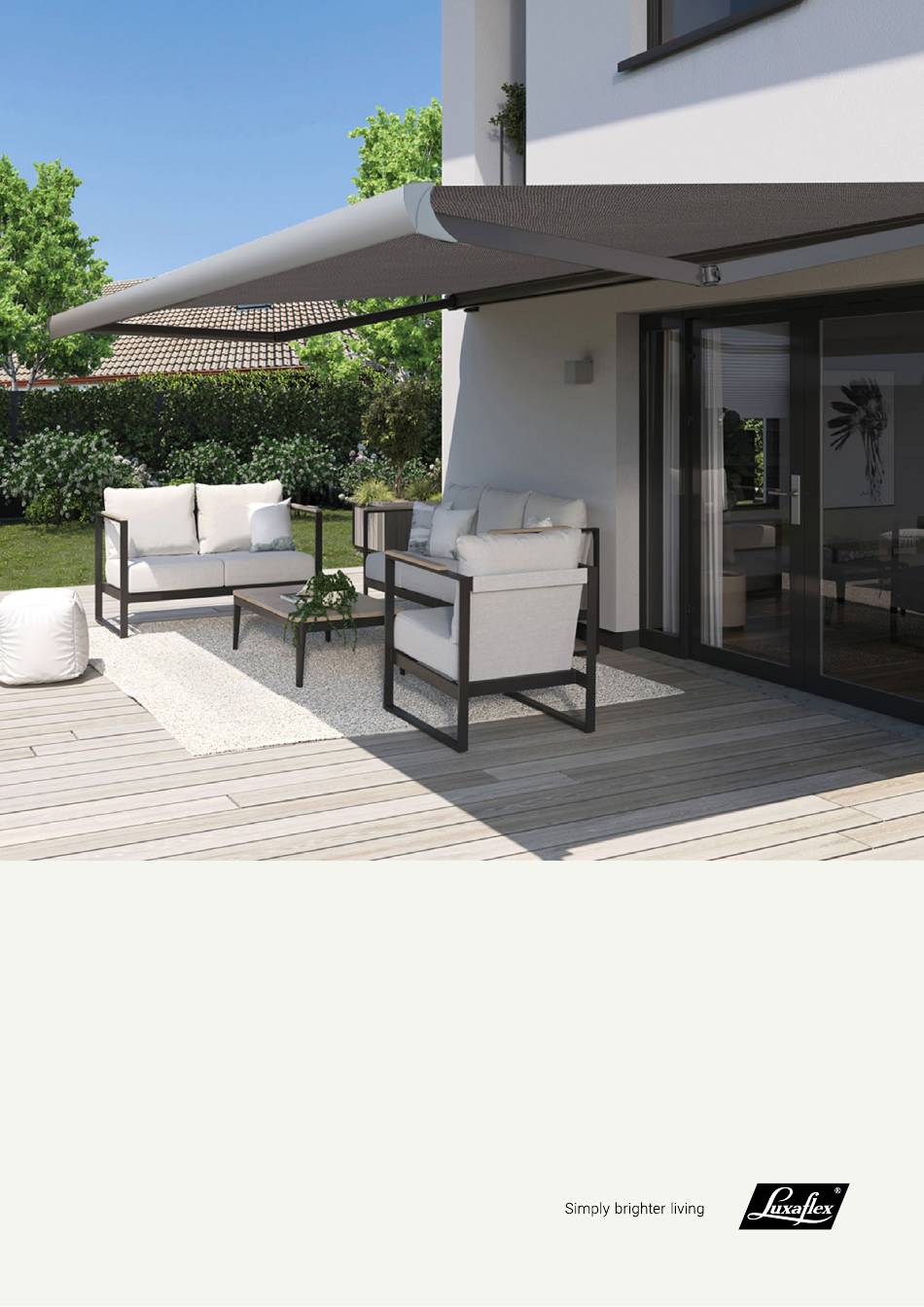

- Page 1 Installation manual Awning Ystad...
-
Page 2: Icon Overview
If any irregularities are observed during opening and/or closing, call a professional installer. To avoid possible damage, do not allow children to play with the awning. Luxaflex installation manual - Ystad ®... -
Page 3: Product Parts
Product parts Support set and caps Rubber sealant profile Concealment caps Arms set Long fixing plate for cassette Rolling tube Cassette profiles kit Roller end bearing... - Page 4 Mounting Wall mounting (mm) Ceiling mounting (mm) Wall- ceiling fixing plate Luxaflex installation manual - Ystad ®...
- Page 5 Windclass Classification according to European standards: EN 13.561:215 Arm projection (m) Width Class 3,00 5,00 Information about arms replacement The arms have a protective band for correct identification: GREEN: Right hand side viewed from outside RED: Left hand side viewed from outside NEVER EXTRACT THE SAFETY TENSION BANDS UNTIL THE ARM HAS BEEN FIXED TO THE FRONT PROFILE.
-
Page 6: Installation Instructions
L-40 mm, when L=total width. Fixing the cassette support to the wall bracket. To change the cassette slope proceed as indicated in the drawing. Fasten the three screws once the adjustment is finished. Luxaflex installation manual - Ystad ®... - Page 7 To modify the alignment of the arms, proceed as follows. Parallelism regulation Parallelism fixing Positioning distance for the front rail connectors measured from the end of the front profile to the outer end of the front rail connector. 205 mm VERY IMPORTANT: The screws for the front rail connectors must be oriented towards the outside (as shown in the drawing).
-
Page 8: Information To The User
If any irregularities are observed during opening and/or closing, call a professional installer. To avoid possible damage, do not allow children to play with the awning. Luxaflex installation manual - Ystad ®... - Page 10 We cannot accept any responsibility for problems arising out of a failure to follow the installation and operating instructions. If you would like more information and/or you are having problems, please contact the dealer where you bought your Luxaflex product. ®...
