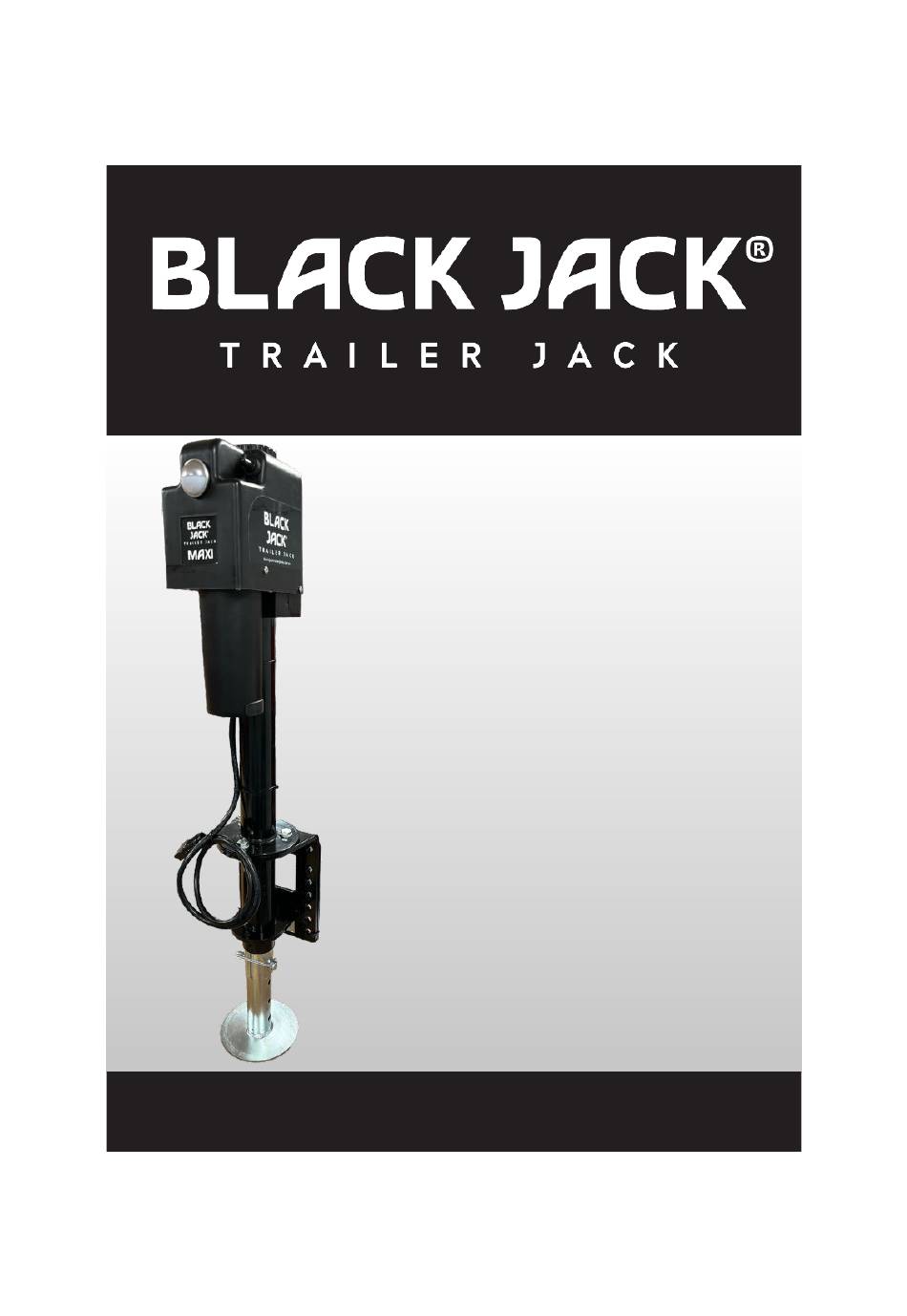

- Page 1 U S E R M A N U A L Black Jack Maxi ® 2000kg 12V DC P/N: BJTJ-Maxi-1000, BJTJ-Maxi-1001 Please read and understand all instructions before use. Retain this manual for future reference. www.blackjacktrailerjacks.com.au More information https://www.caravansplus.com.au...
- Page 2 More information https://www.caravansplus.com.au...
-
Page 3: Table Of Contents
12. Unhitching The Trailer 13. Hitching The Trailer 14. Manual Override 15. Care & Maintenance 16. Optional Folding Foot 17. Troubleshooting 18. Warranty & Parts 19. Intellectual Property 20. Compliance Black Jack Trailer Jack® Maxi User Manual V1 © More information https://www.caravansplus.com.au... -
Page 4: Specifications
2 . I N T R O D U C T I O N Congratulations on your new Black Jack! The Black Jack Trailer Jack is rated to support up to 2000kg trailer tongue weight and with the patented Black Jack Clamp, it can be fitted to any trailer A-frame. -
Page 5: Safety
Store unused devices properly in a safe and dry location to prevent rust or damage. Lock devices away and keep out of the reach of children. Do not install or use in the presence of flammable gases, dust, or liquids. Black Jack Trailer Jack® Maxi User Manual V1 © More information https://www.caravansplus.com.au... -
Page 6: Personal Precautions
Do not allow untrained persons to operate the jack. Secure the load, trailer, and vehicle by chocking all the wheels before using. Do not place your hands between moving components. Black Jack Trailer Jack® Maxi User Manual V1 © More information https://www.caravansplus.com.au... -
Page 7: Electrical Safety
Do not adjust the drop foot while there is a load on the Black Jack. You must have the manual handle installed and held firmly in place before unlocking the manual over-ride. -
Page 8: Assembly & Installation
Also apply the vehicle’s parking brake. Mount the Black Jack bracket to the chassis using the 4 bolts and lock nuts. Slide the tube into the Black Jack Mounting Bracket hole. Guide the foot plate into the jack’s leg. -
Page 9: Operation
1 0 . O P E R A T I O N The UP/DOWN switch is OFF in its natural position. Press UP to extend the Black Jack and DOWN to retract the Black Jack. WARNING: When the Black Jack is fully extended or fully retracted the Intelli-Brake system will automatically cut power to the motor. -
Page 10: Unhitching The Trailer
Raise the foot plate upwards until the bolt holes in it align with the bolt hole in the leg. Insert the locking pin and close the clasp. Extend the Black Jack until the trailer is clear of the tow hitch. -
Page 11: Manual Override
1 5 . C A R E & M A I N T E N A N C E Maintain the device with care. A Black Jack in good condition is efficient, easier to control and will have few problems. Inspect the device components periodically. -
Page 12: Optional Folding Foot
The silver steel foot is the traditional adjustable foot. You can manually adjust the height and it will tuck up under the chassis tightly. The Black Jack folding foot will automatically drop from the horizontal position to the verticle position when the leg is extended saving time and without the need to manually adjust the foot. - Page 13 When installing the folding foot, make sure the Black Jack orientation allows for full clearance of the folding foot. This may mean rotating the orientation of the Black Jack. If the folding foot cannot be installed so that it is clear of obstructions, then DO NOT USE IT.
-
Page 14: Troubleshooting
The manual override requires the won’t spin ball-bearing worm drive’s brake to be release before you can manually operate the jack. Please see Section 14, page 11 for more information. Black Jack Trailer Jack® Maxi User Manual V1 © More information https://www.caravansplus.com.au... - Page 15 Normal operating range for a 300kg load is 8 amps retracting (DOWN) and up to 18 amps extending (UP). At a maximum weight of 2000kg, the Black Jack pulls 28 amps extending. So under normal operation the 30-amp fuse should not blow.
-
Page 16: Warranty & Parts
1 8 . W A R R A N T Y & P A R T S All replacement parts are available on the Black Jack Trailer Jack web site: www.blackjacktrailerjacks.com.au For warranty replacement contact Titan RV Unit 5 Euro Business Park... -
Page 17: Compliance
NOT considered to be ignition sources. The Black Jack has been tested by an independent third party laboratory in Victoria and found to be compliant with the standard. - Page 18 A B O U T B L A C K J A C K ® Black Jack® Trailer Jacks is a division of Titan Stability Solutions Pty Ltd trading as Titan RV. Our range of brands include: Hydraulic auto levelling system for motorhomes, caravans, specialty vehicles and 5th wheelers.
- Page 19 C O N T A C T U S Black Jack® Trailer Jacks is a division of Titan Stability Solutions Pty Ltd Titan RV Unit 5 Euro Business Park 26-34 Weippin Street Cleveland QLD 4163 AUSTRALIA +61 07 3286 1199 info@blackjacktrailerjacks.com.au...
