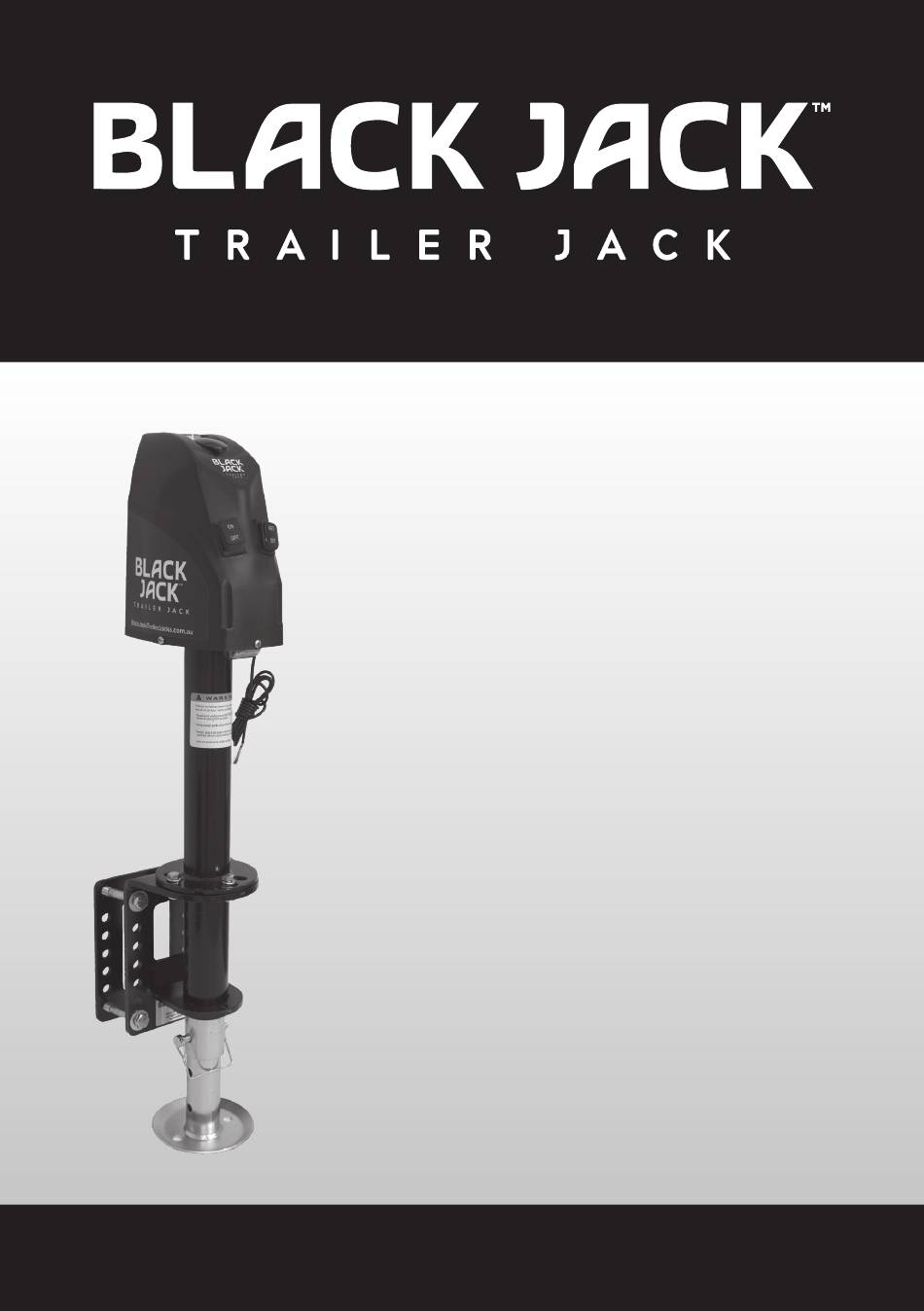

U S E R M A N U A L
Black Jack™ Trailer Jack
1,600kg 12V DC
P/N: BJTJ-1000
Please read and understand all instructions
before use. Retain this manual for future reference.
www.blackjacktrailerjacks.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BJTJ-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Black Jack BJTJ-1000

  • Page 1 U S E R M A N U A L Black Jack™ Trailer Jack 1,600kg 12V DC P/N: BJTJ-1000 Please read and understand all instructions before use. Retain this manual for future reference. www.blackjacktrailerjacks.com.au...
  • Page 3: Table Of Contents

    13. Unhitching The Trailer 14. Hitching The Trailer 15. Manual Override 16. Care & Maintenance 17. Lubrication 18. Troubleshooting 19. Wiring Diagram 20. Intellectual Property 21. Compliance 1,600 KG 12V DC A-Frame Black Jack Trailer Jack™ User Manual V2.6 ©...
  • Page 4: Specifications

    1,800kg trailer tongue weight. The jack is predrilled to fit with the Patented Black Jack Clamp so that it can be fitted to any A-frame trailer. The Black Jack features an LED light to illuminate the hitch area at night and a built- in leveling gauge.
  • Page 5: Safety

    Store unused devices properly in a safe and dry location to prevent rust or damage. Lock devices away and keep out of the reach of children. Do not install or use in the presence of flammable gases, dust, or liquids. 1,600 KG 12V DC A-Frame Black Jack Trailer Jack™ User Manual V2.6 ©...
  • Page 6: Personal Precautions

    Do not allow untrained persons to operate the jack. Secure the load, trailer, and vehicle by chocking all the wheels before using. Do not place your hands between moving components. 1,600 KG 12V DC A-Frame Black Jack Trailer Jack™ User Manual V2.6 ©...
  • Page 7: Electrical Safety

    Discontinue use if the leads feel more than comfortably warm while operating the device. Keep all connections dry and off the ground to reduce the risk of electric shock. Do not touch the leads with wet hands. 1,600 KG 12V DC A-Frame Black Jack Trailer Jack™ User Manual V2.6 ©...
  • Page 8: Identification Key

    9 . I D E N T I F I C A T I O N K E Y Letter references are in parenthesis (A) refer to the included Identification Key. The Black Jack Trailer Jack also comes with the Black Jack Clamp (Patent Pending NO 20200902039) and the Black Jack All Weather Cover.
  • Page 9: Adjust The Bubble Level

    Once this has been created attached the other end to your chassis rail. Pre-drill and use the Tek Screw provided to connect the earth cable. Remove the foot plate (F) and position it below the hole in the Black Jack Mounting Bracket.
  • Page 10: Operation

    The fully extended leg may not reach the ground. Retract the leg until you have enough room to extend the foot plate. Remove the lock pin and lower the foot plate until it touches the ground. 1,600 KG 12V DC A-Frame Black Jack Trailer Jack™ User Manual V2.6 ©...
  • Page 11: Hitching The Trailer

    Crank counterclockwise to extend the leg. Crank clockwise to retract the leg. Follow the directions for hitching or unhitching the trailer. Replace the crank cap when done and store the crank. 1,600 KG 12V DC A-Frame Black Jack Trailer Jack™ User Manual V2.6 ©...
  • Page 12: Care & Maintenance

    NEVER use a penetrating oil to lubricate the device. Penetrating oil may act as a solvent that can break down the grease and cause the device to seize up. 1,600 KG 12V DC A-Frame Black Jack Trailer Jack™ User Manual V2.6 ©...
  • Page 13: Troubleshooting

    No Power from Check the trailer connector has trailer connector power. Replace or repair the trailer connectors or wiring. 1,600 KG 12V DC A-Frame Black Jack Trailer Jack™ User Manual V2.6 ©...
  • Page 14: Wiring Diagram

    Black Jack Trailer Jacks™ is a registered trademark in Australia owned by Titan Stability Solutions Pty Ltd Patent Pending The Black Jack Clamp is a registered patent pending in Australia (Patent Pending NO 20200902039). Registered Design The Black Jack Clamp is a registered design pending in Australia.
  • Page 15: Compliance

    NZS 5601.2.2013 (Standard) The Standard requires that an “ignition source” cannot be located within the clearances of an exchange gas cylinder as set out in the diagram below. The 1,600 KG 12V DC A-Frame Black Jack Trailer Jack™ User Manual V2.6 ©...
  • Page 16 All hard-wired terminal connections are located within the plastic cover head housing. Based on A. to D. above, the 12 volt DC components in the Black Jack, whilst being deemed “electrical equipment” are not considered an ignition source in keeping with the Australian Standard’s broad definition that includes “naked flames, welding arcs etc., that are sufficient to ignite a flammable mixture”.
  • Page 17 A B O U T B L A C K J A C K ™ Black Jack™ Trailer Jacks is a division of Titan Stability Solutions Pty Ltd Our range of brands include: Gone are the days where you must settle for a cheap ball mount that rusts the first time it rains.
  • Page 18 C O N T A C T U S Black Jack™ Trailer Jacks is a division of Titan Stability Solutions Pty Ltd Titan Stability Solutions Pty Ltd Unit 5 Euro Business Park 26-34 Weippin Street Cleveland QLD 4163 AUSTRALIA +61 07 3286 1199 sales@blackjackstrailerjacks.com.au...
