Econox E-FD Product Manual

Fire damper
Hide thumbs

Advertisement

Table of Contents

Product manual
E-FD
E-FD
Fire damper
Fire protection
Version 2.5.0
Issue Date: 01.07.2024.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-FD and is the answer not in the manual?

Questions and answers

Related Manuals for Econox E-FD

Summary of Contents for Econox E-FD

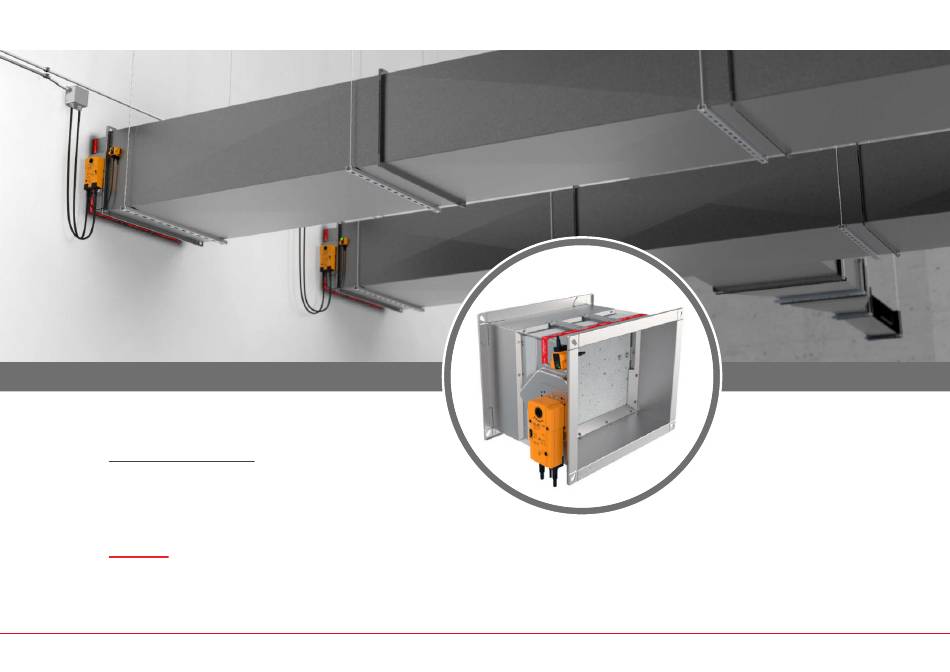

  • Page 1 Product manual E-FD E-FD Fire damper Fire protection Version 2.5.0 Issue Date: 01.07.2024.
  • Page 2 Manual spring return mechanism is equipped with thermal control signal. All electric actuators are equipped with end Fire dampers E-FD are used for prevention of ore spread fuse that is triggered automatically when the temperature switches for position signalling.

  • Page 3: Tests And Certificates

    All our dampers are submitted to a number of tests by Performance. Walls or ceilings with greater ore resistance E-FD ore resistance is tested according to EN 1366-2 oïcial test institutes. Reports of these tests form the <Fire resistance tests for service installations- Part 2: Fire can also be used.

  • Page 4: Technical Data

    ** Stainless steel not posible with MF1, MF2, Applique Fire damper for areas with potentially explosive atmospheres are also available PRODUCT OVERVIEW FIRE DAMPER - E-FD Product speciocations Rating plate 1 - Casing air leakage classification Nominal sizes E-FD25 100x200 - 800x600 [mm]...
  • Page 5 Fire damper with integrated MF2 installation frame with and ore classiocation up to EI90S. Sizes range from 100x200 till 1500x800. PRODUCT OVERVIEW FIRE DAMPER - E-FD Ordering key Actuators 95 °C. E-M230-S-ST actuator is additionally equipped with connection for easy connection with power supply and communication...
  • Page 6 " E-FD25 ore dampers are equipped with E-R25 " manual mechanism E-FD40 ore dampers are equipped with E-R40 " manual mechanism DIMENSIONS FIRE DAMPER - E-FD Product [mm] [mm] [mm] [mm] Length of damper blade outside of casing: E-FD 25...
  • Page 7 Manual closing possible EMS - solenoid actuator is constantly under pow- " er. Actuating mechanism is tripped when the power is interrupted, or thermal fuse is melted. DIMENSIONS FIRE DAMPER - E-FD Product [mm] [mm] [mm] [mm] Length of damper blade outside of casing:...
  • Page 8 Integrated end switches " " Fully automatic operation MAINTENANCE AND OPERATION Optional 95 °C thermoelectric release device " for warm air installations DIMENSIONS FIRE DAMPER - E-FD Length of damper blade outside of casing: Actuator [mm] [mm] [mm] [mm] BFL (M) X=(H/2)-175...
  • Page 9 ExPro-TT 2) Electric actuator Schischek E-ExMax-5.10- 3) Terminal box Schischek ExBox-BF For more information see page 51. DIMENSIONS FIRE DAMPER - E-FD Length of damper blade outside of casing: Ex classiocation of product: B+ 60 X=(H/2)-175 [mm] B+ 30 II 2G Ex h IIC T6 Gb II 2D Ex h IIIC T80°C Db...
  • Page 10 " Made out of calcium silicate boards Quick wall mounting with screws " Factory assembled to the ore damper " FIRE DAMPER - E-FD DIMENSIONS E-FD25-APP-R E-FD25-APP-EMS E-FD25-APP-M B + 30 B + 30...
  • Page 11 MAINTENANCE AND OPERATION " Made out of calcium silicate boards Quick wall mounting with screws " Factory assembled to the ore damper " DIMENSIONS FIRE DAMPER - E-FD E-FD25-MF1-M E-FD25-MF1-R E-FD25-MF1-EMS B+196 B+196 B+196 83,5 83,5...
  • Page 12 Made out of calcium silicate boards Quick wall mounting with screws " Factory assembled to the ore damper " E-FD25-MF2 possible only for shaft wall " installations! DIMENSIONS FIRE DAMPER - E-FD E-FD40-MF2-R / E-FD40-MF2-EMS E-FD25-MF2-R E-FD25-MF2-EMS B+196 B+196 B+196 B+60 B+60...
  • Page 13 18,8 19,8 20,8 21,8 29,9 31,2 32,6 33,9 35,2 36,5 37,9 39,2 40,5 41,9 43,2 44,5 45,8 47,2 FIRE DAMPER - E-FD 10,5 11,5 12,6 13,6 14,7 15,8 16,8 17,9 19,0 20,0 21,1 22,2 23,2 31,9 33,4 34,8 36,2 37,6...
  • Page 14 13,8 14,3 14,5 15,4 16,3 17,2 18,1 19,0 19,9 20,8 21,7 22,6 23,5 24,5 25,4 26,3 27,2 FIRE DAMPER - E-FD FIRE DAMPER - E-FD 10,3 10,8 11,3 11,8 12,3 12,8 13,3 13,8 14,3 14,8 15,4 16,3 17,2 18,1 19,0 19,9 20,8 21,7 22,6 23,5 24,5...
  • Page 15 0.49 0.40 0.31 0.22 0.19 0.17 0.17 0.16 0.15 0.15 0.15 0.14 0.13 0.13 0.13 FIRE DAMPER - E-FD FIRE DAMPER - E-FD ZETA VALUES E-FD40 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 200 11.64 9.56 7.48...

  • Page 16: Installation

    FIRE DAMPER - E-FD To help you ond the suspension plane, a bendable oxing bracket is provided on the damper body (the use of bendable...
  • Page 17 E-FD25: EI 60 (iµo)S ceiling / noor, more than 100 mm thick Eurobond Firemaster Extra 300Pa (≥ 23 kg/m E-FD40: EI 60 (iµo)S FIRE DAMPER - E-FD FIRE DAMPER - E-FD Eurobond Firemaster Extra, Mineral wool E-FD40: EI 90 (iµo)S 300Pa Battery 2x2, 1x2, 2x1 (≥...
  • Page 18 / floor, more than 100 mm thick ceiling / floor, more than 100 mm thick ceiling / noor, more than 100 mm thick (≥ 2200kg/m³) Aerated concrete FIRE DAMPER - E-FD FIRE DAMPER - E-FD ( ≥ 550 kg/m³) Rigid wall Reinforced concrete REMOTE FROM WALL ≥...
  • Page 19 Installation material: mortar (C). Possible damper orientations INSTALLATION FIRE DAMPER - E-FD 1. Recommended wall opening for the ore damper installation is B (H) + 80 mm or more (up to 50% more). Bend the oxing bracket (A) 90°. Place the damper in the opening up to the wall limit mark (B) on the damper.
  • Page 20 (minimum density of 100 kg/m³) covered with plasterboard cover boards (D). Possible damper orientations INSTALLATION FIRE DAMPER - E-FD E-FD-A-CSP-BxH *Multiple ore dampers can be installed next to each other or ceiling/wall with the minimal distance of 30 1. Recommended wall opening...
  • Page 21 Installation material: mineral wool (C) (minimum density of 140 kg/m³), ore protection coating (D). Possible damper orientations FIRE DAMPER - E-FD INSTALLATION 1. Recommended wall opening for ore *Multiple ore dampers can be installed next to each damper installation is B(H) + 300 mm, other or ceiling/wall with the minimal distance of but openings from B(H) + 80&450 mm...
  • Page 22 70 mm. Installation material: gypsum plaster or mortar (C), covered with plasterboard cover boards (D). Possible damper orientations INSTALLATION FIRE DAMPER - E-FD E-FD-A-CSP-BxH *Build the support for installation according to the drawing, 1. Recommended wall opening for see page 50.
  • Page 23 60 kg/m³ can be used). FIRE DAMPER - E-FD INSTALLATION 1. Recommended wall opening for the ore damper installation is B (H) + 80 mm or more (up to 50% more). Build the subframe according to the drawing, 50.
  • Page 24 60 kg/m³ can be used). INSTALLATION FIRE DAMPER - E-FD 1. Recommended wall opening for the ore damper installation is B (H) + 80 mm or more (up to 50% more). Build the subframe according to the drawing, 50.
  • Page 25 (mineral wool (E) with density up to 60 kg/m³ can be used). FIRE DAMPER - E-FD INSTALLATION 1. Recommended wall opening for ore ore protection coating. Damper casing should be damper installation is B(H) + 300 mm, coated up to proole nanges.
  • Page 26 Installation material: Mineral wool (minimum density , ore protection coating. of 140 kg/m Possible damper orientations FIRE DAMPER - E-FD INSTALLATION 1. Recommended wall opening for side). Seal the connections of mineral wool with ore damper installation is B(H) + 300 intumescent ore resistant sealant (D).
  • Page 27 Rockwool Firepro 50 mm tick sealed with intumescent ore resistant sealant. Possible damper orientations INSTALLATION FIRE DAMPER - E-FD Create the wall. See technical drawing. 1. Make the opening in the wall B + 80 mm x H + 80 mm on the connection of two boards. The...
  • Page 28 Possible damper orientations INSTALLATION FIRE DAMPER - E-FD 4. Place the vertical part and two horizontal parts from the installation kit to the dampers on both sides, and attach it using the self-tapping screws 1. Prepare a hole of dimensions every 150 mm.
  • Page 29 (70 kg/m3) (E), thickness of the wool is 40 mm. Possible damper orientations FIRE DAMPER - E-FD INSTALLATION 1. Create an opening in the wall B + 80 mm x H + 80 mm, 30mm below the ceiling.
  • Page 30 (115 kg/m3) (E), thickness of the wool is 50 mm. Possible damper orientations INSTALLATION FIRE DAMPER - E-FD 1.Prepare subconstruction and cladding of the wall with gypsum boards acc. to technical drawing. Take care that cladding of the wall is...
  • Page 31 Installation material: gypsum plaster or mortar (C). Possible damper orientations INSTALLATION FIRE DAMPER - E-FD 1. Recommended wall opening for the ore damper installation is B (H) + 80 mm or more (up to 50% more). Bend the oxing bracket (A) 90° (bracket screw hole is 6 mm in diameter).
  • Page 32 100 mm. Installation material: mineral wool (C) (minimum density of 140 kg/m³), ore protection coating (D). Possible damper orientations FIRE DAMPER - E-FD INSTALLATION 1. Recommended noor/ceiling page 32 rigid noor / Test the operation of the damper blade! damper.
  • Page 33 Ducts must be suspended separately. 27mm Possible damper orientations INSTALLATION FIRE DAMPER - E-FD 1. Suspension strut should be connected with drop rods (8/10 mm) to the noor. It is used to support the damper and ease the installation. DETAIL A Detail A 2.
  • Page 34 Ducts must be suspended separately. 27mm Possible damper orientations INSTALLATION FIRE DAMPER - E-FD 1. Suspension strut should be connected with drop rods (8/10 mm) to the ceiling slab above. It is used to support the damper and ease the installation.
  • Page 35 Ducts must be suspended separately. Refers to dampers that are installed less than 80 mm to the ceiling! Possible damper orientations FIRE DAMPER - E-FD INSTALLATION 27mm 1. Create an opening. The opening must be large enough to install the seal! (min.80 mm) Install threaded rods (8 mm) to the ceiling above.
  • Page 36 (minimum density of 2200 kg/ m³) and with a minimum thickness of 100 mm. Possible damper orientations INSTALLATION FIRE DAMPER - E-FD 1. Recommended wall opening for the ore damper installation is B (H) + 80 mm. Damper blade must be closed during installation! 2.
  • Page 37 (minimum density of 995 kg/m³), and with minimum thickness of 70 mm. Possible damper orientations INSTALLATION FIRE DAMPER - E-FD 1. Recommended wall opening for the ore damper installation is B (H) + 80 mm. Damper blade must be closed during installation! 2.
  • Page 38 100 kg/m³ can be used). The minimum thickness of the wall is 100 mm. Possible damper orientations FIRE DAMPER - E-FD INSTALLATION *Create an opening according to the dimension of the ore damper and build the subframe according to the drawing, see page 50.
  • Page 39 (minimum density of 2200 kg/ m³) and with a minimum thickness of 100 mm. Possible damper orientations INSTALLATION FIRE DAMPER - E-FD 1. Recommended wall opening for the ore damper installation is B (H) + 80 mm. Damper blade must be closed during installation! 2.
  • Page 40 (minimum density of 995 kg/m³), and with minimum thickness of 70 mm. Possible damper orientations INSTALLATION FIRE DAMPER - E-FD 1. Recommended wall opening for the ore damper installation is B (H) + 80 mm. Damper blade must be closed during installation! 2.
  • Page 41 Possible damper orientations density up to 100 kg/m³ can be used). The minimum thickness of the wall is 100 mm. FIRE DAMPER - E-FD INSTALLATION * Create an opening according to the dimension of the ore damper and build the subframe according to the drawing, see page 50.
  • Page 42 (minimum density of 550 kg/m³) or reinforced concrete (minimum density of 2200 kg/m³) and with a minimum thickness of 100 mm. Possible damper orientations FIRE DAMPER - E-FD INSTALLATION 1. Recommended opening for the ore damper installation is B (H) + 80 mm.
  • Page 43 20 mm thick, installed on a steel frame construction. Possible damper orientations FIRE DAMPER - E-FD INSTALLATION E-FD-MF2 Fire damper (B < 625 mm) installation E-FD-MF2 Fire damper (B > 625 mm) installation E-FD-MF2 Fire damper installation in 90 mm in 90 mm shaft wall with metal studs in 90 mm shaft wall with metal studs Shaft wall without metal studs (<...
  • Page 44 Installation only possible with E-FD40! MAINTENANCE AND OPERATION Possible damper orientations INSTALLATION FIRE DAMPER - E-FD 1. Recommended wall opening for the ore damper installation is B (H) + 100 mm. Place ore damper and duct on pre-cut calcium silicate 52 mm (Promat L500), 100 mm wide supports (max.
  • Page 45 (minimumdensity of 550 kg/m³) or reinforced concrete (minimum density of 2200 kg/m³) and with a minimum thickness of 100 mm. Possible damper orientations E-FD 25 Wool A-60+60 mm B 60 mm E-FD 40 Wool A-80+30 mm B 80 mm INSTALLATION FIRE DAMPER - E-FD 1.
  • Page 46 CP60- Connecting plate 60 mm CP100- Connecting plate 100 mm FIRE DAMPER - E-FD INSTALLATION 4. Place the vertical part and two horizontal parts from the installation kit to the dampers on both sides, and attach it using the self-tapping screws every 1.
  • Page 47 CF100 - Connecting frame 100 mm CP60- Connecting plate 60 mm CP100- Connecting plate 100 mm INSTALLATION FIRE DAMPER - E-FD should be olled with mineral wool (density 100kg/m³ 1. Prepare a hole of dimensions casing and concrete slab. 2B + Connecting frame width (CF60/ or higher).
  • Page 48 200 ... 1500 [mm] Type CF60 - Connecting frame 60 mm CF100 - Connecting frame 100 mm FIRE DAMPER - E-FD INSTALLATION 4. Fill the space between the dampers and the wall 1. Prepare a hole of dimensions with mortar.
  • Page 49 Type CF60 - Connecting frame 60 mm CF100 - Connecting frame 100 mm INSTALLATION FIRE DAMPER - E-FD Test the operation of the damper blade! 1. Prepare a hole of dimensions 2B + Connecting frame width (CF60/ CF100) + 140 mm and H + 80 mm.
  • Page 50 2. Insert the ore dampers into the wall and oll the space between the casings with mineral wool up to nanges. Fill the space between the wall/ceiling FIRE DAMPER - E-FD FIRE DAMPER - E-FD with mineral wool up to nanges.
  • Page 51 REPLACEMENTS (B+80)/2 MAINTENANCE AND OPERATION (B+80) (B+80) INSTALLATION FIRE DAMPER - E-FD FIRE DAMPER - E-FD Support for installation with mortar In ore damper installations with mortar, it may getting hardened. Before olling the gap between be necessary to use wooden supports to prevent...

  • Page 52: Wiring Diagram

    72 °C. E-R25 E-R40 (up to 800x600) (800x600 up to1500x800) ACTUATORS FIRE DAMPER - E-FD Technical speciocations Wiring diagram E-R25 E-R25 manual actuator is installed on E-FD25 ore Nominal voltage dampers range from 100x200 till 800x600. It is...
  • Page 53 Thermal fuse melting point is 72 °C. E-EMS-S mechanism is the same for E-FD25/E-FD40 ore dampers. ACTUATORS FIRE DAMPER - E-FD Technical speciocations Wiring diagram Nominal voltage Solenoid: 24/48 VDC...
  • Page 54 95 °C (inside or outside duct). If checking is needed for proper functioning of ore damper, pushing the switch on the thermal tripping device will close damper. FIRE DAMPER - E-FD ACTUATORS Technical speciocations When switch on tripping device is released, the Wiring diagram damper will open.

  • Page 55: Electric Actuator

    Thermal fuse is located on the same side Thermal fuse is located on the same side of the ore damper. as Belimo actuator (below). as Belimo actuator (above). MAINTENANCE AND OPERATION ACTUATORS FIRE DAMPER - E-FD FIRE DAMPER - E-FD Bottom view Side view Side view...
  • Page 56 Thermal tripping device that comes with ore damper causes power circuit break at a temperature of 72 °C (inside or outside duct). FIRE DAMPER - E-FD ACTUATORS Technical speciocations Wiring diagram...

  • Page 57: Spare Parts

    E-FD-A 800x600 Circular connections - Are used to connect the E-FD-A accessories for rectangular fire damper CMB - Communication module bracket circular ventilation ducts to the rectangular ore CSP - GKF boards kit (for both sides of the installation) SG1 - Safety grill on operation side CIRC - Circular connection dampers.
  • Page 58 - 400x300 - 24 2) Length of 3 times hydraulic diameter, in the size E-FD-A - Accessories for fire damper BxH nominal size of the rectangular fire damper of the connecting duct, should be after the sensor. dh=(2xHxB)/(H+B)s, dh - hydraulic duct diameter.
  • Page 59 2. Rotate the smoke sensor casing (90°-180°-270°). REPLACEMENTS 3. Fix the screws following the fourth step of smoke sensor MAINTENANCE AND OPERATION rotation. REPLACEMENTS FIRE DAMPER - E-FD FIRE DAMPER - E-FD SMOKE SENSOR ROTATION Smoke sensor assembly is supplied in standard airnow direction.
  • Page 60 DIMENSIONS INSTALLATIONS ACTUATORS ACCESSORIES REPLACEMENTS MAINTENANCE AND OPERATION REPLACEMENTS FIRE DAMPER - E-FD FIRE DAMPER - E-FD UPGRADE TO END CONTACTS (E-R40 E-R40-S) 1. Locate hex screw, unscrew it and remove the cover. 2. Insert CEE (E-R25)/CEDC (E-R40) board in the appropriate place.
  • Page 61 (E-FD-A-E-R40S-KIT). Before upgrade E-R25/RS25-S to EMS, it is ACCESSORIES necessary to install E-R40 mechanism (E-FD-A-E-R40) and kit REPLACEMENTS for end contacts (E-FD-A-E-R40S-KIT). MAINTENANCE AND OPERATION To upgrade to EMS you need to use the EMS kit!
  • Page 62 ACTUATORS (E-R25) ACCESSORIES REPLACEMENTS MAINTENANCE AND OPERATION FIRE DAMPER - E-FD REPLACEMENTS 1. Find the hex screw located on the cover. Unscrew and remove the screw and the cover. 2. Find the hex screw on the thermal fuse and unscrew it.
  • Page 63 ACTUATORS (E-R40) ACCESSORIES REPLACEMENTS MAINTENANCE AND OPERATION FIRE DAMPER - E-FD REPLACEMENTS 1. Find the hex screw located on the cover, unscrew and remove the screw and the cover. 2. Remove the position indicator sleeve. 3. Locate the 3 hex screws. Unscrew them.
  • Page 64 Belimo BFN E-FD-A-KTB E-FD-A-KTC Belimo BF FIRE DAMPER - E-FD REPLACEMENTS Indicator cut on NOTE: Use kit according to table (upgrade to NOTE: Install the thermal fuse in a place where it will not interfere with the operation of the...
  • Page 65 E-FD-A-KTA Belimo BFN E-FD-A-KTB E-FD-A-KTC Belimo BF FIRE DAMPER - E-FD REPLACEMENTS Indicator cut on BE transition plate NOTE: Install the thermal fuse in a place where it will not interfere with the operation of the NOTE: Use kit according to table (upgrade to...
  • Page 66 MAINTENANCE AND OPERATION ERK Kit (E-FD-A-ERK) " transition plate " rectangular shaft 2x screws M6x30 " FIRE DAMPER - E-FD REPLACEMENTS Indicator cut Indicator cut 1) Locate the 2 hex screws, unscrew and remove actuator. 2) Remove FA transition plate and rectangular shaft.

  • Page 67: Maintenance And Operation

    Provide at least one annual check of the damper " " Do not expose the ore damper to the efects of 1) Carefully unpack E-FD ore damper - be careful of sharp After each intervention, provide a systematic cleaning " "...
  • Page 68 (i.e. screwdriver, hex wrench) max. 7 mm in diameter, into the yellow/ silver part and rotate the arrow to the open position. MAINTENANCE FIRE DAMPER - E-FD ELECTRIC ACTUATOR 1. Test the operation of the damper blade by pushing the test button.
  • Page 69 FIRE DAMPER - E-FD...
