Satco NUVO HI-PRO S13170 Installation And Safety Instructions

HI-PRO LED WORK LIGHT
Models: S13170, S13171, S13172
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing fixture. Retain for future reference.
WARNING:
• Please read this manual carefully before use, make sure the
application is in accordance with the instructions before use.
• To reduce the risk of electric shock and fire, do not exceed
string maximum wattage including any additional string loads.
Maximum number of connection lamps:
120V : 60W – 10PCS, 100W – 6PCS,
277V : 60W – 23PCS, 100W – 13PCS, 150W – 9PCS
• Suitable for dry and damp locations.
• Disconnect the power to avoid shock when the equipment is wet.
• This device is not intended for use with emergency exits.
• This lamp should not be installed in high heat or corrosive
environments or in a sealed environment.
• To reduce the risk of electric shock and fire, ensure the surface of
the work light is clean and free of any debris or liquids.
• Please check the product carefully after opening the package. If
product is damaged, please keep the packaging and contact the
local dealer.

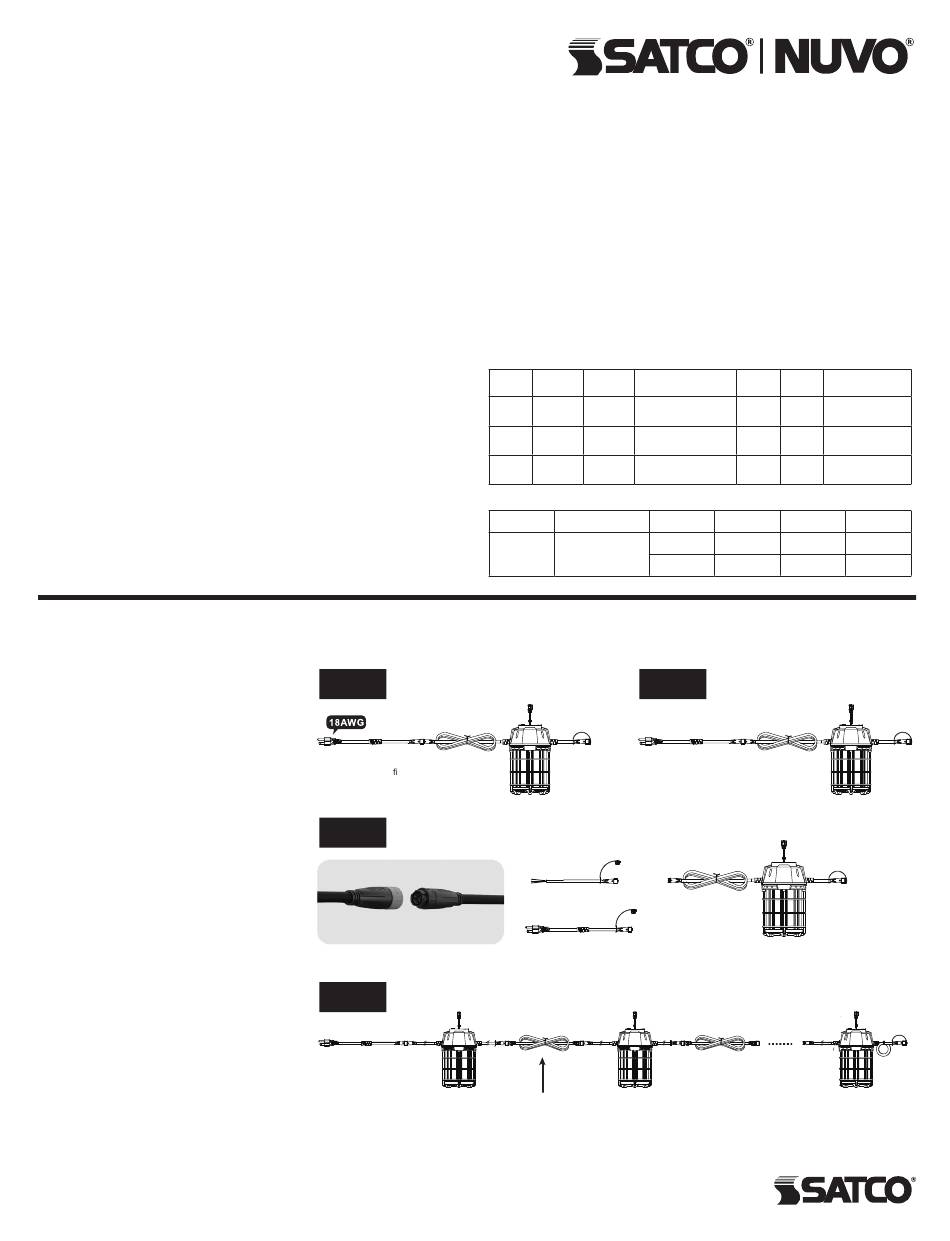

INSTALLATION INSTRUCTIONS
• Turn OFF power before installation.
• For one product, follow installation
steps: 1, 2 and 3.
• For two or more products, follow
installation steps: 1, 2, 3 and 4.
• Close the Cap of the last lamp,
when no other lamp connections
are needed.
• Turn ON power.
Max number of ganged lamps
and fuse reset:
The maximum number of lamps is
determined by the chart above.
Exceeding the maximum number
of fixtures could open the fuse.
To reset the fuse in the case of an
overload, unplug the extra lamps for
a minimum of 10 seconds. Then
reconnect the plugs and turn the
lamps back on.
Follow the information below regarding
maximum weight requirements:
S13170 : 24lbs per set
S13171 : 26lbs per set
S13172 : 30lbs per set
Ensure the fixed wall or object is
durable and in good condition and
able to hold the maximum weight
stated above.
© Copyright 2024 Satco Products, Inc. 02/24 v2.0
150W – 4PCS
STEP 1
Hang on secure xed wall or object
by the base hook.
STEP 3
STEP 4
10' EXTENTION CORD (80/862 )
25' EXTENSION CORD (80/863 )
Connect the plug and socket to make sure two or more lamps are joined together.
PRODUCT FEATURES AND SPECIFICATIONS
The new generation Hi-Pro LED Work Lights are designed with handle
and lamp pads, making it suitable for use as portable lights. The
lamp also features a hook structure, providing convenient hoisting
capabilities. The lamp is designed to IP64 standards, which can be
used in a dry or damp environment. The custom plug and socket
feature allows for the selection of either 120V or 277V operation and
the connection of two or more lamps (see maximum linking chart).
The lamp has a wide luminous angle and high power, making it
well-suited for installation in open work spaces.
Light
Watt Input Lamp Dimension
Effect
5.12" x 5.12" x 9.17"
60W 120–277V 120Im/W
(130 x 130 x 233mm)
5.12" x 5.12" x 10.94"
100W 120–277V 120Im/W
(130 x 130 x 278mm)
5.12" x 5.12" x 12.13"
150W 120–277V 120Im/W
(130 x 130 x 308mm)
Maximum Linkable Quantity
Cord Built-In Smart Fuse
18AWG 5A
STEP 2
Plug in and TURN ON the power
(AC 120V-277V).
277V adapter
120V plug
If used in the 277V application, remove the 120V plug,
connect the 277V ADAPTER (80/861).
Wire Lamp
Length Base Temperature
-22° to +113°F
6 FT HOOK
(-30˚C to 45˚C)
-22° to +113°F
6 FT HOOK
(-30˚C to 45˚C)
-22° to +113°F
6 FT HOOK
(-30˚C to 45˚C)
Voltage 60W 100W
120V 10pcs 6pcs
277V 23pcs 13pcs
Satco Products, Inc.
Brentwood, NY 11717
Operating
150W
4pcs
9pcs
