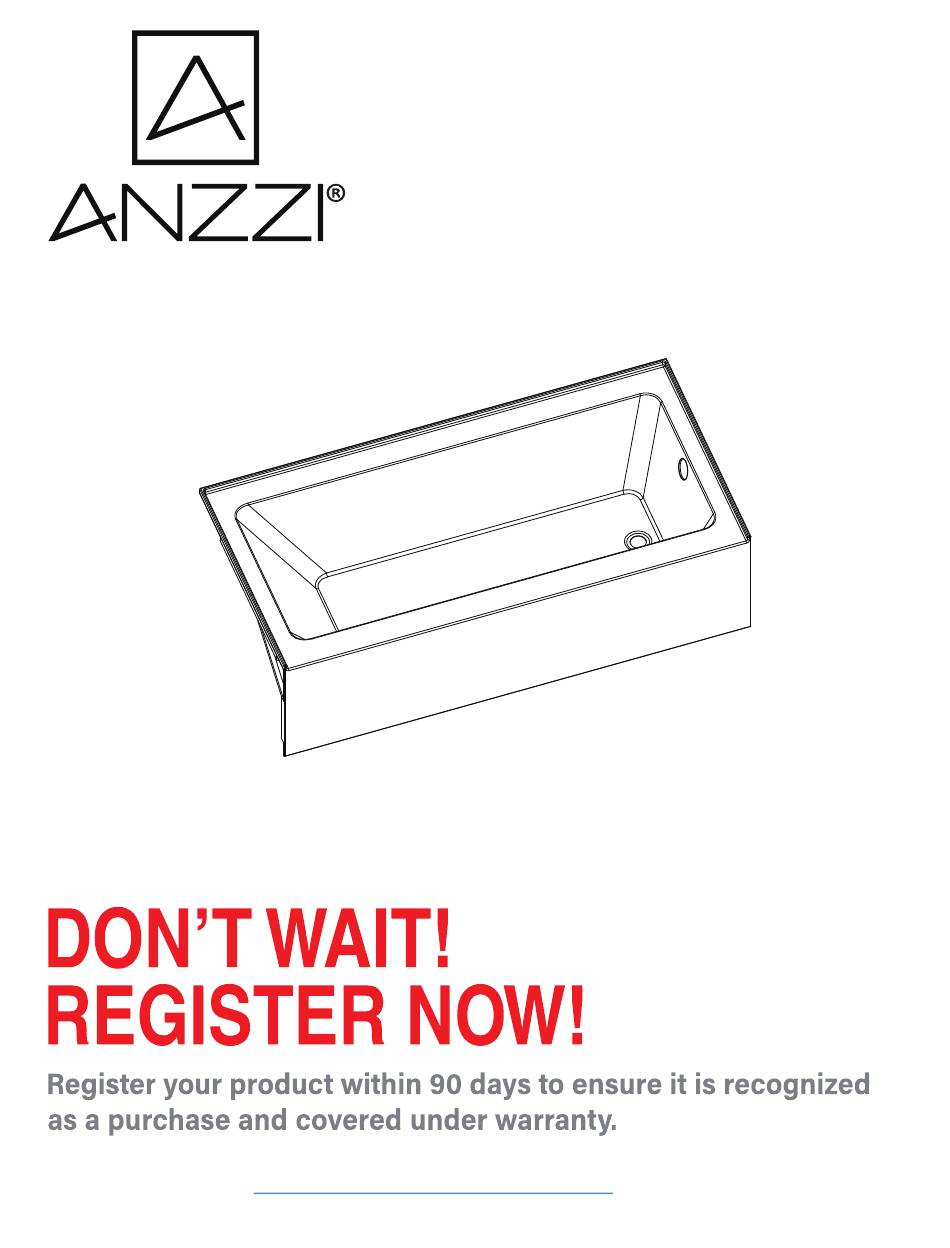

- Page 1 ITEM: AZ3060SHR-16 / AZ3060SHL-16 ALCOVE BATHTUB INSTALLATION & OPERATION MANUAL V2.0 12/23/2024 Register online at https://anzzi.com/pages/register or scan the QR code on PG. 2. V 2.0-This version supersedes all previous versions as of 12/23/2024...
- Page 2 IMPORTANT: Warranty will not be recognized unless product is registered. https://anzzi.com/pages/register Register online at or Scan the QR code below. Registering your product maximizes your warranty benefits and ensures prompt service and support. USE YOUR PHONE CAMERA FILL IN A QUICK...
- Page 3 " [50 mm] " [84 mm] CUT OUT IN FLOOR FOR DRAIN 10.2" [260 mm] 60" [1522 mm] 14" [355 mm] " 16.9" 15.9" (Depth) [65 mm] [430 mm] [405 mm] Have questions? Call us at or visit us at www.ANZZI.com...
- Page 4 COULD RESULT IN AN IMPROPER INSTALLATION AND COULD VOID THE WARRANTY. IMPORTANT SAFETY INSTRUCTIONS. INSTRUCTIONS IMPORTANTES RELATIVES A LA SECURITE. READ AND FOLLOW ALL INSTRUCTIONS. LIRE ET SUIVRE TOUTES LES INSTRUCTIONS. SAVE THESE INSTRUCTIONS. CONSERVER CES INSTRUCTIONS. Have questions? Call us at or visit us at www.ANZZI.com...
- Page 5 Prote t our tu TESTING THE TUB ater can a er t ater t 30 m TEST THE BATHTUB WHILE YOU HAVE ACCESS TO THE BOTTOM AND BEFORE PERMANENT INSTALLATION. Have questions? Call us at or visit us at www.ANZZI.com...
- Page 6 TOOLS AND MATERIALS Screwdriver Tape Measure Level Drill Adjustable Wrench #6 or #8 1-1/4" 100% SILICON Drill Bit 3/16" (5 mm) Caulk Marker Pen stainless or zinc plated truss head screws Have questions? Call us at or visit us at www.ANZZI.com...
-
Page 7: Installation
Note: Do not use plumber’s putty to seal access its underside. the drain flange, as it may deteriorate the acrylic surface and cause damage. Instead, use an appropriate sealant if required. Have questions? Call us at or visit us at www.ANZZI.com... -
Page 8: Drain Installation
Thread the Easy Touch (G) mechanism into the shoe strainer (H) and tighten it securely. Tighten all slip joint connections firmly. Test the entire drainage system by filling the tub with water to the overflow opening. Inspect for any leaks. Have questions? Call us at or visit us at www.ANZZI.com... - Page 9 Note: Avoid drilling directly into the studs. Use a drill bit holder extension to reduce the risk of the drill chuck damaging the bathtub panels. Have questions? Call us at or visit us at www.ANZZI.com...
- Page 10 Fill the bathtub with water and NOTE: Follow manufacturer’s inspect for potential leaks. instructions for sealant curing Allow the water to sit for 24 hours time before use. before draining. Have questions? Call us at or visit us at www.ANZZI.com...
- Page 12 D M I TE • Use only mild, non-abrasive cleaning products to clean the bathtub. Harsh chemicals or abrasive tools can damage the acrylic surface. • Wipe the bathtub dry after each use to prevent the buildup of soap scum and mineral deposits.
