Aiphone ROAMER WP100A Installation & Operation Manual

- G AIPHONE
WIRELESS ROAMER SYSTEM
Integration of Aiphone's
Intercom and Paging system
with 900MHz Cordless Phone
WP100A Wireless Telephone Router
ANA9500 900MHz Phone
Used with Aiphone's
• MC-60/4A and MC-3 Market Com
• TD-H Selective Call Intercom
- INSTALLATION & OPERATION MANUAL -
\

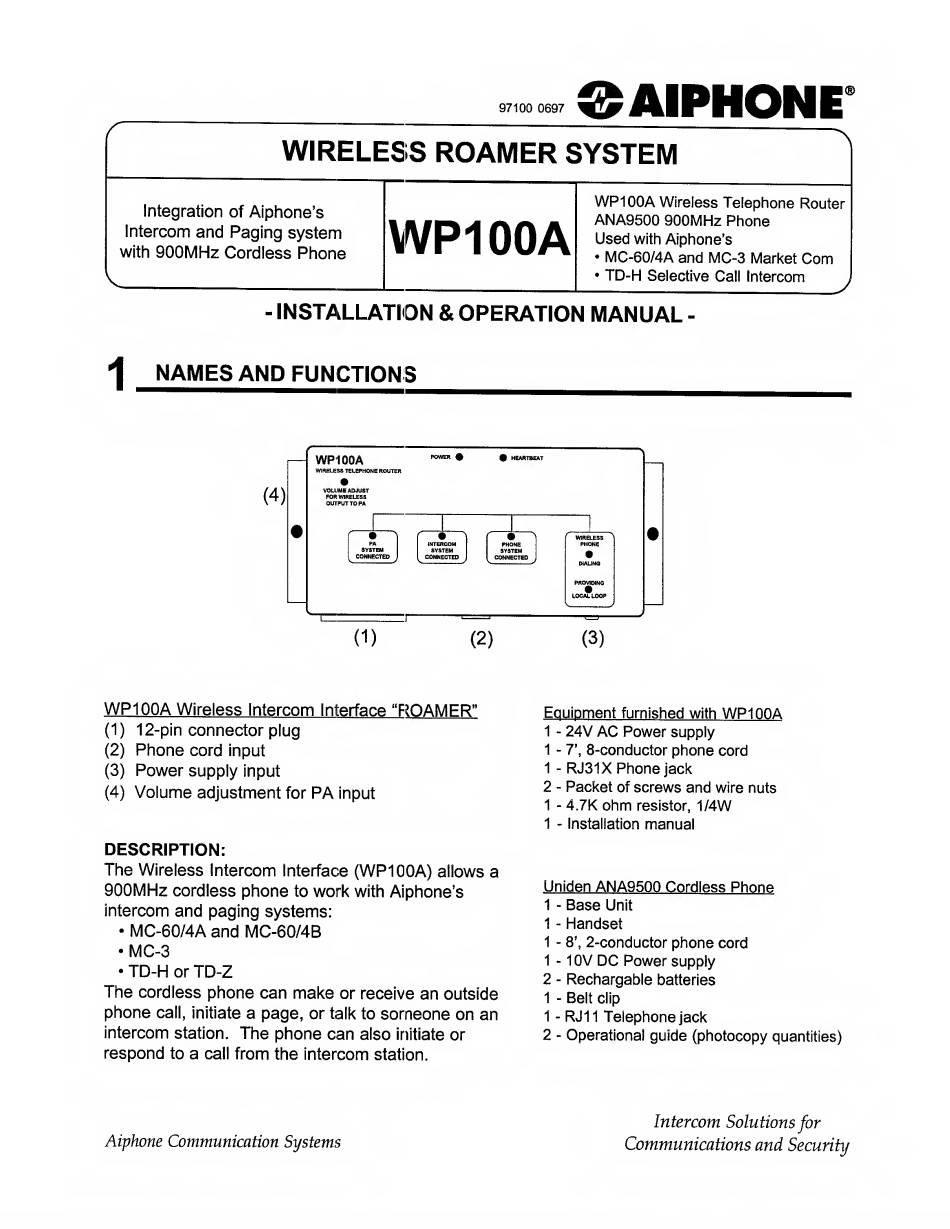

NAMES AND FUNCTIONS
WP100A Wireless Intercom Interface "ROAMFR"
(1) 12-pin connector plug
(2) Phone cord input
(3) Power supply input
(4) Volume adjustment for PA input
DESCRIPTION:
The Wireless Intercom Interface (WP100A) allows a
900MHz cordless phone to work with Aiphone's
intercom and paging systems:
• MC-60/4A and MC-60/4B
•MC-3
• TD-H or TD-Z
The cordless phone can make or receive an outside
phone call, initiate a page, or talk to someone on an
intercom station. The phone can also initiate or
respond to a call from the intercom station.
Equipment furnished with WP1Q0A
1 - 24V AC Power supply
1 - 7', 8-conductor phone cord
1 - RJ31X Phone jack
2 - Packet of screws and wire nuts
1 - 4.7K ohm resistor, 1/4W
1 - Installation manual
Uniden ANA9500 Cordless Phone
1 - Base Unit
1 - Handset
1 - 8', 2-conductor phone cord
1 - 10V DC Power supply
2 - Rechargable batteries
1 - Belt clip
1 - RJ11 Telephone jack
2 - Operational guide (photocopy quantities)
