Introduction
FEATURES:
• Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
• Converts 2 x Dante® audio channels to balanced / unbalanced audio outputs
• Switchable 48V Phantom power for each MIC XLR input
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
• Adjustable line gain from +20 dBu to -28 dBV for each XLR output
• Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 12V DC adapter (supplied) for when network switch does not support PoE
• Magnetic faceplate surround allowing for both UK & EU backbox compatibility
Contact:
support@blustream.com.au

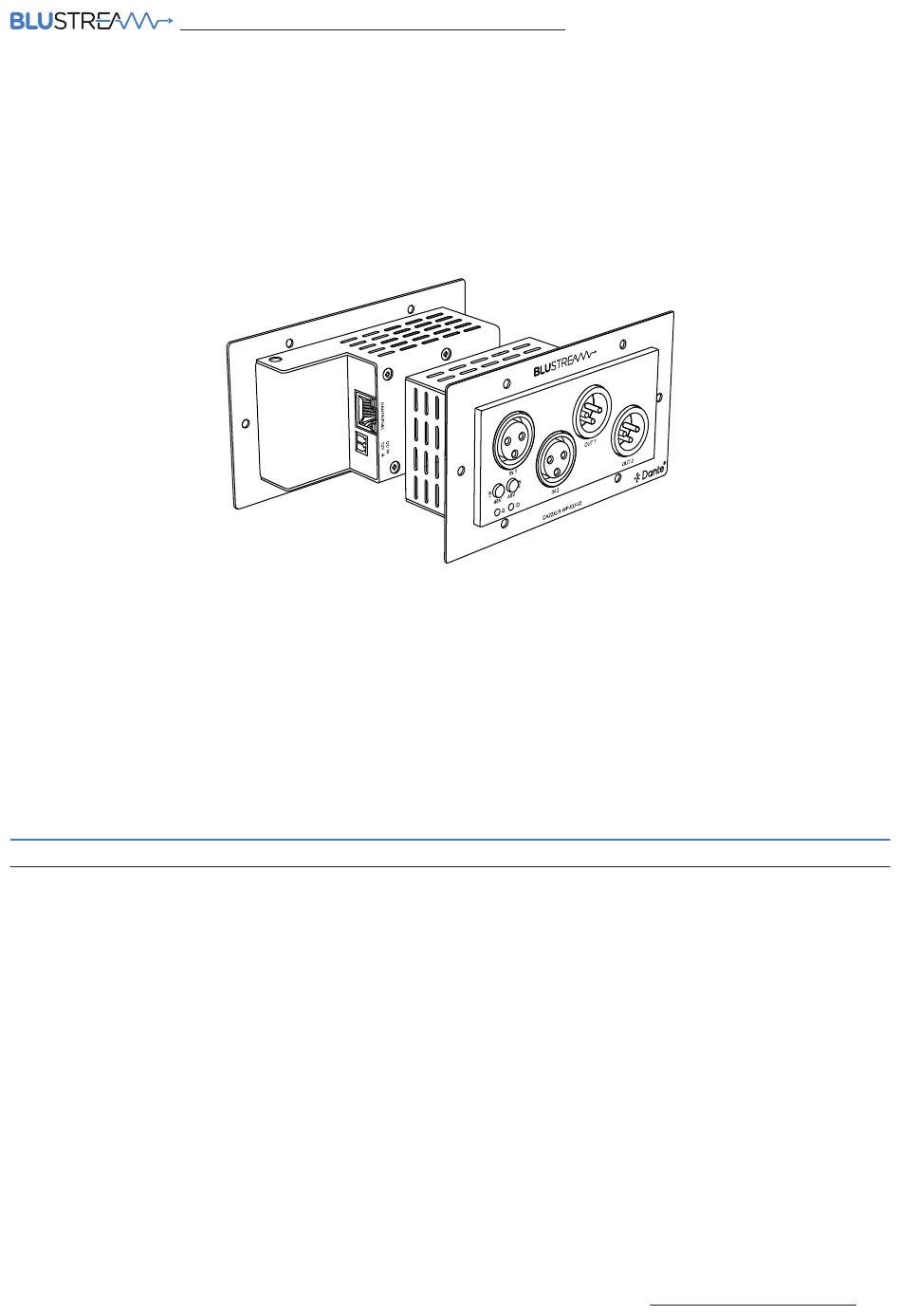

Quick Reference Guide
The DA22XLR-WP is a multi-input / output wall plate to convert analogue audio
within a digital Dante® networked audio system. The DA22XLR-WP features 2 input
channels of balanced / unbalanced / MIC audio with switchable 48v phantom power
and 2 output channels of balanced / unbalanced audio.
The DA22XLR-WP is a plug & play device that is powered using PoE (Power over
Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport
and magnetic faceplate design allows for both UK & EU backbox compatibility. The
DA22XLR-WP is the ideal BYOD interface to a Dante® audio system.
|
support@blustream-us.com
DA22XLR-WP-EU-V2
|
support@blustream.co.uk
QUICK REFERENCE GUIDE
