- Page 1 HD11CTRL-V2 User Manual RevA0_HD11CTRL-V2_User_Manual...
- Page 2 HD11CTRL-V2 USER MANUAL Contents Thank you for purchasing Introduction this product. Features For optimum performance and safety, please read these instructions carefully before connecting, operating or Panel Descriptions adjusting this product. Please keep this manual for future reference. EDID Management...
- Page 3 USER MANUAL Introduction Our HD11CTRL-V2 HDMI in-line controller is an automated room control solution including display on / off control via CEC, RS-232, IR or IP when a HDMI signal is sensed on the input. External relay inputs allow third party triggers for integration with devices such as sensors or switches.
-

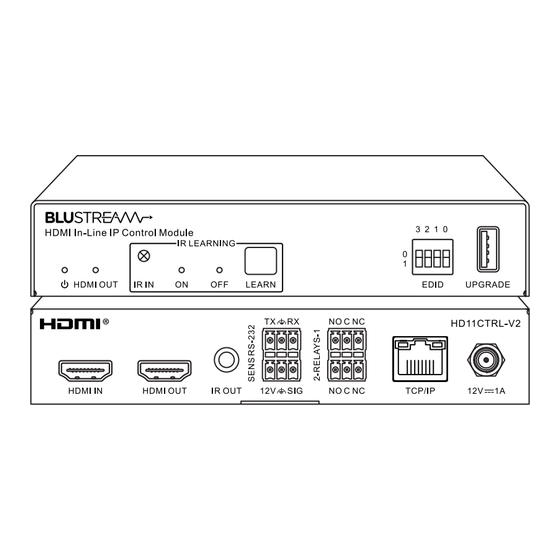

Page 4: Front Panel

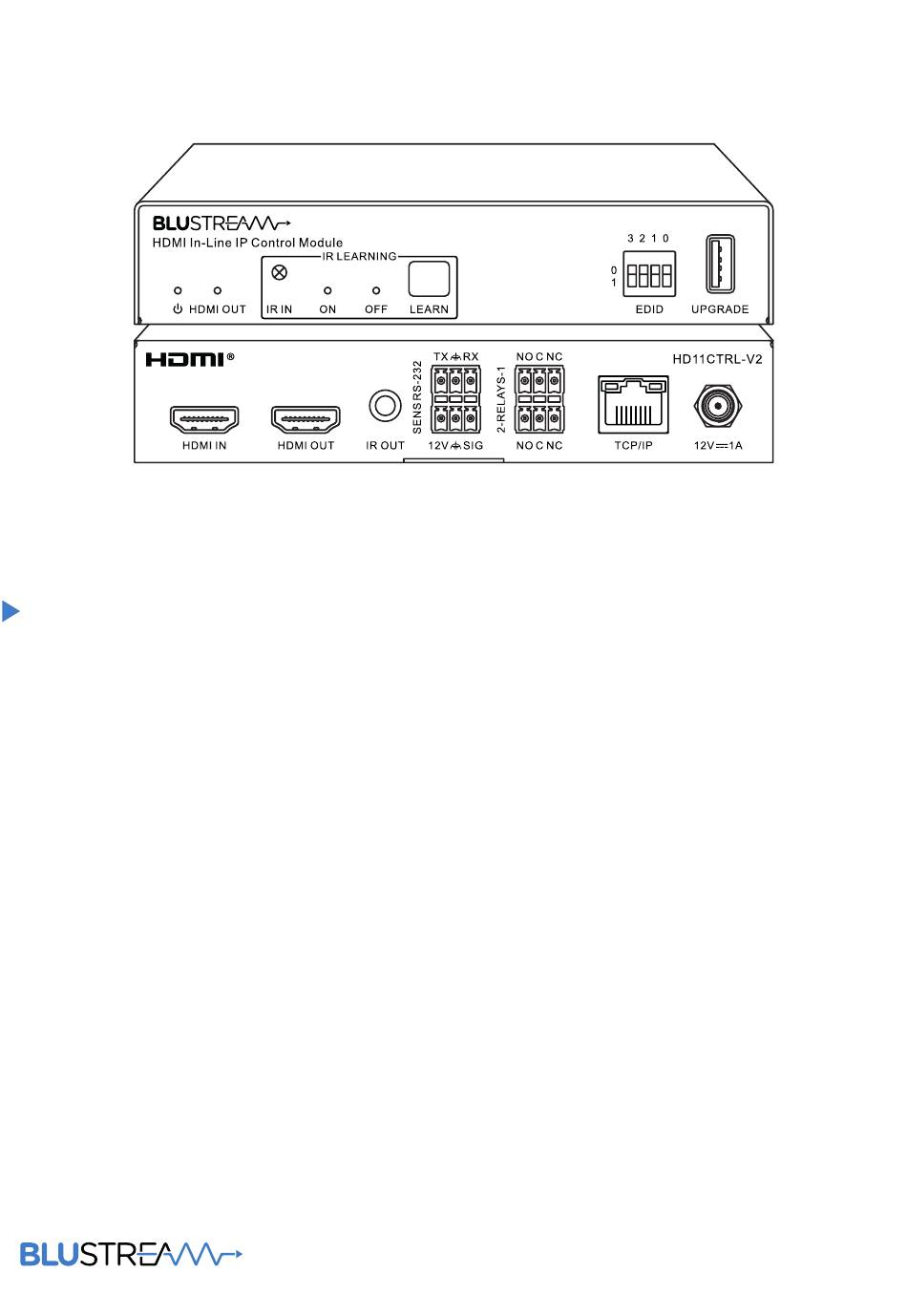

HD11CTRL-V2 USER MANUAL Front Panel Power LED Indicator - Illuminates when the device is powered HDMI Output LED Indicator - Illuminates when the device has an active connection to a display IR Learning IR In - IR receiver used for learning IR commands to be used with auto on / off trigger... - Page 5 The Software EDID preset allows EDID selection via the devices web GUI, or for a custom EDID to be loaded into the HD11CTRL-V2. This is used for sources that may output non-standard resolutions or video formats. EDID Type Combination of DIP positions 1080p 60Hz 2.0ch...
-
Page 6: System Off
Automatic System On / Off Control The HD11CTRL-V2 is designed to automate basic control of AV equipment within a room without the need for a 3rd party control system. It can control devices via CEC, RS-232, IR, relay and signal sense. Its key function is to turn the system on when a HDMI signal is sensed, and turn it off when that signal is lost. -
Page 7: Signal Sensing
Signal Sensing The HD11CTRL-V2 also has the ability to be triggered via signal sense from a device feeding it a voltage such as a PIR sensor. The sensor port features +12V DC and ground to power a PIR sensor, as well as a signal input that triggers when the circuit is closed or grounded. -
Page 8: Webgui Control
This following pages take you through the operation of the HD11CTRL-V2's Web-GUI. You must connect the TCP/IP RJ45 socket to your local network in order to access the products Web-GUI. By default the HD11CTRL-V2 is set to DHCP, however if a DHCP server (eg: network router) is not installed the IP address will revert to below details: Default IP Address is: 192.168.0.200... -
Page 9: Configuration Page
HD11CTRL-V2 USER MANUAL Guest Control Page The Guest Control Page allows a guest to recall pre-defined macros that have been configured. Simply select the square that corresponds with the macro you wish to recall. Configuration Page The Configuration Page allows a user to see the status of the relays as well as enable or disable the front panel hard keys, enable or disable the automtic output image scaler, as well as set the EDID for the HDMI input. - Page 10 On this page you can enable or disable IR control and specify IR functions such as delay between sending commands and repeat intervals. The HD11CTRL-V2 also allows for up to 30 IR commands to be learned and stored in internal memory.
- Page 11 RS-232 Test Page The RS-232 Test Page allows for sending our an RS-232 command via the HD11CTRL-V2. Commands can be sent out in either ASCII or HEX format, and the baud rate can be adjusted accordingly. Please note this page is purely to test the functionality of the HD11CTRL-V2 RS-232 port and the connected RS-232 device.
-
Page 12: Network Page
HD11CTRL-V2 USER MANUAL Network Page The Network Page allows you to specify the TCP/IP network port settings. You can choose from Static IP or DHCP, as well as specify a fixed IP Address, Subnet Mask and Gateway. It is also possible to change or disable the Telnet port. - Page 13 HD11CTRL-V2 USER MANUAL Diagnostics Page The Diagnostics Page provides document Admin Page The Admin Page allows the admin to configure up to 8 users. Each user can adjust their password via this page as well. The Admin, or Users who have been given Admin permissions, are able to allocate permissions to Users. These permissions include allowing or disallowing access to each page in the Web GUI.
-
Page 14: Rs-232 Control Port
RS-232 Control Port The HD11CTRL-V2 can be controlled and configured via a 3-pin Phoenix to serial RS-232 cable (supplied). All RS-232 commands must be terminated with a carriage return <CR> or \r. The communication settings and commands are as follows:... - Page 15 HD11CTRL-V2 USER MANUAL RS-232 COMMAND DESCRIPTION Load the custom external EDID from USB, then save it into slot xx EDIDSAVE xx xx = 22: User EDID 1 xx = 23: User EDID 2 RELAY1 xxx Set The Relay 1 Delay Time To xxx (Default 10s, Range From 3s To 180s, 00=Fixed Open)
-
Page 16: Specifications
TCP/IP HDMI RS-232 Specifications Package Contents HD11CTRL-V2 HD11CTRL-V2 • 1 x HD11CTRL-V2 Video Input Connectors: 1 x HDMI Type A, 19-pin, female • 1 x 12V/1A DC Power Supply Video Output Connectors: 1 x HDMI Type A, 19-pin, female •... - Page 17 HD11CTRL-V2 USER MANUAL Certifications FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
