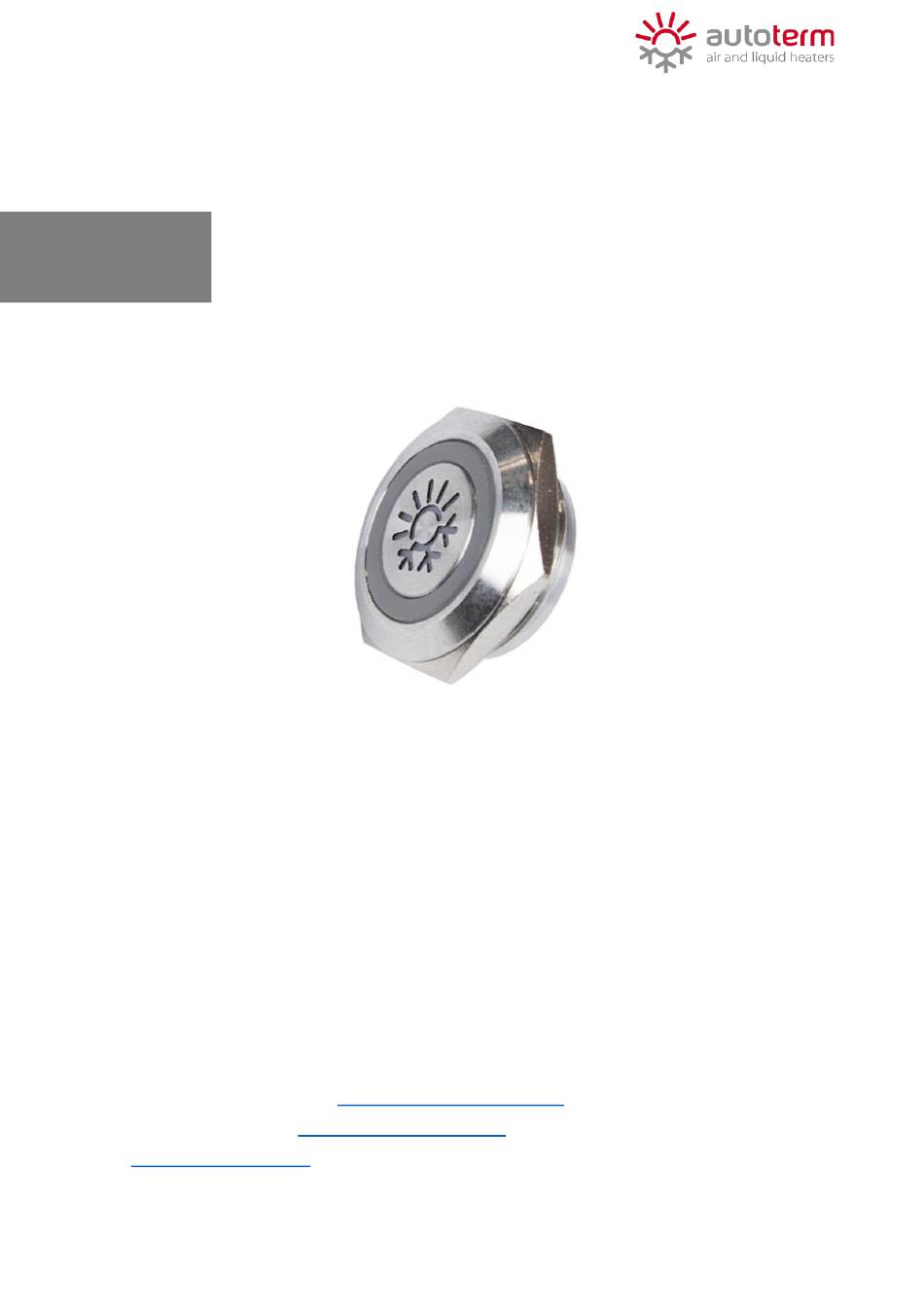

- Page 1 Push Control User’s manual Manufacturer: AUTOTERM LLC Paleju 72, Marupe, Latvia, LV-2167 Warranty Department warranty@autoterm.com Technical Support service@autoterm.com www.autoterm.com 09.2024 - v1.2...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..........................3 SAFETY INSTRUCTIONS ........................3 PACKAGE CONTENT ........................5 PRODUCT MODELS ......................... 5 INSTALLATION ..........................5 GENERAL OPERATION CONDITIONS ....................6 OPERATION WITH AIR HEATERS ....................7 OPERATION WITH FLOW HEATERS ....................8 ADDITIONAL CONTROL PANEL ....................... 9 10. -
Page 3: Introduction
Your requirements, so its quality satisfies every customer. AUTOTERM Push Control is designed to be simple and intuitive to use, to ensure the best experience when it comes to controlling your climate. It being designed as a small and compact control device for AUTOTERM heaters to simplify heater’s control as much as possible, as well to... - Page 4 Risk of fire and explosion When installing Push Control, heater must be shutdown. Please ensure this and do not take off your heater from power supply while it won’t shutdown completely. Note: the shutdown process can take up to 10 minutes.
-
Page 5: Package Content

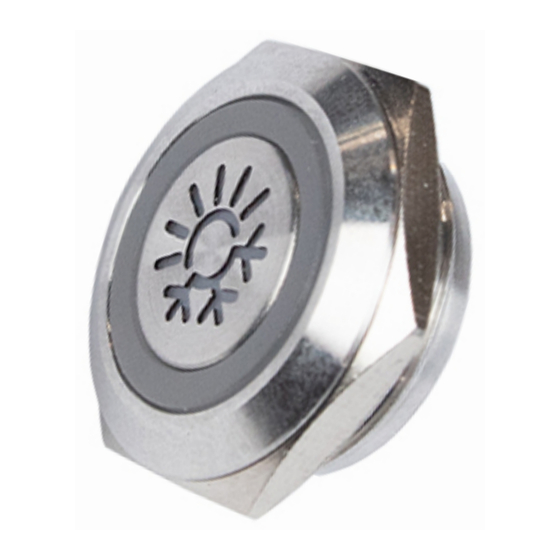

PACKAGE CONTENT AUTOTERM Push Control kit contents: AUTOTERM Push Control LED RGB momentary, made from stainless steel, with mounting nut; Sealing ring; Push Control module; Connection wire from the heater to the Control module 30 cm; Connection wire from the Control module to the Push Control – 2 meters;... -
Page 6: General Operation Conditions
GENERAL OPERATION CONDITIONS Starting your heater. To start the heater with the Push Control, press and hold the button for more than 1 second, the LED will light up, indicating that the heater is in state and will start to operate. -
Page 7: Operation With Air Heaters
With the Air heaters, by default, the Push Control operates in power settings ranging from min to max power. Each press and each power setting are represented by the corresponding LED light. In case of a heater or Push Control malfunctions, the LED will flash red (Error codes you can find below). -
Page 8: Operation With Flow Heaters
OPERATION WITH FLOW HEATERS The Push Control commands follow one after another in a circle so to go from operation for 2 hours to turning off the heater, you must press the button 2 times in succession. -
Page 9: Additional Control Panel
This applies for all Flow 5 heaters and the new Flow 14D heaters (MO-5260 and MO-5255), also known as Flow 14D v2. Please take note that all previous generations of AUTOTERM FLOW 14D heaters do not have the option to adjust the following settings: •... -
Page 10: Error Codes
ERROR CODES Number of Red LED Description Fault cause blinks The sensor sends a signal to shut down the heater. The Overheating of the heat exchanger. heat exchanger temperature in the sensor zone is over 250°C. Possible overheating at the intake temperature The control unit is insufficiently cooled down for 5 min. - Page 11 Number of Red LED Description Fault cause blinks Insufficient fuel supply, faulty fuel pump or faulty flame Flame failure during operation of the heater. indicator. The electric motor of the air blower does not No communication between the controller and the develop the necessary speed.
