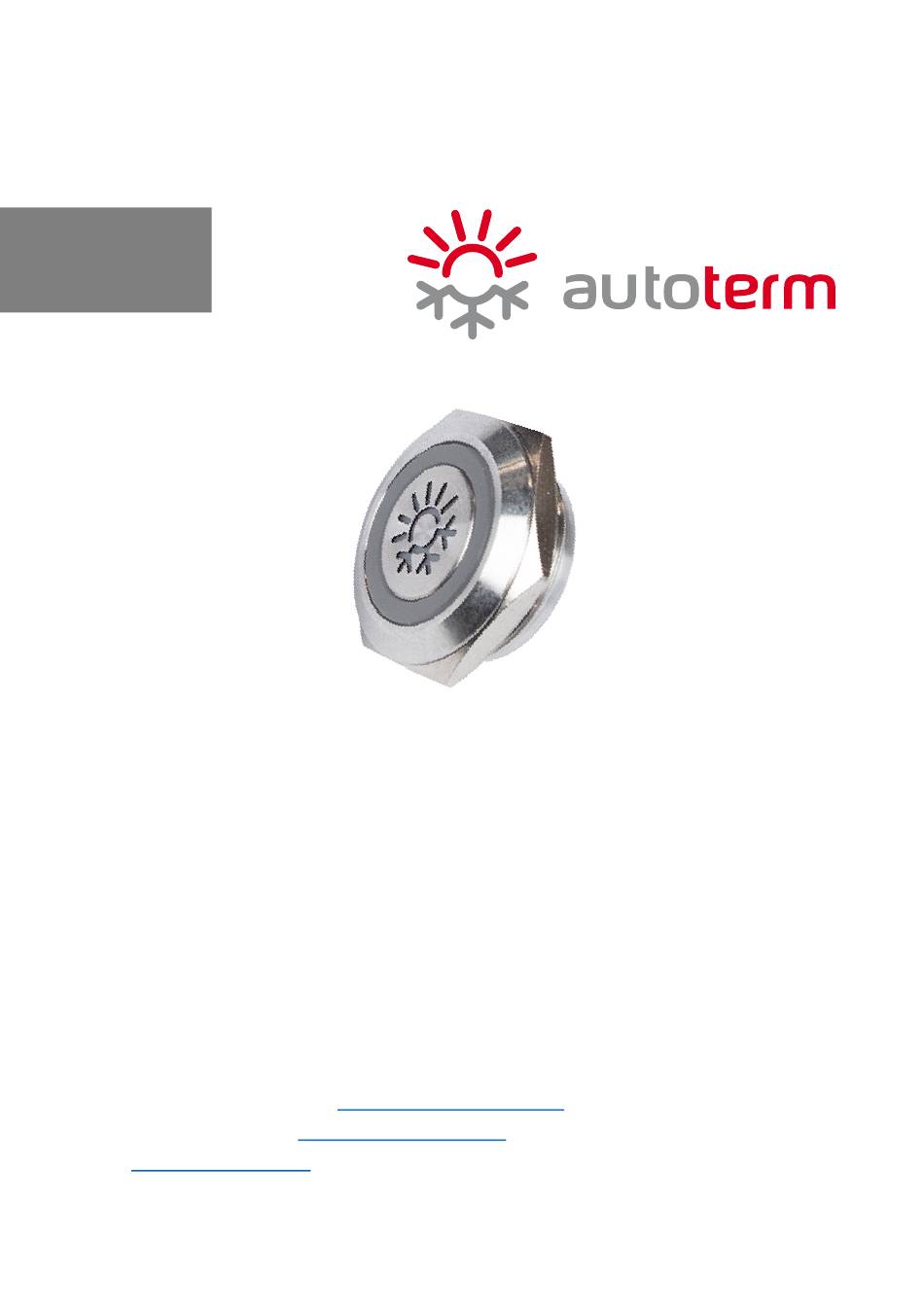

- Page 1 Push Control User’s manual Manufacturer: AUTOTERM LLC Paleju 72, Marupe, Latvia, LV-2167 warranty@autoterm.com Warranty Department service@autoterm.com Technical Support www.autoterm.com 07.2024 - v1.0...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION........................3 CONNECTION........................... 3 INSTALLATION.......................... 4 OPERATION WITH AIR AND FLOW HEATERS................5 STOPING THE HEATER......................6 ERROR CODES.......................... 7 PACKAGE CONTENT......................... 7... -
Page 3: Introduction
6mm Molex connector After connecting the module to the heater, successful connection with the heater is indicated by LED flash RED/Green when it stops, it indicates that AUTOTERM Push Control has successfully connected with the heater. The Push Control module has 3 connection ports:... -
Page 4: Installation
INSTALLATION The AUTOTERM Push Control is a device that has a separate control box (control module) and LED RGB Push Button momentary that is made from stainless steel. The control module must be mounted in a secured and dry environment as the module by itself does not have any ingress protection. -
Page 5: Operation With Air And Flow Heaters
• Blue - 2h • Red - Infinite operation time For Flow heaters, settings like coolant temperature, and fan initiation temperature are stored inside the heaters settings and can be adjusted with Comfort Control or the AUTOTERM diagnostic tool with software. -
Page 6: Stoping The Heater
• Coolant pump ON in Wait mode STOPING THE HEATER To stop the heater with the AUTOTERM Push Control, press and hold the button for more than 1 second, the LED will blink between Blue and RED colors, indicating that the heater is... -
Page 7: Error Codes
ERROR CODES Number of Red LED Description Fault cause blinks The sensor sends a signal to shut down the heater. The heat Overheating of the heat exchanger exchanger temperature in the sensor zone is over 250°C. Possible overheating at the intake The control unit is insufficiently cooled down for 5 min. -
Page 8: Package Content
18°C = blue 21°C = green 23°C = yellow NOTE! After power disconnection from the heater or the Push Control module, this setting will be replaced with the default mode or temperature mode if the external temperature sensor is connected.
