AC DISCHARGE CONTROLLER
AC DISCHARGE CONTROLLER MANUAL
Kaufman & Robinson, Inc
Kaufman & Robinson, Inc.
1306 Blue Spruce Drive Unit A
1330 Blue Spruce Drive
Fort Collins, Colorado 80524
Tel: 970-495-0187, Fax: 970-484-9350
Fort Collins, Colorado 80524
Internet: www.ionsources.com
Tel: 970-495-0187, Fax: 970-484-9350
Internet: www.ionsources.com
©
Copyright
2009 by Kaufman & Robinson, Inc.
All rights reserved. No part of this publication may
Copyright © 2011 by Kaufman & Robinson, Inc.
be reproduced without written permission.
All rights reserved. No part of this publication
June 2009
may be reproduced without written permission.
Version 1.0
May 2011, Version 2
MODEL AC1006
MODEL AC1006
MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kaufman & Robinson AC1006
Summary of Contents for Kaufman & Robinson AC1006
- Page 1 AC DISCHARGE CONTROLLER AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 MODEL AC1006 MANUAL Kaufman & Robinson, Inc Kaufman & Robinson, Inc. 1306 Blue Spruce Drive Unit A 1330 Blue Spruce Drive Fort Collins, Colorado 80524 Tel: 970-495-0187, Fax: 970-484-9350 Fort Collins, Colorado 80524 Internet: www.ionsources.com...
- Page 2 KSC 1202 POWER SUPPLY CONTROLLER MANUAL For DC Gridded Ion Source ® This Page Is Intentionally Blank _______________________________________________________________________ Copyright © 2014 by Kaufman & Robinson, Inc., 1330 Blue Spruce Drive, Fort Collins, CO 80524 Tel: 970-495-0187, Fax: 970-484-9350, Internet: www.ionsources.com...
-
Page 3: Table Of Contents
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 CONTENTS Contents 1 GENERAL INFORMATION ................1-1 1.1 Introduction ..................... 1-1 1.2 Safety ..................... 1-1 1.3 Specifications ..................1-2 1.4 Dimensions ..................... 1-2 1.4.1Weight ..................... 1-2 1.4.2 AC Input ..................1-2 1.4.3 AC Output ..................1-2 2 INSPECTION AND INSTALLATION .............. - Page 4 AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 CONTENTS Figures Figure 2-1 AC Discharge Controller front panel..........2-4 Figure 2-2 AC Discharge Controller rear panel..........2-5 Figure 2-3 Operating cable electrical connector..........2-6 Tables Table 2-1 Inventory List ................... 2-1 Table 3-1.
-
Page 5: General Information
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 GENERAL INFORMATION 1 GENERAL INFORMATION 1.1 Introduction The Kaufman & Robinson, Inc. AC Discharge Controller is designed for use with a Kaufman & Robinson Electron Source. The intended use of this controller is to provide AC voltage and current to the Electron Source neutralizer for ion production and neutralization of the ion beam. -
Page 6: Specifications
Inc. 1.3 Specifications The following specifications pertain to the Kaufman & Robinson, Inc., AC Dis- charge Controller, Model: AC1006. 1.4 Dimensions The controller is designed to be mounted in a standard 19-inch (48.3 cm) rack mount cabinet. The height of this controller is 1.75 inches (4.45 cm) and its depth is approximately 21 inches (53.3 cm). -
Page 7: Inspection And Installation
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 INSPECTION AND INSTALLATION 2 INSPECTION AND INSTALLATION This section describes how to install the Kaufman & Robinson, Inc., KRI® AC Dis- charge Controller, which has been designed for operation of a KRI Electron Source, LFN2000. -
Page 8: Rear Panel
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 INSPECTION AND INSTALLATION displayed. The middle button switch selects if the front panel discharge set point control is (local) or if programming inputs from the rear panel (remote) will determine the output settings for the supply. -
Page 9: Cooling
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 INSPECTION AND INSTALLATION controllers. Install the controller in the rack mount cabinet prior to making any electrical connections. 2.4.2 Cooling This controller is forced air cooled with the airflow entering through a vent in the back panel of the chassis. -

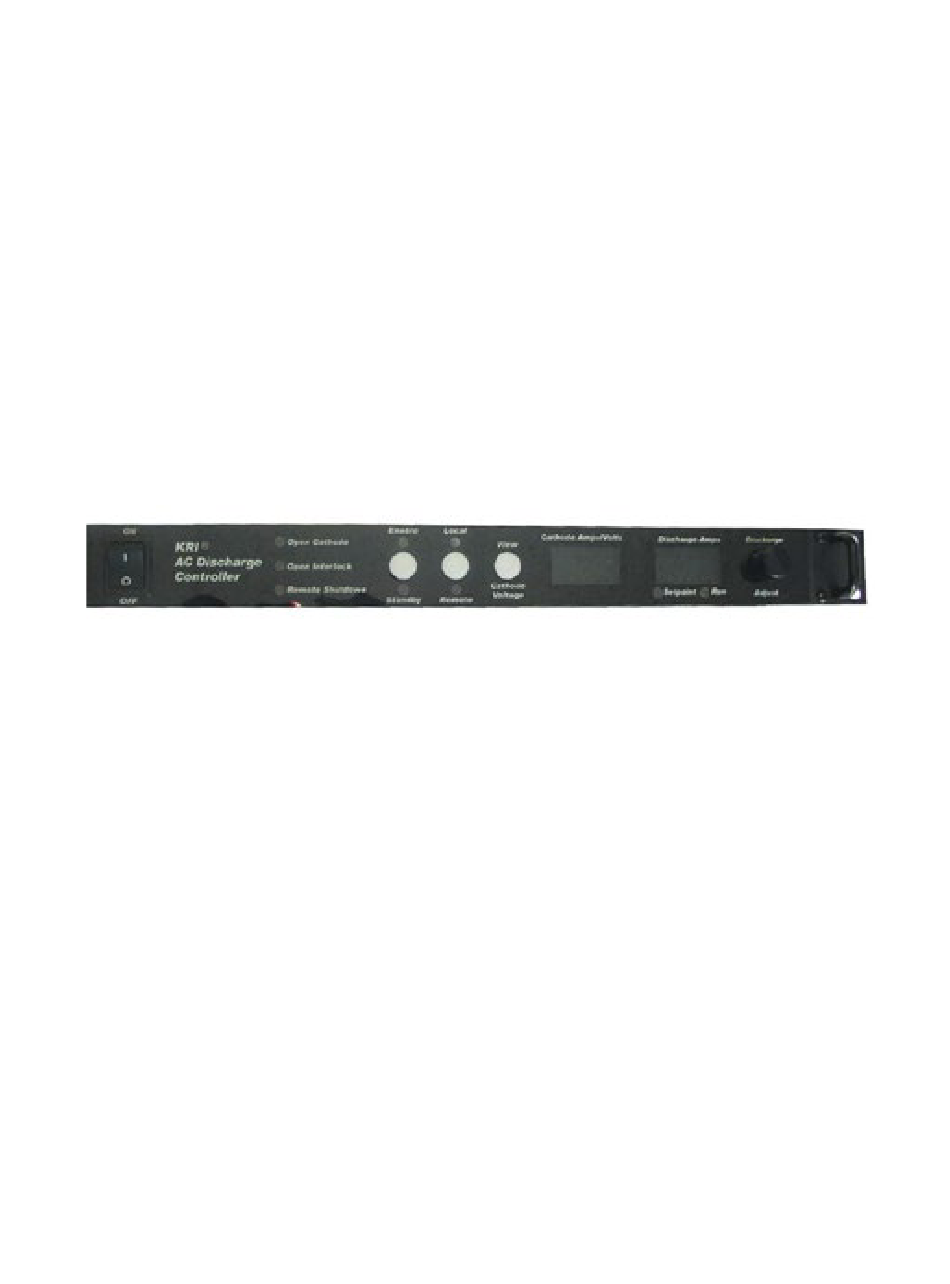

Page 10: Figure 2-1 Ac Discharge Controller Front Panel
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 INSPECTION AND INSTALLATION Figure 2-1 AC Discharge Controller front panel. _______________________________________________________________________ Copyright © 2010 by Kaufman & Robinson, Inc., 1330 Blue Spruce Drive, Fort Collins, CO 80524 Tel: 970-495-0187, Fax: 970-484-9350, Internet: www.ionsources.com... -
Page 11: Figure 2-2 Ac Discharge Controller Rear Panel
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 INSPECTION AND INSTALLATION Figure 2-2 AC Discharge Controller rear panel. _______________________________________________________________________ Copyright © 2010 by Kaufman & Robinson, Inc., 1330 Blue Spruce Drive, Fort Collins, CO 80524 Tel: 970-495-0187, Fax: 970-484-9350, Internet: www.ionsources.com... -
Page 12: Figure 2-3 Operating Cable Electrical Connector
AC DISCHARGE CONTROLLER MANUAL INSPECTION AND INSTALLATION MODEL AC1006 ________________________________________________________________________ INSPECTION AND INSTALLATION Figure 2-3 Operating cable electrical connector. Fig 2-3 Operating cable electrical connector.. ________________________________________________________________________ © ® Copyright by Kaufman & Robinson, Inc. 1306 Blue Spruce Drive, Unit A, Fort Collins, CO 80524 Tel: 970-495-0187, Fax: 970-484-9350, Internet: www.ionsources.com... -
Page 13: Operation
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 OPERATION 3 OPERATION The AC Discharge Controller can be operated in Local and Remote modes. Mode selection between Local and Remote modes is controlled using a switch located on the front panel of the controller. A lighted indicator is located above and below this switch to indicate local or remote mode. -
Page 14: Remote Mode Rs-232
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 OPERATION Remote Shutdown indicator – Indicates that remote shutdown has been com- manded through the analog or RS-232 remote interface. Enable/Standby switch – Enables or disables the output. When Standby is selected, the Discharge Amps Setpoint is displayed. When Enabled is selected, the controller regulates the Cathode Amps/Volts to main- tain the Discharge Amps Setpoint. -
Page 15: Direct Rs-232 Connection From Computer To Ac Discharge Controller
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 OPERATION labeled, “RS-232”, “AC Discharge”. This approach uses an RS-232 straight through cable that connects to a DB-9 male connector. 3.2.1 Direct RS-232 connection from computer to AC discharge controller The AC Discharge Controller can be operated from a host computer using an RS-232 port on the computer. -
Page 16: Operational Sequence
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 OPERATION value from 0-4095. VA0 is the minimum or zero output, it also puts the unit in standby mode, while VA4095 is maximum output. • *IDN? Returns the 4 digit product identifier code. • RD0 Returns a decimal number for conversion to the corresponding cath- ode voltage. -
Page 17: Electrical-Analog
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 OPERATION • Powering down the AC Discharge Controller should be done by resetting the output current to zero, this is done by inputting the following command into the terminal program: Input “VA0” then press the enter key. The dis- charge will drop to zero and the Standby LED will be illuminated. -
Page 18: Analog Input/Output
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 OPERATION The AC Discharge Controller can be operated using analog. 3.2.5.1 ANALOG Input/Output The AC Discharge Controller can be remotely controlled using a 0-5 volt DC analog interface. The analog remote uses 0-5 volt signals for controlling and monitoring the controller. -
Page 19: Table 3-2. Interlock Connections
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 OPERATION Number Description Common Common. Auxiliary +5 volts DC, 200 mA max. Also available at pin 15 and 25. Remote Shutdown, Active Low – Output is disabled when connected to common. The shutdown is deactivated when 5 volts is applied or no contact is made. -
Page 21: Diagnostics
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 DIAGNOSTICS 4 DIAGNOSTICS 4.1 General The AC Discharge Controller has been designed for operating a filament cath- ode in a vacuum environment for use in a electron source. The filament cathode provides electrons for starting the ion source in addition to neutralizing the ion beam. - Page 22 AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 DIAGNOSTICS Symptom Possible Cause Correction No voltage or current Mode switch on front panel Switch mode switch to displayed as discharge set to Remote Local adjustment knob is rotated clockwise, local Controller in Standby Mode...
-
Page 23: Limited Warranty
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 LIMITED WARRANTY 5 LIMITED WARRANTY Kaufman & Robinson, Inc. (KRI) warrants to the purchaser or end user of the equip- ment it sells that such equipment will be free from defects in material and work- manship under normal use and service. - Page 24 AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 LIMITED WARRANTY For Service or Repair, contact KRI: Kaufman & Robinson, Inc. 1330 Blue Spruce Dr. Fort Collins, CO 80526 (970) 495-0187 (970) 484-9350 (FAX) Please indicate the following items relating to the defect with the item to be re-...
-
Page 25: Service And Technical Information
AC DISCHARGE CONTROLLER MANUAL MODEL AC1006 SERVICE AND TECHNICAL INFORMATION 6 SERVICE AND TECHNICAL INFORMATION For technical information, repairs or replacement during Warranty, or repairs there- after, please contact: Kaufman & Robinson, Inc. 1330 Blue Spruce Dr. Fort Collins, CO 80524 Tel.: 970-495-0187...
