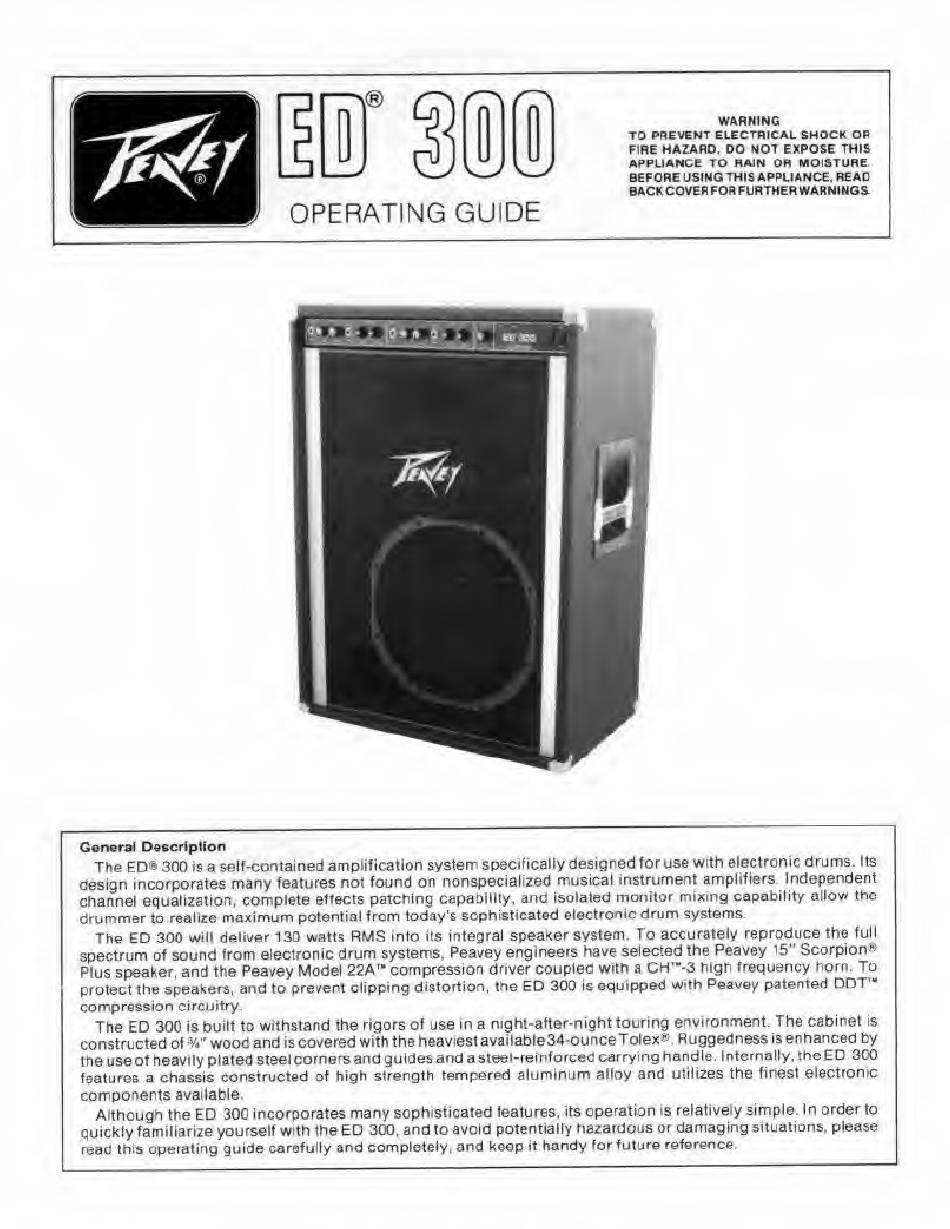

Peavey ED 300 Operating Manual

OPERATING GUIDE
WARNING
TO PREVENT ELECTRICAL SHOCK OP
FIRE HAZARD. DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE
BEFORE USING THIS APPLIANCE. READ
BACK COVER FOR FURTHER WARNINGS
General Description
The ED® 300 is a self-contained amplification system specifically designed for use with electronic drums. Its
design incorporates many features not found on nonspecialized musical instrument amplifiers Independent
channel equalization, complete effects patching capability, and isolated monitor mixing capability allow the
drummer to realize maximum potential from today's sophisticated electronic drum systems.
The ED 300 will deliver 130 watts RMS into its integral speaker system. To accurately reproduce the full
spectrum of sound from electronic drum systems, Peavey engineers have selected the Peavey 15" Scorpion^
Plus speaker, and the Peavey Model 22A'" compression driver coupled with a CH'"-3 high frequency horn. To
protect the speakers, and to prevent clipping distortion, the ED 300 is oquipped with Peavey patented DDT'"
compression circuitry.
The ED 300 is built to withstand the rigors of use in a night-after-night touring environment. The cabinet is
constructed of wood and is covered with the heaviest available 34-ounce Tolex». Ruggedness is enhanced by
the useot heavily plated steel corners and guides and a steel-reinforced carrying handle. Internally, the ED 300
features a chassis constructed of high strength tempered aluminum alloy and utilizes the finest electronic
components available.
Although the ED 300 incorporates many sophisticated features, its operation is relatively simple. In order to
quickly familiarize yourself with the ED 300, and to avoid potentially hazardous or damaging situations, please
read this operating guide carefully and completely, and keep it handy for future reference
