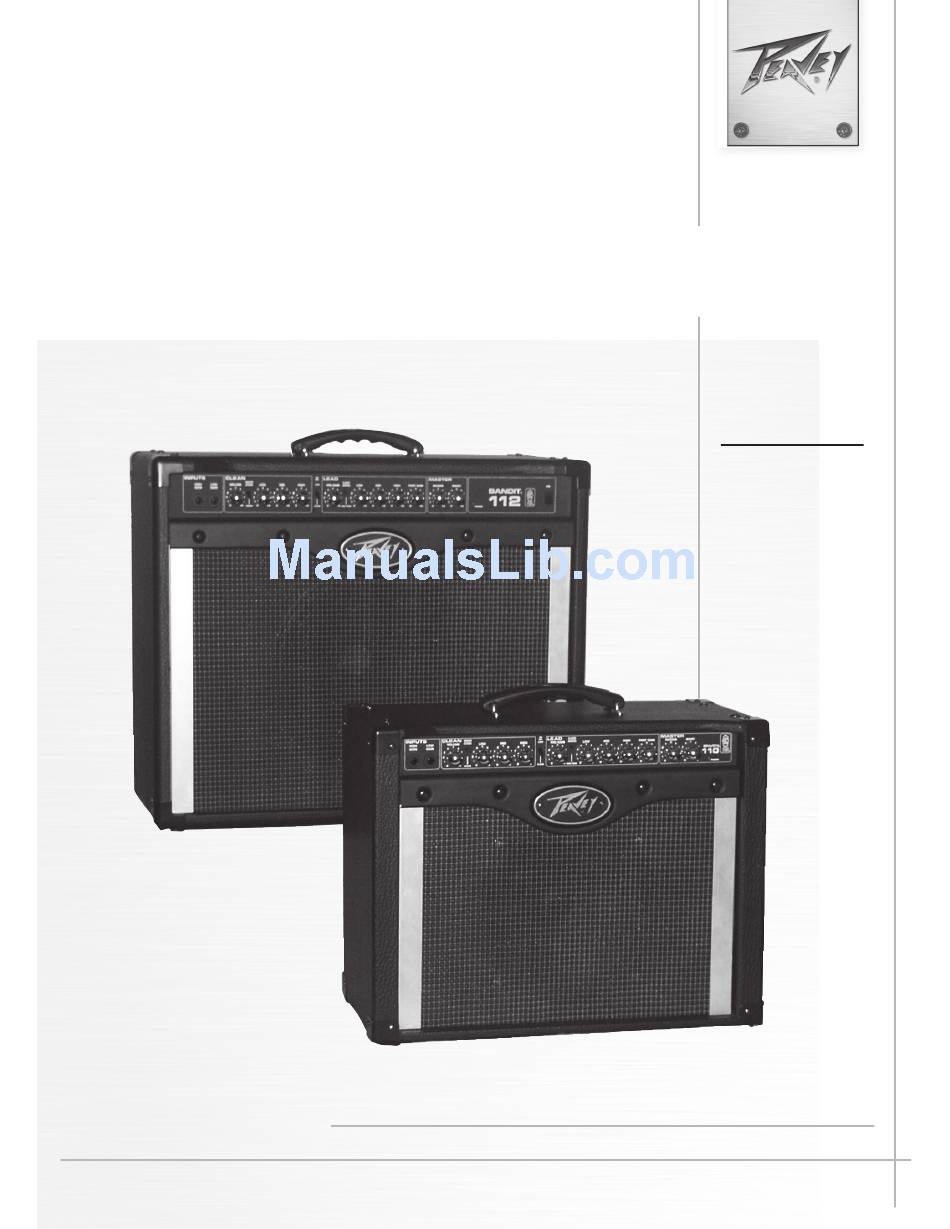

- Page 1 Envoy 110 & Bandit ® ® TransTube® Series Amplifiers Operating Manual www.peavey.com...
- Page 2 ATTENTION: Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à l’intérieur aucune pièce pouvant être reparée par l’utilisateur. Confiez I’entretien et la réparation de l’appareil à un réparateur Peavey agréé. AVIS: Dans le but de reduire les risques d’incendie ou de decharge electrique, cet appareil ne doit pas etre expose a la pluie ou a l’humidite et aucun objet rempli de liquide, tel qu’un vase, ne doit...
-
Page 3: Important Safety Instructions
WARNING: When using electrical products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. -
Page 4: Wichtige Sicherheitshinweise
ACHTUNG: Beim Einsatz von Elektrogeräten müssen u.a. grundlegende Vorsichtsmaßnahmen befolgt werden: Lesen Sie sich diese Anweisungen durch. Bewahren Sie diese Anweisungen auf. Beachten Sie alle Warnungen. Befolgen Sie alle Anweisungen. Setzen Sie dieses Gerät nicht in der Nähe von Wasser ein. Reinigen Sie es nur mit einem trockenen Tuch. -
Page 5: Instructions Importantes De Securite
INSTRUCTIONS IMPORTANTES DE SECURITE ATTENTION: L’utilisation de tout appareil électrique doit être soumise aux precautions d’usage incluant: Lire ces instructions. Gardez ce manuel pour de futures références. Prétez attention aux messages de précautions de ce manuel. Suivez ces instructions. N’utilisez pas cette unité proche de plans d’eau. N’utilisez qu’un tissu sec pour le nettoyage de votre unité. - Page 6 INSTRUCCIONES IMPORTANTES PARA SU SEGURIDAD CUIDADO: Cuando use productos electrónicos, debe tomar precauciones básicas, incluyendo las siguientes: Lea estas instrucciones. Guarde estas instrucciones. Haga caso de todos los consejos. Siga todas las instrucciones. No usar este aparato cerca del agua. Limpiar solamente con una tela seca.
-
Page 7: Common Features
Envoy® 110 and Bandit® 112 TransTube® Series Instrument Amplifiers So, you are the owner of a new Peavey TransTube Series instrument amplifier. Congratulations! Whether you are a beginner or seasoned pro, you could not have found a more practical, feature-packed amplifier. - Page 8 Front Panel HIGH GAIN INPUT Used for most electric guitars. The High Gain Input is 6 dB louder than the Low Gain Input (2). LOW GAIN INPUT Provided for instruments with extremely high outputs, which can result in overdriving (distorting) the High Gain Input (1).
- Page 9 CAUTION: The on/off switch in this unit does not break both sides of the primary mains. Hazardous energy can be present inside the chassis when the on/off switch is in the OFF postion.
- Page 10 Rear Panel AC POWER INLET (Power Cord Located Under Chassis) This is the receptacle for an IEC line cord, which provides AC power tot the unit. Connect the line cord to this connector to provide power to the unit. Damage to the equipment may result if improper line volt- age is used.
-
Page 11: Remote Switch
Rear Panel POWER LEVEL (Bandit 112 ONLY) This switch provides three power level options: 25%, 50% and 100%. This circuit is actually a patented tube power amplifier simulator that "squashes" the signal. Use as desired for different playing environ- ments, for example an apartment at 25% or live big at 100%. EXTERNAL SPEAKER JACK (Bandit 112 ONLY) This 1/4”... -
Page 12: Master Section
Suggested Settings Clean Clean/Metal Clean Channel: Jazz/Moderate Distortion Volume: As Desired Classic Clean/Metal Low: 7-9 Mid: 2-4 High: 5-7 Jazz Clean Blues/Dirty Blues Jazz/Moderate Distortion Clean/Metal Clean Channel: Jazz/Moderate Distortion Volume: As Desired Classic Clean Blues/Dirty Blues Low: 7-9 Mid: 6-8 High: 3-4 Clean Blues Clean Blues/Dirty Blues... -
Page 13: Frequency Response
Envoy® 110 Power Amplifier Section: Power @ Clipping (Typically): (1 kHz, 120 VAC line) 40 W RMS into 6 Ω Frequency Response: +0, -2 dB 100 Hz to 20 kHz @ 35 W RMS into 6 Ω Hum and Noise: Greater than 86 dB below rated power Power Consumption:... - Page 14 Bandit® 112 Power Amplifier Section: Rated Power and Load: Power specs measured with Power Level @ 100% 80 W RMS into 8 Ω 100 W RMS into 4 Ω Power @ Clipping (Typically): (1 kHz, 120 VAC line) 80 W RMS into 8 Ω 100 W RMS into 4 Ω...
- Page 15 What Peavey Will Do We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.
- Page 16 Features and specifications subject to change without notice. Peavey Electronics Corporation • 711 A Street • Meridian, MS 39301 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com © 2006 80303158...
