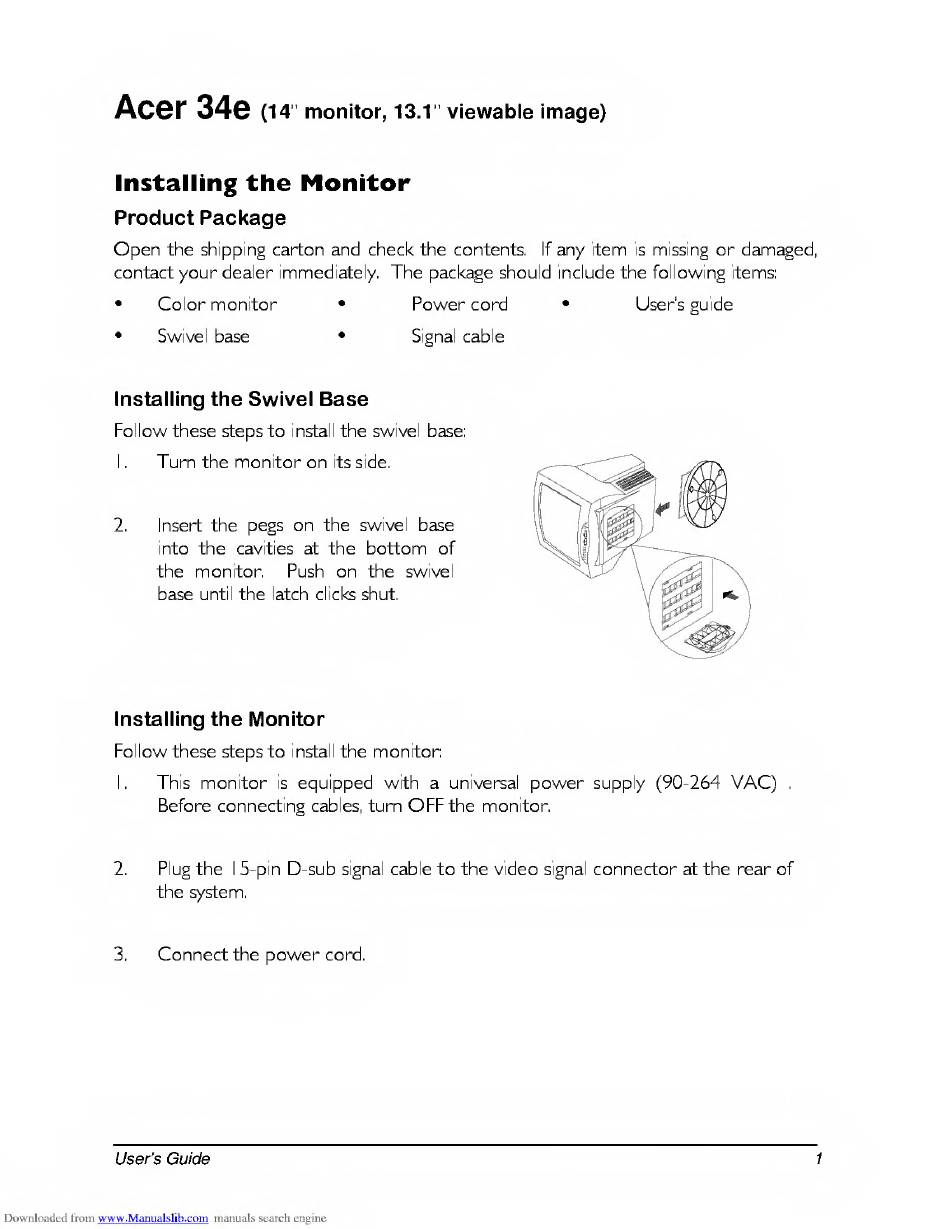

Acer 34e
(14' monitor, 13.1" viewable image)
Installing the Monitor
Product Package
Open the shipping carton and check the contents If any item is missing or damaged,
contact your dealer immediately. The package should include the following items:
* Color monitor • Power cord • User's guide
• SwVel base • Signal cable
Installing the Swivel Base
Follow these steps to install the swivel base:
1. Turn the monitor on its side.
2. Insert the pegs on the swivel base
into the cavities at the bottom of
the monitor. Push on the swivel
base until the latch clicks shut.
Installing the Monitor
Follow these steps to install the monitor:
1. This monitor is equipped with a universal power supply (90-264 VAC) ,
Before connecting cables, turn OFF the monitor.
2. Plug the 15-pin D-sub signal cable to the video signal connector at the rear of
the system,
3. Connect the power cord.
