Hardt Press N' Go 1000 Service Bulletin

Solenoid valve replacement
Hide thumbs Also See for Press N' Go 1000:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Description
This document describes how to replace the solenoid valve for the Press N' Go 1000.
Tools
• SCREW DRIVER SET
• OPEN WRENCHES SET
• CROWFOOT SOCKET
WRENCH,3/8"
DRIVE,15/16"
• TORQUE WRENCH (ft.lbs.)
Time
1.50 h
1. Removing the Solenoid Valve
1. Turn the unit off and unplug the power cable.
2. Remove the back cover, side cladding and
accessories from the unit.
• 6 hex bolts and lock washers in the back
• 9 hex bolts and lock washers under the unit
• 2 hex pins (1 on each side) for the bottle holder
• 4 hex pins (2 on each side) for the trash bin
3. Remove the coil.
a. Locate the coil connector
solenoid valve
Figure 2.
SVC-016-0147-01
Service Bulletin
Required Parts
Item Qty P/N
Description
1
1
14534
SOLENOID VALVE HYDRAULIC POWER
PACK PNG
A
, the red nut
C
and the coil
D
Solenoid Valve Replacement
B
, the
as shown in
Press N' Go 1000 - Solenoid Valve Replacement - Page 1 of 8
Press N' Go 1000
1
Figure 1
A A
B
B
C
D
C
D
Figure 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Press N' Go 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hardt Press N' Go 1000

Summary of Contents for Hardt Press N' Go 1000

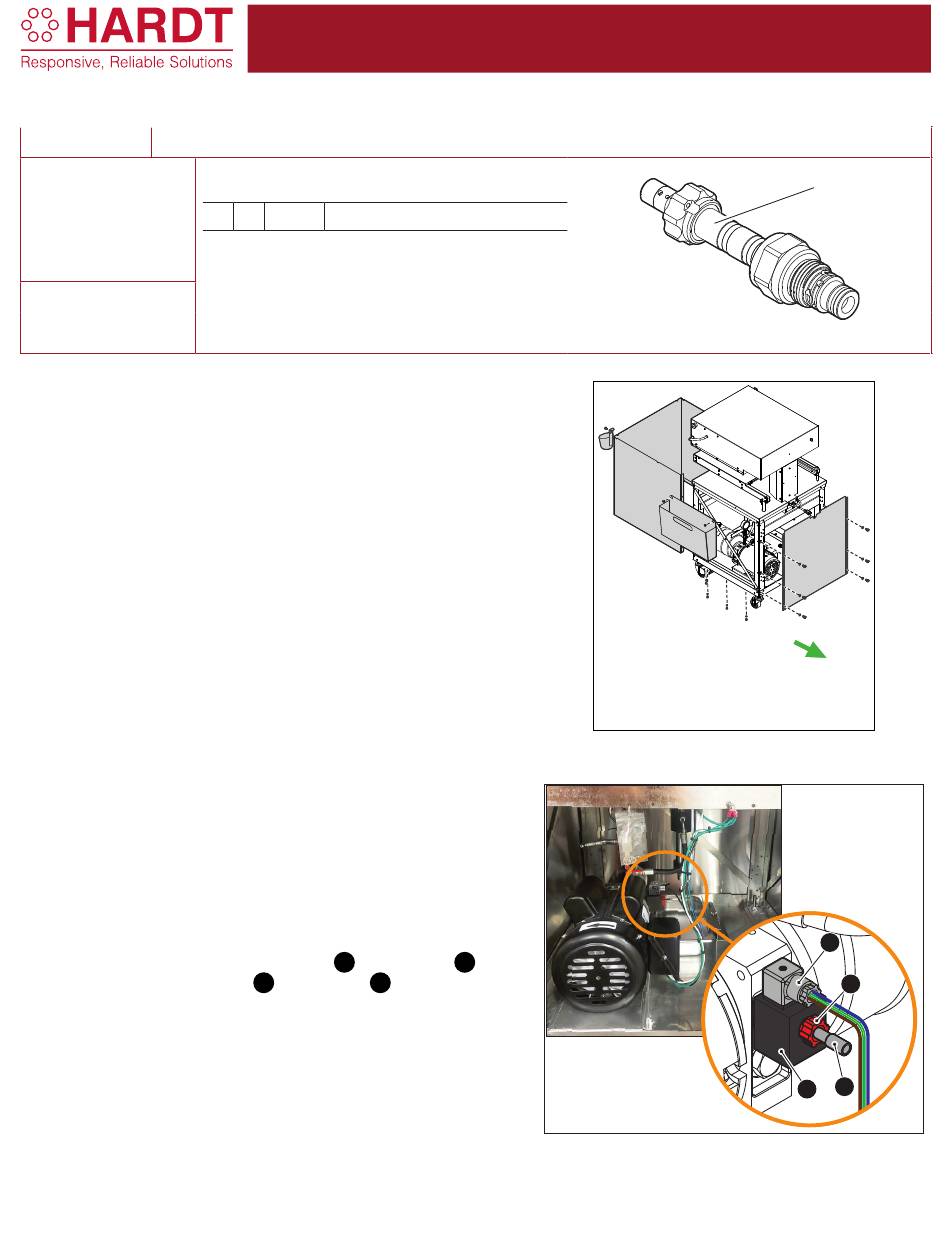

  • Page 1 3. Remove the coil. a. Locate the coil connector , the red nut , the solenoid valve and the coil as shown in Figure 2. Figure 2 SVC-016-0147-01 Press N' Go 1000 - Solenoid Valve Replacement - Page 1 of 8...
