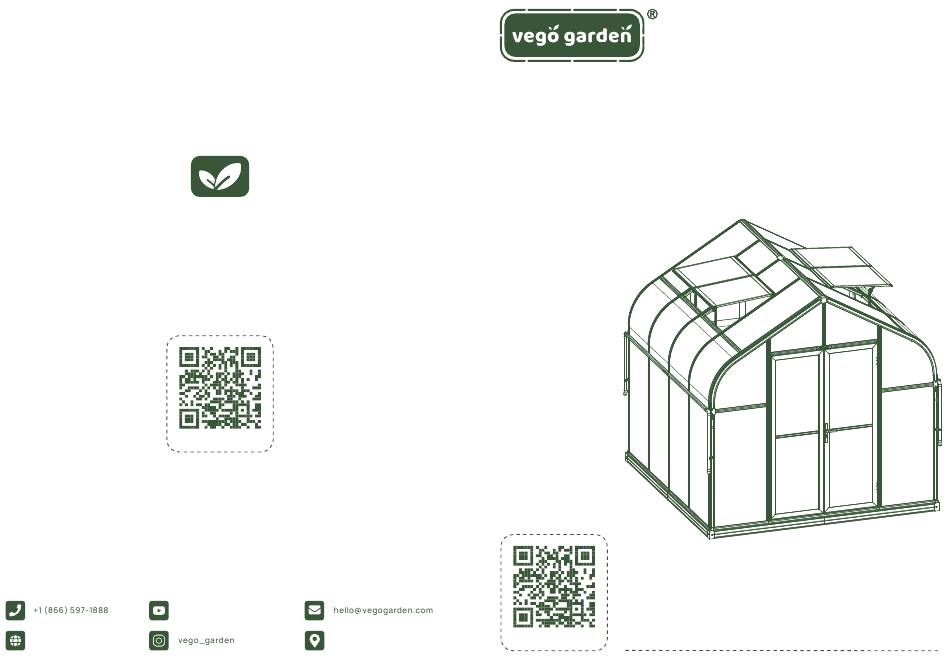

- Page 1 V E G O G A R D E N . C O M V1.0 10/29/2024 Manual for Vego Greenhouse Kit Copyright @ 2024 Vego Gardening Made Easier. Anytime, Anywhere. vegogarden.com Contact Us Model: VGH0808PCBK Vego Garden Academy Dimensions: vegogarden.com vegogarden.com Houston, TX 8.5’ X 8.5’ X 8.5’ (H)
-
Page 2: Safety Advice
Safety Advice 1. This product is designed to be used as a greenhouse. 2. It is important to assemble the product according to this manual, do not skip or modify any steps. 3. Wear gloves, shoes and safety glasses during assembling to avoid injury. 4. -
Page 3: Tools Provided
4. Loosely tighten bolts as you assemble. After the greenhouse is built, and still loosely Tools & Packing Information connected, then tighten all bolts completely. Tools Provided Tools Required (Not Provided) 5. Keep the roof and gutters clear of snow, dirt and leaves in order to avoid damage to the product. -
Page 4: Packing Information
Packing Information Foundation Assembly Aluminum Frame & Hardware: STEP Choose a hard, level surface. Clean and position the greenhouse using a level to ensure B O X 1 B O X 2 it is flat. If the selected area is not level, clear and level the installation site first. Option 1: Solid foundation Preferred B O X 3... - Page 5 STEP Lay out the foundation pieces as diagrammed, using the door location as a reference. PART QTY. BOX 6 DJ02 1290mm BOX 6 BOX 6 BOX 6 D366 DJ02 DJ02 S03A M6X10 DJ02 DJ02 DJ02 DJ02 DOOR DJ02 DJ02 Scan the QR code above or visit vegogarden.com to learn more about your Vego Greenhouse Kit.
- Page 6 STEP STEP Slide the heads of 22 S03A bolts in the grooves of the frame, on the inside and outside, Assemble 4 sets of Z1 and Z2 connection plates by loosely installing the bolts and cap as shown below. These will hold the outside connectors and anchor brackets. nuts.
- Page 7 STEP STEP Slide Z1 & Z2 in the grooves of foundation pieces to connect each section and tighten Connect the 4 corners with D366 L brackets using the pre-slid bolts and nuts. the bolts until the frame is flush and square. D366 D366 D366...
-
Page 8: Base Assembly
Base Assembly STEP Lay out the base frame pieces as shown in the diagram, noting that there are two types of corner pieces. PART L08F L08A J196R L08F J196L BOX 2 L08A BOX 2 L08D BOX 2 L08E BOX 2 L08F BOX 2 J196R... - Page 9 STEP STEP When connecting the base frame to the Vego Foundation Frame Kit, connect D75 and Mark 14 anchor holes on ground per the template below. D76 brackets to the pre-slid S03A bolts, attach M24 nuts and slide the bracket assembly over the marked anchor holes.
-
Page 10: Wall Assembly
Wall Assembly STEP Starting to the left of the door position, begin the vertical frame assembly. Loosely attach all bolts and nuts. 25/64" PART BOX 3 L01A BOX 3 L01B BOX 3 L01E BOX 3 L01F BOX 3 L02A BOX 1 L03C BOX 1 L03D... - Page 11 Note: For L02A frame: the cut ends face upward. For L01A,B,E,F frames: the ends with holes drilled further from the edge face upward. L02A L03C L03D L01B L03G L02A L01A S03A L01F L08F J196L/R L02A/L03C/L03D/L03G L01E S03A L02A...
- Page 12 STEP Attach a vertical frame piece, followed by a horizontal piece, moving around the greenhouse clockwise. It is important for structural stability during assembly to attach S03A S03A x 2 horizontal braces after each vertical component. Cap nuts always face inside. L05B PART BOX 1...
- Page 13 STEP Door Frame Assembly L03A L03A Note: Different bolts and nuts are required to PART complete the installation, as shown in the S03A S03A BOX 1 L03A diagram. S27 A BOX 1 L03B For L08A,S27A flat head bolts and M31 nuts are BOX 2 L05C used to secure the interior side of the door...
- Page 14 STEP STEP Outer Corner Frame Attachment Attach the L12A/B pieces to the corners as shown below, using the pre-installed S21A bolts, to create channels that will hold the PC panels in place. Remove the S21A bolts prior to attachment. PART S21A M5X12 S21A...
- Page 15 STEP PC Wall Panel Assembly Note: The white film indicates the UV-protected side of the panels. We recommend waiting to remove the white film until you have placed the panels in the frame, to ensure that the UV side is facing outwards. Insert panels in the grooves as shown in the diagram below, ensuring the UV side of the panels are facing outwards.
- Page 16 STEP Secondary Horizontal Frame Assembly Note: Hex tool required. Place S03A bolts on hex tool, load it into the hole between the gap of the two frames, attaching M24 nuts loosely, then remove the hex tool. Repeat this step for all holes in hard to reach spots. PART L03E BOX 3...
- Page 17 STEP Frame Connectors Assembly Insert L07 into the slot at L02A’s end, as shown. S03A L04A PART L07A/L07B BOX 2 L07A BOX 2 D349 BOX 2 S03A x 2 S03A M6X10 S03A x 4 L02A M24 x 2 M24 x 4 S03A D349 D349...
- Page 18 For D349 connectors shown in image 2, do not insert bolts into the middle top 2 holes STEP yet; this will be completed in a later step. Slide 2 S03A bolts in the grooves of the frame, one from the front, the other from the back, and position them as shown in the diagram.
-
Page 19: Roof Assembly
Roof Assembly STEP Front & Back Gable Assembly L04C Note: Different hardware is required for top and bottom holes on L03F. Top holes: S03A, M24 Bottom holes: S27A, H137, M31 L04B PART BOX 3 L03F BOX 2 L04B BOX 2 L04C S03A M6X10... - Page 20 STEP Upper Front and Back PC Panel Assembly Note: The white film indicates the UV-protected side of the panels. We recommend waiting to remove the white film until you have placed the panels in the frame, to ensure that the UV side is facing outwards. Remove the plastic film from both sides of the panels, noting that the white film side is the UV-protected side of the panel, and should be installed facing outwards.
- Page 21 STEP Roof Frame Assembly Slide the corresponding roof frame pieces over the PC panels, and bolt into place. S03A/M24 x 2 L01C/L01D PART BOX 3 L01C BOX 3 L01D L01C S03A M6X10 L01D L01C L01D L01C/L01D L01C L01D S03A/M24 S03A/M24 x 2 Scan the QR code above or visit vegogarden.com to learn more about your Vego Greenhouse Kit.
- Page 22 Assemble the center roof frame support by connecting L02C pieces with D348 pieces. Bolt the center roof frame to the greenhouse as shown in the diagram, ensuring that Then assemble and attach the support bar by connecting a D129 to each end of L05E you’ve connected it to the correct pair of vertical frame pieces.
- Page 23 STEP Using the self-tapping screws Z08A, connect the center ridge cap (D26) to the middle Ridge and Roof Panel Assembly joint of the roof. Install the ridge along the top of the roof. First, gently pull the roof frame pieces apart at Z08A x 2 the peak, and insert the ridge piece, aligning the bolt holes, and attach.
- Page 24 Install horizontal roof frame pieces (L04D), beginning from the center, moving towards Slide Y8 and Y9 into the frames as shown in the diagrams, UV side out. Secure the Y9 the door. Attach L04D using bolts and cap nuts. panels to the ridge temporarily using painters tape. PART BOX 3 L02B...
-
Page 25: Vent Assembly
Vent Assembly making sure the slot fits into the horizontal frame, and bolt holes are aligned & flush. Secure with bolts and cap nuts. STEP S03A/M24*2 S03A/M24*2 S03A/M24*4 With a PC panel, UV side down, push the vent frame pieces (L19 x 2, L20, L21) onto the innermost two holes. - Page 26 STEP Vent Installation Attach the vent arm to the C1 vent using the 219A screws. Bolt completed C1 vent by its hinge assembly (L11A/L15A) to the roof frame. Z02A x 2 Finally, connect the loose end of the vent arm to the greenhouse frame using S26A screws.
- Page 27 STEP Attach final horizontal roof frame pieces (L04D) to the already installed horizontal frame as shown, and slide in the final pieces of the PC paneling. Z19A X 2 Note: The final set of panels fit very snugly. You may find that gently tapping with your rubber mallet helps nestle them into place.
- Page 28 Attach L12C and L12D pieces to the outside edges of the roof, to cap the PC panels. L12C L01C/L01D will be on the left when you are facing the door, and on the left when facing the outside S03A x 2 of the back.
-
Page 29: Door Assembly
Note: S21A screws are pre-attached on L01C and L01D frames, unthread and use Door Assembly them to secure L12C and L12D onto L01C and L01D. STEP S21A Begin by assembling the top and bottom edges of each door, by attaching two J193 pieces to each end of an L16 bottom frame piece. - Page 30 Assembly instructions for DOOR-R STEP Assemble the door side frames attaching the L17 center frame to the corresponding S03A/M24 x 4 door side frames, L16C/L16A for the left door and L18A/L16A for the right door. L18A L16A Assembly instructions for DOOR-L S03A/M24 x 4 L16C L16B...
- Page 31 STEP Door & Lock Installation S27A x 6 Note: Remove the S27 bolts from the door. Hold the door and affix the hinges to the door frame and secure with S27A bolts. Finally reinforce the structure with Z17 screws. S27A x 6 PART DOOR-L DOOR-R...
- Page 32 STEP STEP Install Ridge End Caps Drainage Pipe Assembly Attach ridge end caps to the front and back top corners of the greenhouse using Z08A Using Z08A screws, attach drainage pipe connectors to all four corners, noting screws. placement in the image below. J197L/R PART J198...
- Page 33 Push J94, L25 and J93 together as shown in diagram, and connect to each drainage pipe STEP Drainage Pipe Bracket Assembly connector. Use Z08A screws to attach one drainage pipe bracket to each corner as shown. J199 J199 Z08A Z08A J199 J199 J199...
- Page 34 STEP STEP Remove the protective film from the back of the Vego Garden name plate, and attach it Make a final pass through your greenhouse, and ensure all nuts are tightened. to the center of door frame. Apply silicone caulk around all the PC panels for water tightness.
