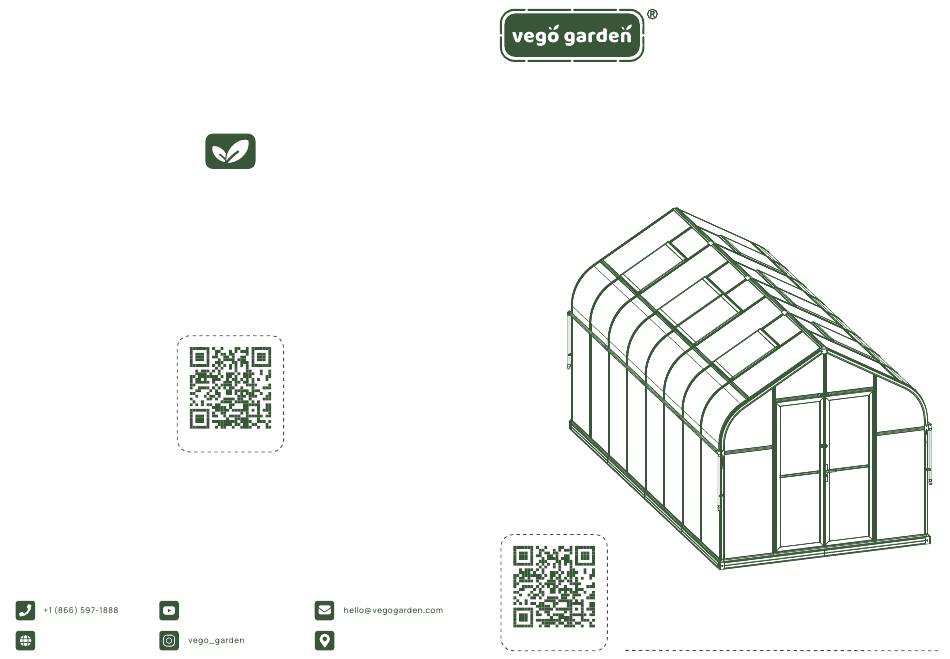

V E G O G A R D E N . C O M
V1.0 10/29/2024
Manual for
Vego Greenhouse Kit
Gardening Made Easier.
Copyright @ 2024 Vego
Anytime, Anywhere.
vegogarden.com
Contact Us
Model:
VGH0816PCBK
Vego Garden Academy
Dimensions:
vegogarden.com
vegogarden.com
Houston, TX
8.5' X 16.5' X 8.5' (H)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VGH0816PCBK and is the answer not in the manual?

Questions and answers

Related Manuals for vego garden VGH0816PCBK

Summary of Contents for vego garden VGH0816PCBK

  • Page 1 V E G O G A R D E N . C O M V1.0 10/29/2024 Manual for Vego Greenhouse Kit Gardening Made Easier. Copyright @ 2024 Vego Anytime, Anywhere. vegogarden.com Contact Us Model: VGH0816PCBK Vego Garden Academy Dimensions: vegogarden.com vegogarden.com Houston, TX 8.5’ X 16.5’ X 8.5’ (H)

  • Page 2: Safety Advice

    Safety Advice 1. This product is designed to be used as a greenhouse. 2. It is important to assemble the product according to this manual, do not skip or modify any steps. 3. Wear gloves, shoes and safety glasses during assembling to avoid injury. 4.

  • Page 3: Tools Provided

    4. Loosely tighten bolts as you assemble. After the greenhouse is built, and still loosely Tools & Packing Information connected, then tighten all bolts completely. Tools Provided Tools Required (Not Provided) 5. Keep the roof and gutters clear of snow, dirt and leaves in order to avoid damage to the product.

  • Page 4: Packing Information

    Packing Information Extension Kit Boxes x 2 sets 14 boxes in total: E B O X 1 E B O X 2 Greenhouse Boxes a. Aluminum Frame & Hardware: E B O X 3 B O X 1 B O X 2 B O X 3 E B O X 4 b.
  • Page 5 Hardware List: Foundation Assembly STEP PART PART S03A Z02A BOX 2 BOX 2 M6X10 Ø4X16D Choose a hard, level surface. Clean and position the greenhouse using a level to ensure S03A Z02A BOX 6 EBOX 1 it is flat. If the selected area is not level, clear and level the installation site first. M6X10 Ø4X16D S03A...
  • Page 6 STEP DJ02 DJ02 Lay out the foundation pieces as diagrammed, using the door location as a reference. PART BOX 6 DJ02 DJ02 DJ02 1290MM EBOX 4 DJ03 1245.6MM BOX 6 BOX 6 EBOX 4 BOX 6 D366 DJ03 DJ03 S03A M6X10 DJ03 DJ03...
  • Page 7 STEP STEP Slide the heads of 30 S03A bolts in the grooves of the frame, on the inside and outside, Assemble 8 sets of Z1 and 4 sets of Z2 connection plates by loosely installing the bolts as shown below. These will hold the outside connectors and anchor brackets. and cap nuts.
  • Page 8 STEP STEP Slide Z1 & Z2 in the grooves of foundation pieces to connect each section and tighten Connect the 4 corners with D366 L brackets using the pre-slid bolts and nuts. the bolts until the frame is flush and square. DJ02 DJ02 D366...

  • Page 9: Base Assembly

    Base Assembly J196R L08F L08A L08F J196L STEP Lay out the base frame pieces as shown in the diagram, noting that there are two types of corner pieces. L08D L08E PART BOX 2 L08A EBOX 1 L08A BOX 2 L08D BOX 2 L08E BOX 2...
  • Page 10 STEP STEP Mark 22 anchor holes on ground per the template below. When connecting the base frame to the Vego Foundation Frame Kit, connect D75 and D76 brackets to the pre-slid S03A bolts, attach M24 nuts and slide the bracket assembly 10.8"...

  • Page 11: Wall Assembly

    Wall Assembly STEP Starting to the left of the door position, begin the vertical frame assembly. Loosely attach all bolts and nuts, tightening after wall frame assembly is complete. 25/64" PART BOX 3 L01A BOX 3 L01B BOX 3 L01E BOX 3 L01F BOX 3...
  • Page 12 Note: For L02A frame: the cut ends face upward For L01A,B,E,F frames: the ends with holes drilled further from the edge face upward L02A L03C L03D L01B L03G L01A L02A S03A L01F L08F J196L/R L02A L02A/L03C/L03D/L03G L01E L02A S03A L02A...
  • Page 13 STEP Attach a vertical frame piece, followed by a horizontal piece, moving around the greenhouse clockwise. It is important for structural stability during assembly to attach S03A S03A x 2 horizontal braces after each vertical component. Cap nuts always face inside. L05A PART BOX 1...
  • Page 14 STEP Door Frame Assembly L03A L03A Note: Different bolts and nuts are required to PART complete the installation, as shown in the S03A S03A BOX 1 L03A diagram. S27 A BOX 1 L03B For L08A,S27A flat head bolts and M31 nuts are BOX 2 L05C used to secure the interior side of the door...
  • Page 15 STEP Outer Corner Frame Attachment Attach the L12A/B pieces to the corners as shown below, using the pre-installed S21A bolts, to create channels that will hold the PC panels in place. Remove the S21A bolts prior to attachment. PART S21A M5X12 S21A BOX 3...
  • Page 16 STEP PC Wall Panel Assembly Note:The white film indicates the UV-protected side of the panels. We recommend waiting to remove the white film until you have placed the panels in the frame, to ensure that the UV side is facing outwards. Insert panels in the grooves as shown in the diagram below, ensuring the UV side of the panels are facing outwards.
  • Page 17 STEP Secondary Horizontal Frame Assembly S03A x 2 Note: Hex tool required. Place S03A bolts on hex tool, load it into the hole between the gap of the two S03A frames, attaching M24 nuts loosely, then remove the hex tool. Repeat this step for all holes in hard to reach spots.
  • Page 18 STEP For D349 connectors shown in image 2, do not insert bolts into the middle top 2 holes Frame Connectors Assembly yet; this will be completed in a later step. Insert L07 into the slot at L02A’s end, as shown. L07A/L07B PART BOX 1...

  • Page 19: Roof Assembly

    STEP Roof Assembly D25 Gutter Connectors Slide 6 S03A bolts in the grooves of the frame, three from the front, three from the back, STEP Front & Back Gable Assembly and position them as shown in the diagram. Secure the D25 gutter connectors with M24 nuts. Note: Different hardware is required for top and bottom holes on L03F Top holes: S03A, M24 L07B...
  • Page 20 L04C STEP Upper Front and Back PC Panel Assembly Note: The white film indicates the UV-protected side of the panels. We recommend waiting to remove the white film until you have placed the panels in the frame, to ensure that the UV side is facing outwards. Remove the plastic film from both sides of the panels, noting that the white film side is the UV-protected side of the panel, and should be installed facing outwards.
  • Page 21 STEP Roof Frame Assembly Slide the corresponding roof frame pieces over the PC panels, and bolt into place. S03A/M24 x 2 L01C/L01D PART BOX 3 L01C BOX 3 L01D S03A M6X10 L01C/L01D L01C L01D S03A/M24 S03A/M24 x 2 Scan the QR code above or visit vegogarden.com to learn more about your Vego Greenhouse Kit.
  • Page 22 PART BOX 2 L05E EBOX 1 L05E L02C BOX 3 EBOX 1 L02C BOX 2 D129 L01C EBOX 1 D129 L01D BOX 2 D348 EBOX 1 D348 S03A M6X10 Assemble 3 sets of roof frame (G1) supports by connecting L02C pieces with D348 pieces.
  • Page 23 STEP D348 L02C Ridge and Roof Panel Assembly L02C Install Roof frame G1 as shown. Secure with bolts and cap nuts. D348 Install the ridge along the top of the roof. First, gently pull the roof frame pieces apart at the peak, and insert the ridge piece, aligning the bolt holes, and attach.
  • Page 24 Install horizontal roof frame pieces (L04E) facing the back of the greenhouse as shown. Attach L04E using bolts and cap nuts. L02C PART S03A/M24 x 2 EBOX 1 L02B EBOX 1 L04E EBOX 3 M24 x 2 EBOX 3 S03A L04E M6X10 D349...
  • Page 25 Slide Y8 PC panels, UV side out, into place. After the panels are in place, follow them by attaching two L02B pieces, making sure the Slide Y9 panels into the peak of the greenhouse as shown, and secure to the ridge slot fits into the horizontal frame, and bolt holes are aligned &...
  • Page 26 STEP Install horizontal roof frame pieces (L04D). Attach L04D using bolts and cap nuts. L01C/L01D PART EBOX 1 L04D BOX 3 L12C BOX 3 L12D S03A x 2 S03A/M24 x 4 S03A/M24 x 2 M24 x 2 EBOX 2 L04D EBOX 3 S21A M5X12...
  • Page 27 Attach L12C and L12D pieces to the outside edges of the roof, to cap the PC panels. L12C Note: The white film indicates the UV-protected side of the panels. We recommend will be on the left when you are facing the outside of the back. waiting to remove the white film until you have placed the panels in the frame, to ensure that the UV side is facing outwards.
  • Page 28 Note: S21A screws are pre-attached on L01C and L01D frames, unthread and use STEP Roof Ridge PC Panel Assembly them to secure L12C and L12D onto L01C and L01D. PART EBOX 1 L04D S21A EBOX 1 L06A EBOX 1 EBOX 3 EBOX 3 L01C/D L01C/D...
  • Page 29 Hold L06A ridge piece in place, aligning the bolt holes, and attach. Using the self-tapping screws Z08A, connect the center ridge cap (D26) to the middle joint of the roof. Note: Each time you attach an L06A piece, one person needs to hold the L06A piece Install horizontal roof frame pieces (L04D) on the other side.
  • Page 30 Repeat same steps for frames and panels assembly After the panels are in place, follow them by attaching two L02B pieces, making sure the slot fits into the horizontal frame, and bolt holes are aligned & flush. Secure with bolts Slide Y7 &...
  • Page 31 Repeat install horizontal roof frame pieces (L04E) & Slide Y8 & Y9 PC panels as shown, UV side out, secure to the ridge temporarily using painters tape. S03A/M24 x 4 S03A/M24 x 2 S03A/M24 x 2 L04E M24 x 2 L04D L04E Scan the QR code above...
  • Page 32 Install another roof frame G1 as shown. Secure with bolts and cap nuts. Repeat the same steps as you install the remaining ridges, panels and roof frames. L02C PART S03A/M24 x 2 BOX 1 L06A Painter’s Tape S03A M6X10 D349 L06A S03A/M24 x 2...
  • Page 33 Note: Each time you attach an L06A piece, one person needs to hold the L06A piece Repeat install horizontal roof frame pieces (L04E) & Slide Y8 & Y9 PC panels as shown, in place until the L02B pieces are attached, to avoid bending the frame. UV side out, secure to the ridge temporarily using painters tape.
  • Page 34 Note: Insert the cut end of L02B onto L09. PART BOX 3 L02B BOX 2 L04D Painter’s Tape BOX 5 BOX 4 S03A M6X10 H158 Insert the cut end of L02B onto L09 as shown L02B L02B Scan the QR code above or visit vegogarden.com to learn more about your Vego Greenhouse Kit.
  • Page 35 L04D S03A/M24 x 4 S03A/M24 x 2 S03A/M24 x 2 L04D M24 x 2 L04E Scan the QR code above or visit vegogarden.com to learn more about your Vego Greenhouse Kit.
  • Page 36 L02C PART S03A/M24 x 2 L06A BOX 1 L04E BOX 2 L06A BOX 2 L06A EBOX 5 EBOX 5 D349 S03A M6X10 Z08A L06A M4.2X16 S03A/M24 x 2 H158 L06A S03A/M24 x 2 L06A/L06B S03A/M24 x 2...
  • Page 37 Z08A x 2 L04E L04E Scan the QR code above or visit vegogarden.com to learn more about your Vego Greenhouse Kit. S03A/M24 x 2...
  • Page 38 PART BOX 3 L02B BOX 2 L04D BOX 3 L12C BOX 3 L12D BOX 4 BOX 5 S21A S03A/M24 x 4 M5X12 S03A/M24 x 2 S03A M6X10 Insert the cut end of L02B onto L09 as shown H158 M24 x 2 L04D L12B L12B...
  • Page 39 L01C/L01D S03A x 2 M24 x 2 L04D L04D L04D L12D L12C S03A x 2 M24 x 2 L04D...

  • Page 40: Vent Assembly

    Attach L12C and L12D pieces to the outside edges of the roof, to cap the PC panels. L12C Vent Assembly will be on the left when you are facing the door. Note: S21A screws are pre-attached on L01C and L01D frames, unthread and use STEP them to secure L12C and L12D onto L01C and L01D.
  • Page 41 STEP Attach the vent arm to the C1 vent using the 219A screws. Z02A x 2 Bolt completed C1 vent by its hinge assembly (L11A/L15A) to the roof frame. Finally, connect the loose end of the vent arm to the greenhouse frame using S26A screws.
  • Page 42 S03A/M24 x 4 Door Assembly STEP Begin by assembling the top and bottom edges of each door, by attaching two J193 pieces to each end of an L16 bottom frame piece. PART BOX 1 L16A S03A/M24 x 2 BOX 2 L16B BOX 1 L16C...
  • Page 43 STEP Assembly instructions for DOOR-R Assemble the door side frames attaching the L17 center frame to the corresponding S03A/M24 x 4 door side frames, L16C/L16A for the left door and L18A/L16A for the right door. L18A Assembly instructions for DOOR-L L16A S03A/M24 x 4 L16C...
  • Page 44 STEP Door & Lock Installation S27A x 6 Note: Remove the S27 bolts from the door. Hold the door and affix the hinges to the door frame and secure with S27A bolts. Finally reinforce the structure with Z17 screws. S27A x 6 PART DOOR-L DOOR-R...
  • Page 45 STEP STEP Install Ridge End Caps Drainage Pipe Assembly Attach ridge end caps to the front and back top corners of the greenhouse using Z08A Using Z08A screws, attach drainage pipe connectors to all four corners, noting screws. placement in the image below. J198 PART J197L/R...
  • Page 46 Push J94, L25 and J93 together as shown in diagram, and connect to each drainage pipe STEP Drainage Pipe Bracket Assembly connector. Use Z08A screws to attach one drainage pipe bracket to each corner as shown. J199 J199 Z08A Z08A J199 J199 J199...
  • Page 47 STEP STEP Remove the protective film from the back of the Vego Garden name plate, and attach it Make a final pass through your greenhouse, and ensure all nuts are tightened. to the center of door frame. Apply silicone caulk around all the PC panels for water tightness.
