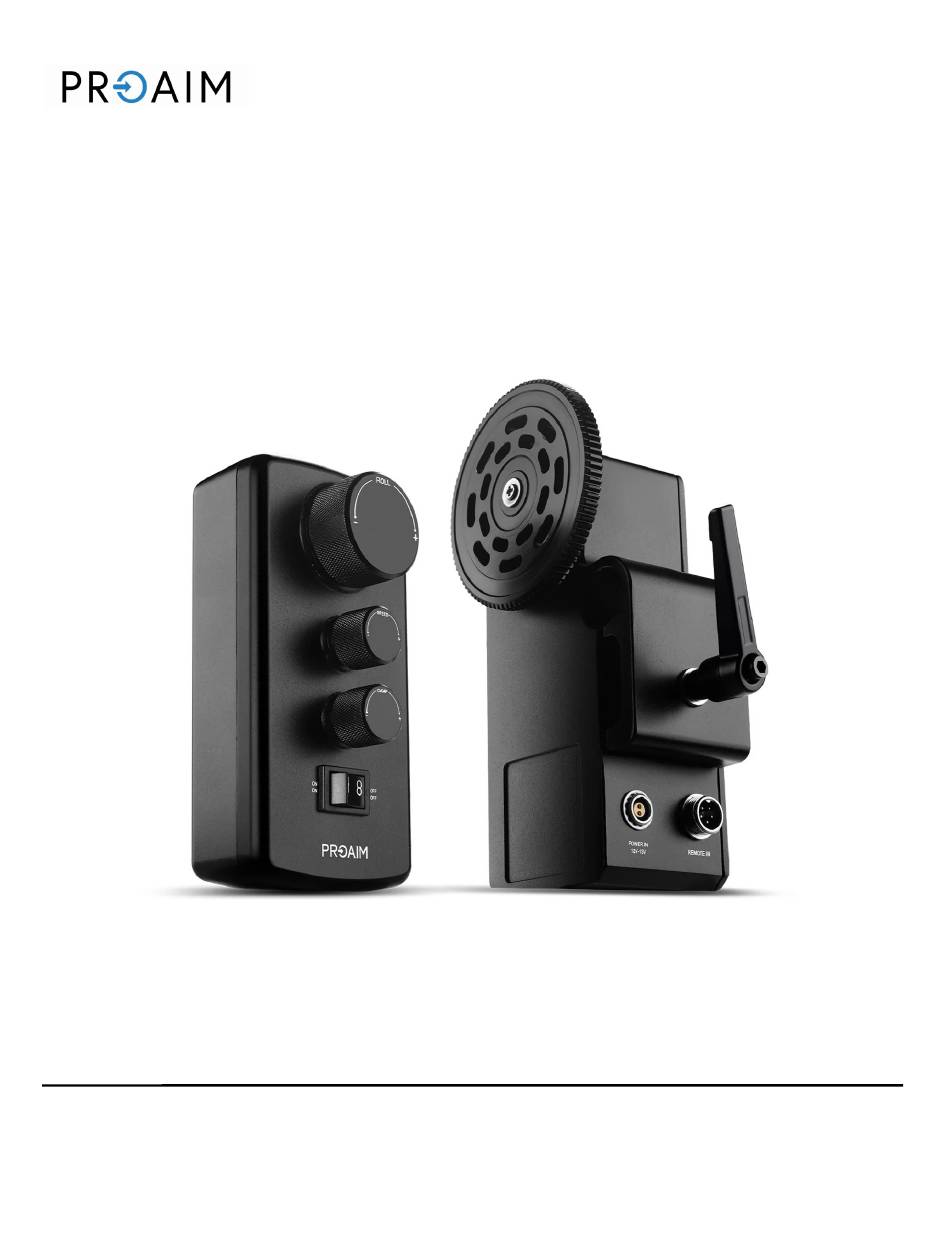

Motion Control for Spinhawk 360° Rolling Video Camera Head (GH-SPHK-MC)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM GH-SPHK-MC
Summary of Contents for PROAIM GH-SPHK-MC
- Page 1 Motion Control for Spinhawk 360° Rolling Video Camera Head (GH-SPHK-MC) All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright...
-
Page 2: What's In The Box
What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. Controller Belt Cable Power Adapter Remote Controller Motor Assembly 1 x Allen Bolt 1 x Allen Key T- Type Mounting Shaft (Size: 1/4”) (Size: 3/16”) -
Page 3: Motion Control
Motion Control Setup Attaching Mounting Shaft • Use a 5mm Allen key (Not included) to loosen and remove the screw on the Spinhawk (Not included). • Detach the steering handlebar from the Spinhawk, as shown in the image. • Insert the mounting shaft into the Spinhawk. •... - Page 4 Attaching Motor Assembly to Spin Hawk • Loosen the ratchet knob on the motor assembly. • Slide the motor assembly onto the mounting shaft. • Once the motor assembly is in place, re-tighten the ratchet knob.
- Page 5 • Reattach the steering handlebar and insert the bolt back into position. • Tighten the bolt securely using a 5mm Allen key. Remote Controller Assembly • Connect the other end of the controller cable to the remote controller. • Turn on the remote controller by pressing the ON button.
- Page 6 Damping: • Ensures smooth, vibration-free movement, minimizing jerks and abrupt shifts.
- Page 7 YOUR PROAIM MOTION CONTROL FOR SPINHAWK ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
