Summary of Contents for SachsenRad E-SUV-CityBike M5 Centro

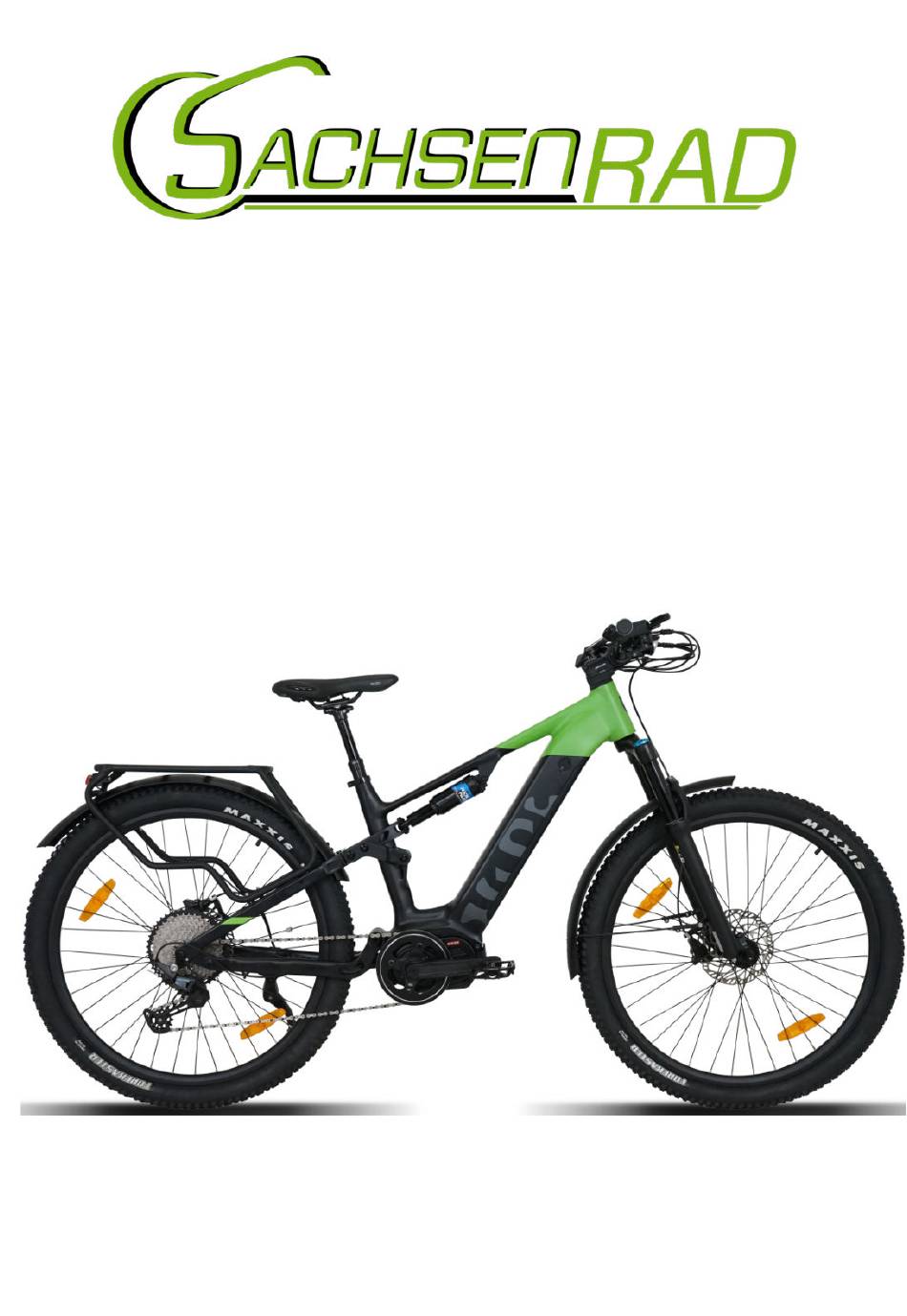

  • Page 1 User manual with e-bike pass and maintenance booklet E-SUV-CityBike M5/M5T Centro Product number: BB12145...
  • Page 2 Congratulations on your new e-bike purchase! This e-bike is a powerful combination of a high-end bicycle, a strong engine and a high-quality lithium battery. Faster and farther with more fun: it is the perfect companion for your fitness program, leisure rides and cargo rides.
  • Page 3: Table Of Contents

    Catalogue 1. DESIGNATION OF THE E-BIKE PARTS ......................5 2. UNPACKING AND ASSEMBLY ........................6 2.1 Remove the e-bike from the box ......................6 2.2 Rotate the stem ............................. 7 2.3 Installing the handlebar ......................... 7 2.4 Installing the pedals ..........................7 2.5 Adjust the support frame and the headlight ..................
  • Page 4 E-BIKE IDENTIFICATION / BICYCLE PASS PLEASE COMPLETE THE FOLLOWING E-BIKE PASS IN MINIMAL FORM, CAREFULLY IN YOUR OWN INTEREST! FRAME NO.* MODEL TYPE BATTERY SERIAL NO. ENGINE (REAR /CENTRE) ENGINE SERIAL NO. (IF PRESENT) SIZE (IN INCHES) COLOUR FRAME/FORK/RIM GEAR SHIFT DERAILLEUR TYPE/NUMBER OF GEARS SPECIAL...
  • Page 5: Designation Of The E-Bike Parts

    INFORMATION ON SERIES AND FRAME NUMBERS Your e-bike has a unique frame number. Make a note of this on the warranty certificate or in connection with your invoice and keep the certificate in case of theft. In this case, the passport contains all the relevant information for the police or your insurance company.
  • Page 6: Unpacking And Assembly

    16. Rear wheel 10. Front wheel 5. Saddle 17. Rear derailleur 11. Disc brake pads for front wheel 6. Seat post 18. Disc brake pads for rear wheel 12. Front brake 7. Seat tube clamp 19. Rear brake 13. Pedals 8.
  • Page 7: Rotate The Stem

    2.2 Rotate the stem A: Loosen the 2 screws with a hex key. B: Rotate the stem 90 degrees and return it to the correct position. Retighten the 2 screws. 2.3 Installing the handlebar A: Loosen the 4 screws with a hex key. Remove the 2 handlebar mounting rings. B: Angle the handlebar, fit the 2 handlebar mounting rings and retighten the 4 screws.
  • Page 8: Adjust The Support Frame And The Headlight

    2.5 Adjust the support frame and the headlight A: If the support frame of the e-bike is not stable, loosen the nuts on the inner side and move the support frame up and down. After you have adjusted the length of the support frame, tighten the inner nut. B: Tighten the 2 screws after adjusting the headlight tilt.
  • Page 9: Adjusting The Saddle Height

    2.8 Adjusting the saddle height A. Press and hold the button on the left side of the handlebar. B. At the same time, press down on the saddle with your hand. C. As soon as the saddle is lowered to your desired height, release the button. D, E: If you need to raise the saddle, press and hold the button.
  • Page 10: Note On Chain Tension

    2.10 Note on chain tension Not after the first few rides, but after a certain period of use, the chain may be worn out due to transmission strength and can be properly adjusted by using a tensioning screw to hold the chain in place. The chain should be set on the smallest tooth of the flywheel.
  • Page 11: Control Display

    For transport reasons, we can only deliver the e-bike with very low tyre pressure. Do not ride the e-bike without first inflating the tyres. Put on your helmet and choose a quiet place away from cars, other bicycles, obstacles or risky environmental conditions.
  • Page 12: User Interface

    3.3 User interface Power-on interface and basic interface After switching on, the logo interface will be displayed for 3 seconds. After the instrument establishes communication and acquires information normally, it will enter the normal riding display interface. Function interface In the basic interface, change the display of each function interface by briefly pressing the M button. If no button is pressed under any function interface within 5 seconds, the device returns to the basic interface.
  • Page 13 Implementing the booster interface ÿ Press and hold the button to enter push assist mode. Clear trip Interface ÿ Press and hold the M button and select ÔYESÕ to clear the trip data. Fault code display interface ÿ When the device receives the fault information returned by the controller, it will display the fault code interface on the device page, prompting the user with relevant electrical system fault information.
  • Page 14 Press to select the parameter. Then shortly press the M button to confirm this parameter. Press and hold the M button to save your settings and return to the previous menu. ÕBASIC SETTINGÕ - parameter setting description: 1) Unit 2) Clock 3) Maintenance reminder 4) Backlight intensity 5) Auto Sleep...
  • Page 15: Ôfind Myõ Function

    3.4 ÔFind MyÕ function Enabling ÔFind MyÕ on your LCD Press and hold to switch on the LCD. Within 10 seconds, press and hold the button to enter the setting interface. Press to select the menu ÔADVANCED SETÕ. Press the M button to enter the password menu. Use the first four digits of the second line (of the barcode on the back of the LCD) as a password.
  • Page 16 Connecting your LCD to your iPhone 1. Press and hold to switch on the LCD: 2. Click the ÒFindMyÓ symbol on your iPhone: 3. Select the ÔItemsÕ tab, click ÔAdd ItemÕ: 4. Click ÔOther supported itemÕ: 5. Click ÔConnectÕ: 6. Enter a name for your item:...
  • Page 17 7. Choose an Emoji: 8. Click ÔAgreeÕ: 9. ÔFind MyÕ is now displayed. Click ÔFinishÕ: 10. The ÔFind MyÕ icon is now also displayed on your LCD screen:...
  • Page 18 Finding your LCD with ÔFindMyÕ When itÕs nearby: 1. Open the ÕFind MyÕ app and select the ÒItemsÓ tab. 2. Find your LCD on the items list. 3. Tap ÒPlay SoundÓ to switch on your LCD and make the front light flash. (The rear light also flashes, if it is correctly installed) 4.
  • Page 19 Disconnecting via your iPhone Note: Your LCD is at power on state. Õ Open the ÔFind My app and select the ÒItemsÓ tab. Find your LCD on the items list. Please ensure that the ÒLost ModeÓ is disabled. Scroll to the bottom of the screen and tap ÒRemove ItemÓ.
  • Page 20: The Battery Use

    Percentage of battery power and the power levels: Percentage of battery margin Battery bar Level 80% f SOC Full battery, level 5 Level 4 60% f SOC < 80% Level 3 40% f SOC < 60% Level 2 20% f SOC < 40% Level 1 10% fSOC <...
  • Page 21: Note On The Battery Usage

    4.1 Note on the battery usage Improper removal, repair, use or storage of the battery may void the warranty and may result in serious consequences. It is strictly prohibited to use the battery of your e-bike for other vehicles or devices. Doing so will void the warranty and may result in serious consequences such as fire, serious injuries or death.
  • Page 22: Range Optimization

    4.4 Range optimization Fully charge the battery ¥ Check tyre pressure (about 2.9 - 3.4 bar recommended - depending on body weight, load and route ¥ profile) Reduce the load ¥ Do not ride too fast ¥ Maintain a constant speed ¥...
  • Page 23 Stem and × × × × handlebar Steering head × × × × bearing Saddle (support) × × × × Frame × × × Circuit × × × × Suspension fork × × × Battery and battery × × × ×...
  • Page 24 Check the bolts and nuts. Raise the front and rear wheels approx. 10 to 20cm and then let your e-bike bounce on the ground. If noises occur, loose parts may be present. Check that the lighting can be used normally. Regular cleaning of your e-bike is recommended.
  • Page 25: Safety Instructions

    7. SAFETY INSTRUCTIONS Please wear a When riding the e-bike, please wear a safe, app roved helmet! It is strictly forbidden to carry people. Please observe the traffic rules and be careful with suddenly opening car helmet! doors. Try to keep away from cars parked at the side of the road in case the door suddenly opens or the car blocks the line of sight so that you cannot see people or things suddenly appearing in time.
  • Page 26: Service Paper

    8. SERVICE PAPER You can use this template voluntarily to have inspections and repairs properly recorded by your mechanics. You are not obliged to do so. In the event of a later warranty claim on your e-bike, this can help us with the assessment and increase the chances of goodwill.
  • Page 27: Frequently Asked Questions About Problems And Their Solutions

    9. F.A.Q. - Frequently asked questions about problems and their solutions Below are some common problems and solutions. If the following methods do not solve your problem, please contact your dealer. Problem Possible cause Solution approach 1. Battery empty 1. Fully charge the battery Control display does not 2.
  • Page 28: Data Sheet

    1. Chain must be regreased 1. Regrease chain Unusual noise 2. Gear change must be readjusted 2. Readjust gear shift* development 3. Chain is too tight 3. Retension chain* 4. Pedal crank has loosened 4. Tighten the crank arms* 5. Steering head bearing has too much 5.
  • Page 29: Disposal

    12. DISPOSAL Our obligation to inform according to the battery law In connection with the sale of batteries or the delivery of devices containing batteries/rechargeable batteries/ lamps, we are obliged to inform you of the following: Do not dispose of your old appliance in household waste! As the end user, you are legally obliged to return used batteries/battery packs/lamps.
  • Page 30: Warranty

    14. WARRANTY Manufacturer's warranty/warranty conditions and service for LEICKE e-bikes Warranty and guarantee: You can make warranty claims within a maximum period of 24 months, calculated from the date of purchase. The warranty is limited to the repair or replacement of the damaged component / e-bike and is at our discretion.
  • Page 31 9. Warranty and guarantee provisions other than those listed above are only valid if confirmed in writing by Leicke GmbH / SachsenRad. 10. Should a technical problem occur with the e-bike you have purchased, please contact the support hotline of Leicke GmbH / SachsenRad. Contact: info@sachsenrad.de LEICKE GmbH, Stšhrerstr.
  • Page 32: Return Receipt

    15. RETURN RECEIPT If you have any questions regarding your e-bike, please contact our customer service department: info@sachsenrad.de Please fill out this form carefully. All information is voluntary. Incomplete completion will not negatively affect your consumer rights, but will complicate and delay the processing of your return.
  • Page 33 If you send this receipt by mail, please include pictures or videos of the defect as attachments. Contact: Leicke GmbH Stšhrerstra§e 17 04347 Leipzig Tel.: 0341 - 218 259 00 E-Mail: info@sachsenrad.de Web: www.sachsenrad.de Ust-IDNr.: DE263609996 Amtsgericht Leipzig HRB: 24739 WEEE-Reg.Nr.: DE 41805037...
  • Page 36 We wish you a good trip with your E-SUV-CityBike M5/M5T Centro...
