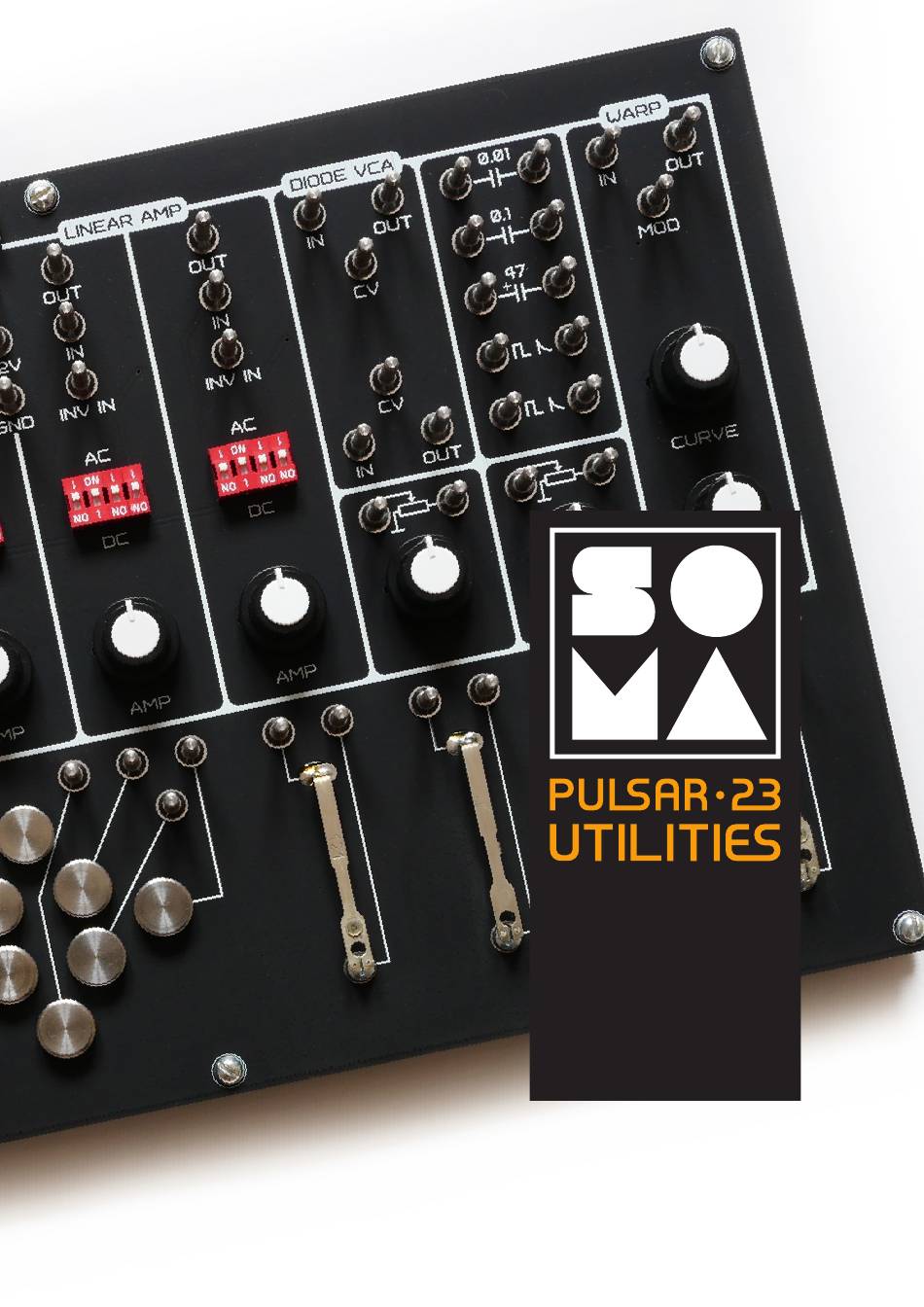

UTILITIES USER MANUAL GENERAL DESCRIPTION UTILITIES contains a set of simple auxiliary modules to expand the functionality of the PULSAR•23 drum machine. UTILITIES modules can also be used with any gear that works with CV signals (Eurorack, semi-modular synthesizers, etc.). The modules included in UTILITIES can be divided into two groups: 1) Passive elements such as switches, resistors, capacitors. - Page 3 USER MANUAL UTILITIES ОПИСАНИЕ МОДУЛЕЙ 5 adapters for 3.5 mm mini-jack (Eurorack) — pins designed to connect the alligator clips. Controlled amplifier-limiter (CLIPPING AMP-VCA). 4 linear amplifiers. 2 diode-controlled amplifiers (DIODE VCA). A set of capacitors and two pulse converters. Waveshaper (WARP).
- Page 4 UTILITIES USER MANUAL ADAPTERS 3.5 mm MINI-JACK ( EURORACK ) — PINS DESIGNED TO CONNECT THE ALLIGATOR CLIPS The tip of the mini-jack is connected to the pin,the sleeve is connected to the UTILITIES ground. Allows you to connect Eurorack to UTILITIES and PULSAR. CONTROLLED LIMITING AMPLIFIER ( CLIPPING AMP-VCA ) Limits the inputs IN and IN2 signals, smoothing their peaks.
- Page 5 USER MANUAL UTILITIES voltage, producing an output signal in the range of -5 to 5 volts. For example, this function is necessary for connecting consumer audio equipment (radio, tape recorder, etc.) to PULSAR, as well as for restoring the signal level after converters (for example, the WARP module). The AMP knob smoothly changes the gain from 1 to 25.
- Page 6 UTILITIES USER MANUAL A SET OF CAPACITORS AND TWO PULSE CONVERTERS There are several capacitors of various capacitance for live circuit bending and two pulse converters. Pulse converters convert a square wave signal into a fast decaying signal, which is necessary for the correct triggering of the PULSAR drum modules.
-
Page 7: Specifications
USER MANUAL UTILITIES ARRAY OF SENSORS FOR BODY PATCHING Allows more convenient and masterful use of PULSAR's unique ability to be controlled by connections of various inputs and outputs through the artist's body. Connect all the necessary inputs and outputs to these contacts and manage them conveniently. SWITCHING BUTTONS Just 4 reliable, easy-to-use buttons that can commutate any signal and endure the passion of your performance. - Page 8 Manual version 1.0 Designed in Russia...
