Hitron CODA-4582 / 4682 / 4782 Manual

Check the Box Contents

STEP 1
Look in the box and make sure you have the following:

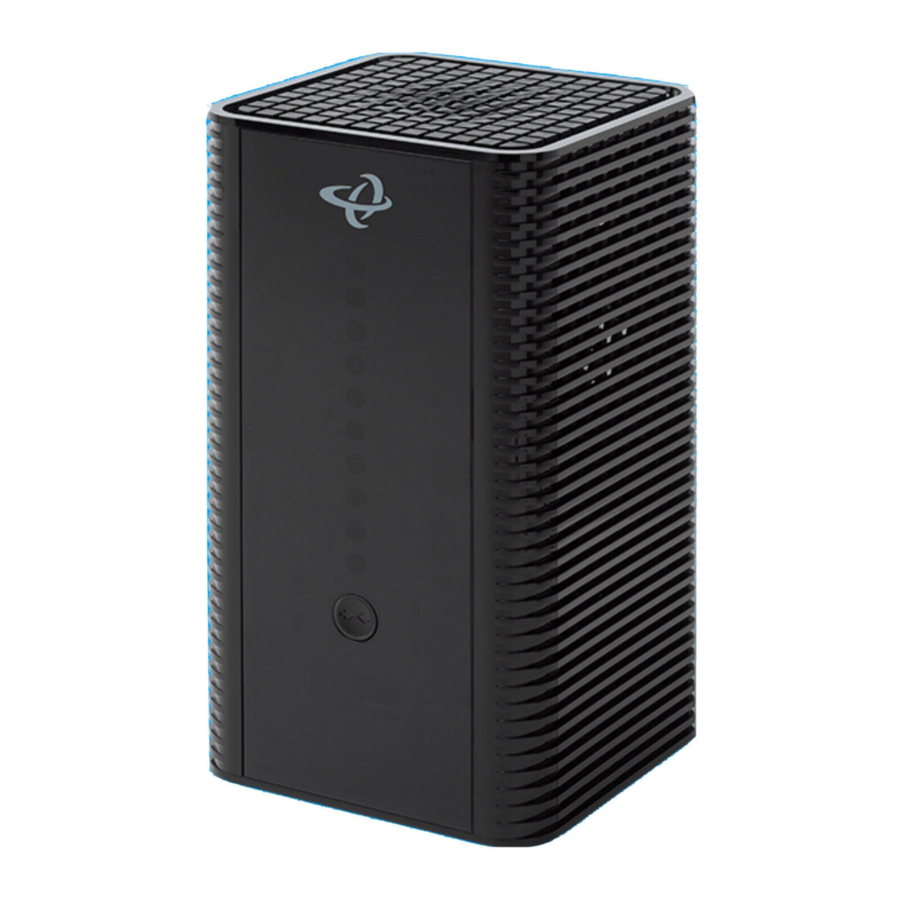

The Hitron CODA-4582/ 4682/ 4782 is an application gateway that provides wired and wireless high-speed Internet access as well as optional MoCA (Multimedia over Coax Alliance) networking to the Ethernet-enabled devices in your home for a fast and easy home entertainment network.

Connect to a Cable Outlet

STEP 2
Use a coaxial cable (not included) to connect the device's CABLE connector to a cable outlet.
Connect to a Cable Outlet

Connect to a Power Outlet

STEP 3
Use the power cord provided to connect the POWER port to a power outlet.
Connect to a Power Outlet

Connect to an Ethernet-Equipped Device (Optional)

STEP 4
Use the Ethernet cable provided to connect one of the LAN ports to an Ethernet-equipped device.
Connect to an Ethernet-Equipped Device

User Configuration (Optional)

STEP 5
In a web browser, enter 192.168.0.1 in the address bar followed by Username and Password, as below.
User Configuration

Connect with Wireless Devices (Optional)

STEP 6
Connect your wireless devices with the correct SSID and Passphrase.
If you have not changed them, the default values are indicated on the sticker on the back of the unit.

Connect your wireless devices with the WiFi Protected Setup (WPS). Access the configuration interface (see step 5), enter the Wireless page to enable WPS and set Encrypt Mode to AES, then press Save Changes.

Press this button to begin the WPS Push-Button Configuration (PBC) procedure. Press the PBC button on your wireless clients in the coverage area within two minutes to enable them to join the wireless network.

Setup Complete

STEP 7
Congratulations! You have successfully set up your CODA-4582/ 4682/ 4782. If you have any problems, see the section below for help in identifying the cause.

IP Addresses
If the CODA-4582 is successfully connected to the network (see LED Display) but you cannot access the Internet from a connected computer, your computer's IP Address may be set up improperly. In your computer's network settings, ensure that it is configured to either receive an IP address automatically (recommended) or that it has a static IP address in the 192.168.0.10~192.168.0.254 range. For more information, consult your operating system's Help documentation.

LED Display


Power
Green-Steady Device is running with AC power.
Off Not powered.


Downsteam Connect power

Green-Blinking The modem is searching for the downstream frequency.
Green-Steady Downstream frequency is locked. (1 channel only)
Blue-Steady Downstream frequency is locked. (channel bonding)
Cyan-Steady DOCSIS 3.1 OFDM
Off Not scanning

Upsteam
Green-Blinking The modem is searching for the upstream frequency.
Green-Steady Upstream frequency is locked. (1 channel only)
Blue-Steady Upstream frequency is locked. (channel bonding)
Cyan-Steady DOCSIS 3.1
Off Not scanning

Online
Green-Blinking Registration is in progress with cable company's
Green-Steady head-end. Gateway is operational for data transmission.
Off Gateway is offline.

Ethernet
Green-Blinking Ethernet is activated.
Off Ethernet is disabled.

Wireless (2.4GHz)
Green-Blinking The 2.4GHz wireless network is enabled, and data is being transmitted or received.
Green-Steady The 2.4GHz wireless network is enabled, and no data is being transmitted or received.
Off The 2.4GHz wireless network is not enabled.

Wireless (5GHz)
Green-Blinking The 5GHz wireless network is enabled, and data is being transmitted or received.
Green-Steady The 5GHz wireless network is enabled, and no data is being transmitted or received.
Off The 5GHz wireless network is not enabled.

MoCA (Optional)
Green-Blinking Gateway is searching for MoCA device.
Green-Steady MoCA device has been detected, and the CODA-4582/ 4682/ 4782 has successfully made a connection.
Off MoCA function is not enabled.

USB
Green-Blinking USB device is plug-in USB port.
Off No USB device.

Safety Warnings


Risk of electrical shock.

  • Do not expose the device to water or moisture.
  • The device is a high-performance communications device designed for home and office environments.
  • Do not use the device outdoors.
  • Keep the device in an environment between 0°C ~ 40°C (32°F ~104°F).
  • To avoid overheating, do NOT place any object on top of the device.
  • Do not restrict the flow of air around the cable modem.
  • The manufacturer assumes no liabilities for damage caused by any improper use of the device.
