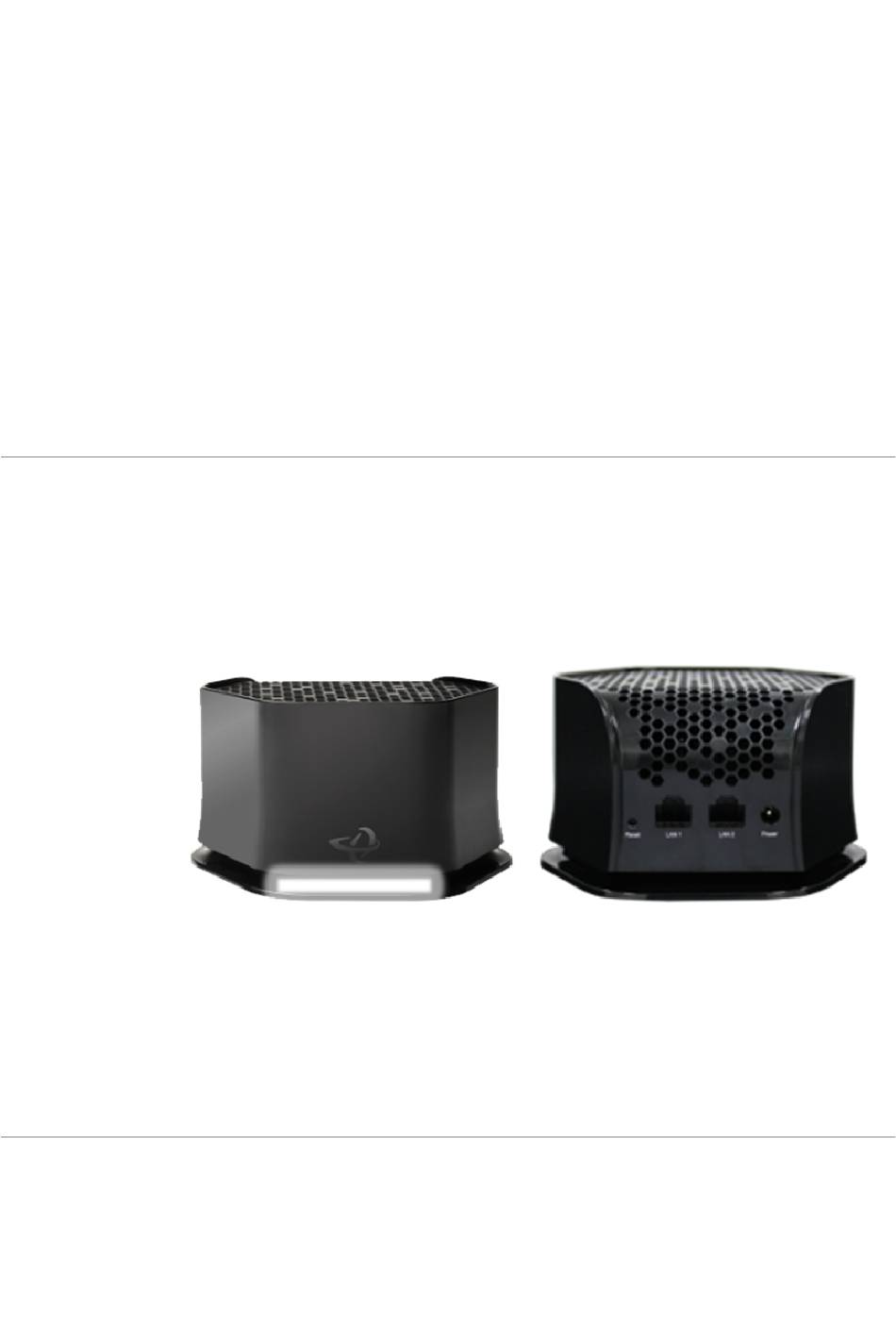

Quick
Enhanced
In this article, we will walk you through the steps of setting
up the Aria2210 Enhanced WiFi as a router and confirm the
.customer has the Aria2210 router added to their account

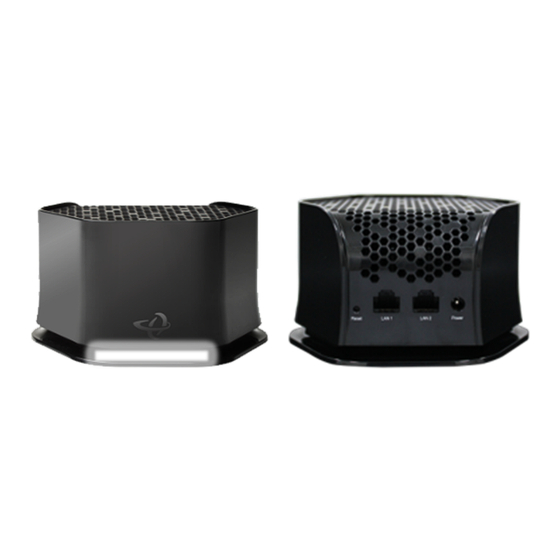

The Enhanced WiFi solution includes a NEW WiFi ARIA2210
.router, which will replace the SB2+ routing functionality
You will see "ROUTER_1.0" on the FSM work order if the
.customer qualifies to get the new Enhanced WiFi equipment
Tips
(Installation(US
Guide:
VS-1
WiFi
!IMPORTANT
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hitron VS-1 Aria2210 Enhanced WiFi
Summary of Contents for Hitron VS-1 Aria2210 Enhanced WiFi
- Page 1 Quick Tips Guide: VS-1 Enhanced WiFi (Installation(US In this article, we will walk you through the steps of setting up the Aria2210 Enhanced WiFi as a router and confirm the .customer has the Aria2210 router added to their account The Enhanced WiFi solution includes a NEW WiFi ARIA2210 .router, which will replace the SB2+ routing functionality You will see “ROUTER_1.0”...
- Page 2 If the customer is upgrading to a VS1 High-Speed plan .1 and has an SB2 Modem: Swap out the SB2 modem for an SB2+ Modem, activate the SB2+ modem, and add the ARIA2210 router. You will ONLY re-point and peak if the customer is .currently on our Anik F2 or Wildblue-1 satellites If the customer is upgrading to a VS1 High-Speed plan .2 and already has an SB2+ modem:...
- Page 3 The free service call for installation also includes setting .up the WiFi network on the ARIA2210 router for the customer NOTE: The EasyConnect setup process flow is used for initial .setup or after a Factory Reset is performed Step 1 – Connect ARIA2210 Plug the ARIA2210 router into Port 1 (located at the top, closest to the Voice port) of the SB2+ modem.
- Page 4 Do not connect any Ethernet cable to the LAN2 port on .the ARIA2210 Only one Ethernet cable should be connected to the .ARIA2210 during this setup After completing the ARIA2210 install, the customer can later use the LAN2 Ethernet port on the ARIA2210 to connect to other .wired network devices Step 2 –...
- Page 5 .three minutes Waiting until the ARIA2210 light stabilizes to a .consistent color combination See LED Status Light Information section below for .a definition of the status light Push in the Reset button on the back of the ARIA2210 Router and hold it in for at least 10 seconds until the light flashes red, green, and blue.
- Page 6 Go into the WiFi settings of their wireless device, such .as a phone, tablet, or laptop In the WiFi settings, connect to the ARIA2210 default Network Name, such as “Hitron4475c-EasyConnect“. They will see the word “Hitron” and “EasyConnect” in the .name Step 4 – Access the Router Interface...
- Page 7 Y o u w i l l r e d i r e c t e d a b o u t 1 0 - 1 5 s e c o n d s .the EasyConnect flow to start the ARIA2210 configuration If you are not automatically redirected, have the customer open a browser and type in the URL: 192.168.0.1 “!Select “Ready to go...
- Page 8 Make sure the light on the ARIA2210 is slowly blinking white. .Once it is click the “Next” button Step 6 – Select ARIA2210 Function IMPORTANT: During the Aria router WiFi setup process, be sure to select “Configure as a router,” and NOT “Configure as an extender.”...
- Page 9 Select the top option indicated as “Configure as a “router .“Select “Next Step 7 – Confirm ARIA2210 Connection to the Internet .The ARIA2210 was able to connect to the Internet...
- Page 10 .Have the customer select “Next” to complete the setup :WARNING Message If a Warning message appears saying: “We detected that you have an Ethernet cable connected from your modem to the ARIA2210, but we are not detecting a DHCP IP address. Please Reboot your modem.
- Page 11 NEXT.” instead of the Success screen shown here, have the customer disconnect and reconnect power to the Modem, ARIA2210, and reboot their computer. Go to the beginning of .this setup procedure in this section Step 8 – Create Admin Password .Enter a Password that they will remember Have the customer write down this Password and keep it for future reference.
- Page 12 .“Select “Next Router Login For router: Ask the customer to enter the :username and password Username = cusadmin Password = cusadmin Step 9 – Create WiFi Network Name & Password...
- Page 13 Have the customer enter a WiFi Name they want to use for .their WiFi Network Have the customer enter a WiFi Password that they need to remember. This Password can be the same or different .as defined in the previous step Hint: The customer can click on the eye icon to the right of the Password to display the Password .they entered...
- Page 14 .write this information .“Select “Next Step 10 – Name the ARIA2210 Have the customer enter the Room, Country, and Time Zone .information If the customer does not want the LED on during normal operation, they can disable it by sliding the blue dot to the left.
- Page 15 .“Select “Next You will be taken to a confirmation screen, showing the name of the ARIA2210 device, the name .of the WiFi network, and the network password Step 11 – Confirmation Screen .This completes the installation of the ARIA2210 The WiFi Network login information is displayed for connecting any of the customer’s devices to the WiFi .Network...
- Page 16 If a message appears indicating an upgrade is available, ask the customer to select the option to upgrade the .unit After the unit is upgraded and boots back up, the customer should see a solid white light on the .ARIA2210 After the ARIA2210 light turns to a solid white, the customer can connect to the ARIA2210 WiFi Network using the Network .Name and Password displayed on the last screen...
- Page 17 complete, make sure the customer is able to connect their WiFi .devices to the new WiFi network and access the Internet Taking a few extra minutes at the end of the installation to support the customer, may help the customer with future .frustration and calls into support later...
