babymoov Milky Now, A002301 Manual

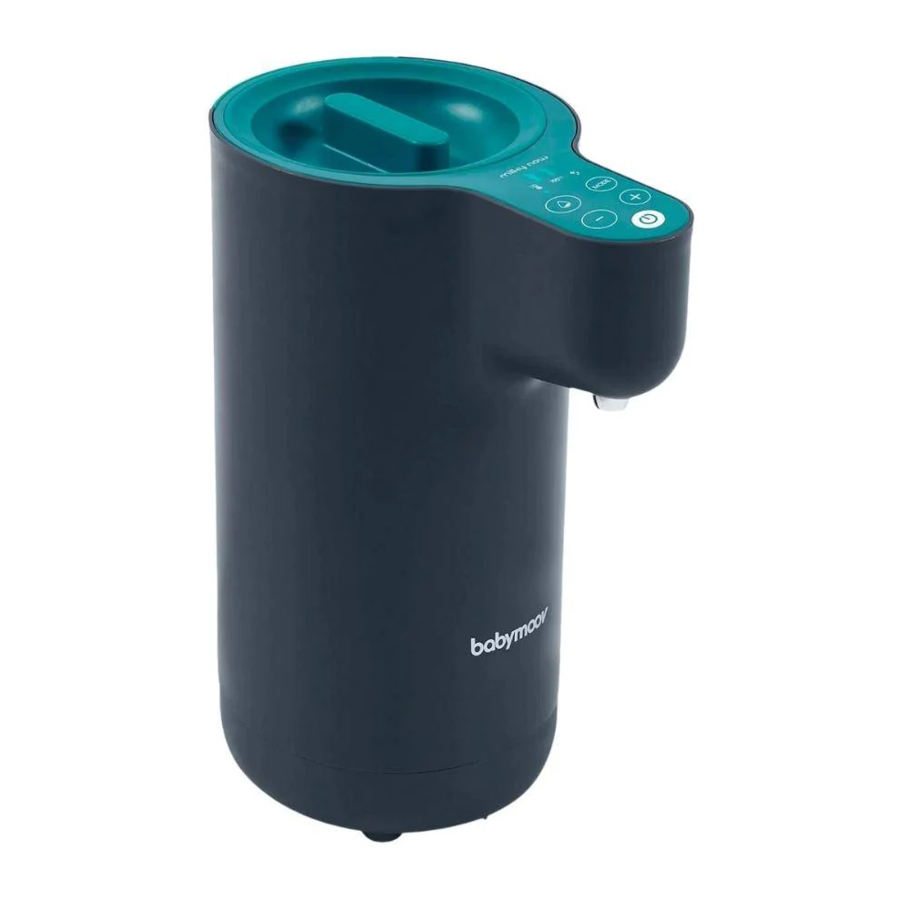

COMPONENTS OF THE MILKY NOW BABY BOTTLE WATER HEATER

COMPONENTS OVERVIEW

MILKY NOW CONTROL PANEL

An appliance that makes life easier for parents: make up all your baby bottles to exactly the right temperature in one simple step!
For your safety, we recommend that you always read the instructions in their entirety before using the baby bottle water heater for the first time.

TECHNICAL SPECIFICATIONS

Input: 220 V – 50 Hz.
Heating power: 800 W.

Maximum capacity: 1.1L
Heating time: 36 seconds**

STARTING THE APPLIANCE

Milky Now can be used for warm water for your baby bottles or hot drinks (tea, herbal tea, etc.).

BEFORE USING FOR THE FIRST TIME

Wipe the product with a damp cloth (except the electric plug).
Add water to the tank and run the cleaning function before using the appliance for the first time.

never immerse the electric base in water.

3 FUNCTIONS

1		for heating your water to the required temperature.
2		for purifying your water by boiling it. for rapidly cooling water using the automatic fan.
3		for cleaning your Milky Now.

STARTING THE 3 FUNCTIONS

Plug in the appliance.
Place a baby bottle or container underneath the water outlet.
Pour water into the baby bottle water heater (1.1L maximum).
Switch on the appliance: press the ON/OFF button for 1.5 seconds. The appliance and control panel light up.

warning Low water level
When you press the button, no liquid will come out of the water outlet if the water level is too low. If you have selected one of the 3 functions: your appliance will display "E2" or "E3". Add water to the fill tank and restart the selected cycle. The "E2" or "E3" messages will disappear after a few seconds.

FUNCTION 1

CHOOSING THE HEATING TEMPERATURE AND KEEPING THE WATER HOT

Press the MODE button once to choose the function.
Choose the required temperature by pressing the buttons. The required temperature must be between 22°C and 85°C. To set your temperature, press the buttons. Once you have selected your temperature, you will hear a beep. Once the water reaches the required temperature, there is another beep.
Your water is now hot. Press the button to dispense the water:
- Press once: 60ml of water is dispensed.
- Press and hold = water dispenses continuously.

  the water pouring out of the baby bottle water heater may be hot, take care not to scald yourself.

KEEPING WATER HOT FUNCTION
This function starts automatically once the required temperature is reached. It will remain active for 6 hours unless any other button is pressed. After 6 hours, the appliance turns itself off and the water drops down to room temperature.

FUNCTION 2

BOILING YOUR WATER TO 100°C

Press the MODE button twice to choose the function.

When you have selected the function and the display is flashing, choose the temperature you wish to reach after boiling (between 22°C and 85°C) by pressing the buttons. Once you have selected your temperature, you will hear a beep. The water continues to heat up until it reaches boiling point, then stops. You will hear a second beep to let you know that the water has reached 100°C. The water will then cool down via the fan until it reaches the pre-set temperature. There will be a final beep to alert you.

FUNCTION 3

EASILY CLEANING YOUR BABY BOTTLE WATER HEATER

Press the MODE button three times to choose the function. On selecting this function, the water will boil.
The water continues to boil for 3 minutes, then stops. You will hear a beep to let you know that the appliance has finished its cycle.
Once the water is boiling, you can add a few drops of lemon to the tank to make it easier to clean.
Once the water reaches 100°C, press the button to distribute the boiling water and lemon round the various channels in the appliance.
T he water will then cool down naturally. Note that, the hotter your water, the more time it will take to cool down to the right temperature.
Once the temperature has come down, pour the water used to clean your baby bottle water heater down the sink.
Use a cotton cloth to wipe away any remaining water.
TIP.You can also use this function instead of function 2 if you don't like the noise produced by the fan.
NOTE: the water will take longer to cool down naturally.

CARE GUIDE

To ensure your Milky Now baby bottle water heater works effectively, reduce the build-up of scale and ensure the channels are clean inside the appliance, make sure you clean your appliance once a week (depending on how often you use it) and also if you do not use your appliance for two consecutive days.

To thoroughly clean your appliance, follow the recommendations for function 3.
To regularly clean the appliance, use function 3.

To clean the outside of the Milky Now:

always unplug the appliance and ensure the tank is cold.
clean the outer casing with a soft damp cloth. Leave to dry naturally.

FAQ AND TROUBLESHOOTING

PROBLEMS	POSSIBLE CAUSES	SOLUTION
Appliance does not heat	Thermostat is not connected.	Wait for the appliance to cool down then switch it back on.
Appliance does not heat	The temperature set is below that of the actual water temperature.	Follow the instructions to set the temperature.
"E2" or "E3" appears on the control panel	The water level is too low.	Add water.

** for heating 0.3L of water from 20°C to 37°C

Safety information

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN YOUR PRODUCT OVERHEATING OR BECOMING DAMAGED.
Intended for use by adults only.
READ ALL THE INSTRUCTIONS CAREFULLY BEFORE USING YOUR BABY BOTTLE WATER HEATER.

To avoid danger, if the electrical cable is damaged, it must be replaced by the manufacturer, its after-sales service department or a qualified electrician.
Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
The surface of the heating element may emit residual heat after use.
This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Keep the appliance and its cord out of reach of children aged less than 8 years.
Children shall not play with the appliance.
If the water is overfilled, boiling water may be ejected.
do not remove the lid whilst the water is boiling.
Ensure water does not spill out onto the connector.
This appliance is designed to be used for domestic and suchlike applications such as:
- kitchen areas reserved for personnel in stores, offices and other professional environments,
- farms,
- u se by hotel, motel customers and other accommodation environments,
- bed and breakfast environments.
Clean the appliance using a damp cloth only.
Cleaning and user maintenance shall not be made by children without supervision.
Do not switch on the appliance if the power cord or plug is damaged or after the appliance has malfunctioned or if it has been damaged in any way. Return the appliance to your closest authorised service centre to be inspected, repaired or adjusted.
If the power cable is damaged, it must be replaced by the manufacturer, its aftersales service or similarly qualified persons in order to prevent a hazard.
Electrical and electronic equipment must be collected separately from household waste. Do not discard electrical and electronic appliances with non-separated municipal waste. Make sure they are disposed of via a separated waste collection.

PRECAUTIONS
READ ALL THE ATTACHED INSTRUCTIONS CAREFULLY BEFORE USING THE BABY BOTTLE WATER HEATER.

To prevent the risk of electric shock, do not immerse the apparatus or its electrical cord in water or any other liquid.
Do not use the appliance for any purpose other than heating and dispensing water. Using it for any other purpose may be dangerous.
The apparatus contains no parts useful to the user for repairs. Do not disassemble the apparatus.
Monitor the apparatus when in use with children nearby. Keep the apparatus out of reach of children.
This apparatus is for indoor use only. Do not use outdoors.
Do not allow electrical cord to hang over the edge of the table or counter. Do not place near hot surfaces.
Use the apparatus on a flat, stable and dry surface.
Do not place the apparatus on a hot surface or near an oven or gas burner, or any other heat source.
Do not touch the hot surfaces on the apparatus (heating chamber).
Do not move the apparatus during use, once it has been plugged in, or if it contains hot water.
Do not use the appliance under wet conditions and do not place it directly in water.
The appliance must not be immersed.
