Wolf Link Home / Pro Manual

About this document

1. Read this document before you start working on or with the product.
2. Follow the instructions in this document.

Failure to comply with the specifications in this document will void the manufacturer's warranty.

Presentation conventions

Symbols
The following symbols are used in this document:

Symbol	Meaning
1.	Steps are numbered
✓	A necessary requirement
→	The outcome of an action
	Important information regarding proper use

Abbreviations

Safety

Required qualifications

• All work on the product must be performed by a specialist contractor.
• Only qualified electricians are permitted to work on electrical components.
• The product may only be serviced or repaired by the WOLF customer service team or a specialist authorised by WOLF.
• Have all inspection and maintenance work performed by a specialist contractor trained by WOLF.

Intended use

Only use the product in conjunction with WOLF products. The product enables remote access to WOLF control components to display states or measured values and change parameters via a secure internet connection.

Incorrect use

Any use other than the intended use is not permissible. Any other use or changes to the product at any time including during assembly and installation invalidate all warranty claims. The user has sole liability for such use.

This appliance is not intended to be operated by persons (including children) with restricted physical, sensory or mental capacities or who lack the necessary experience and/or knowledge, unless they are supervised by a person responsible for their safety or have received instructions on how to use the appliance from this person.

Safety measures

1. Never remove, bypass or otherwise disable any safety or monitoring equipment.
2. Only operate the product if it is in perfect technical condition.
3. Immediately rectify any faults and damage that impair safety.
4. All faulty components must be replaced with original WOLF spare parts.
5. Wear personal protective equipment.

Product description

Important information about the product

Overview

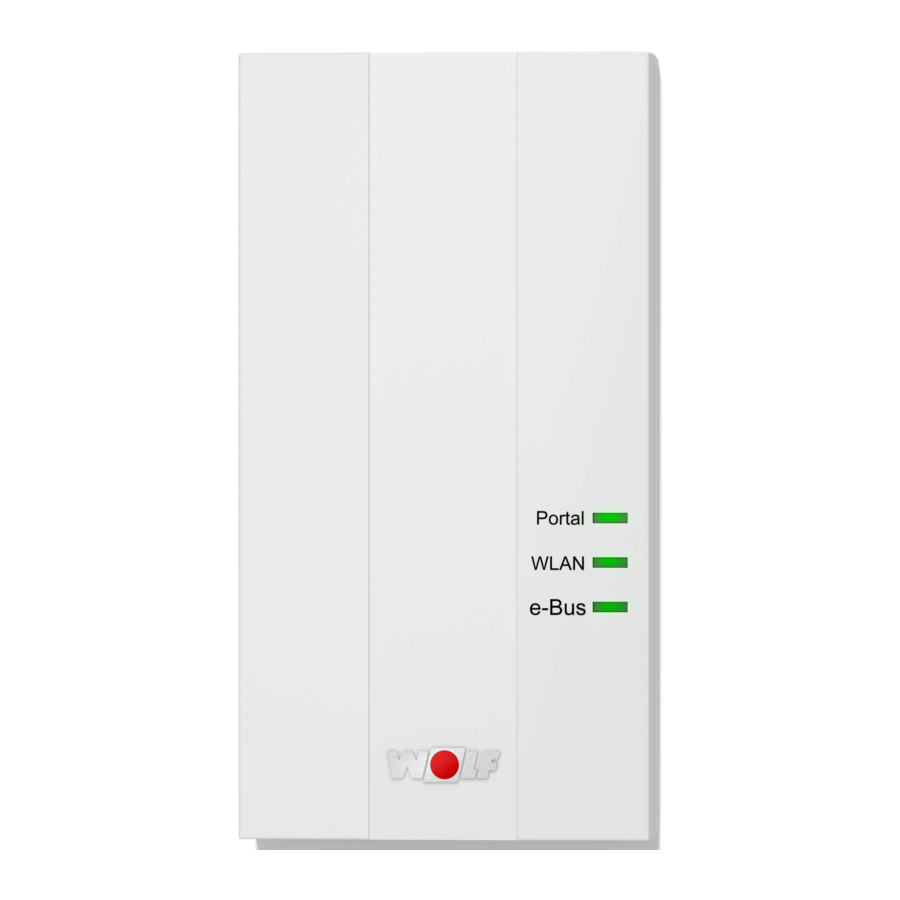

WOLF Link home

1. LEDs
2. Button
3. Type plate

Product identification

Type plate

1. Password
2. Serial number

Controls and displays

Button

Depending on the duration of a button press, various functions can be selected. The LEDs start to light up when the button is pressed.

Table 1:

LEDs

Table 2:

Commissioning

General information

Requirements for commissioning

• This WOLF Link is installed by a contractor in accordance with the operating instructions for contractors.
• An internet connection via LAN or WLAN (sufficiently strong and stable wireless network) is available in the installation room of the heating or ventilation appliance.

Recommendations

WOLF generally recommends establishing a wired internet connection (LAN). This ensures a stable, uninterrupted connection that requires no further effort even when changing the router or WLAN password.

The easiest and fastest way to set up the WOLF Link is via the commissioning assistant in the WOLF Smartset app (See "Commissioning via Smartset app (LAN or WLAN with WPS"). The connection can be established via LAN or WLAN.

If the paths described in the Smartset app are unavailable due to local conditions, such as a long distance between router and heating appliance or the nature of the router used, or if no DHCP is available (e.g. company network), an alternative method of manual commissioning is described in "Manual commissioning when connected to the internet via WLAN (wireless)".

Preparation for commissioning

1. Download the Smartset app:
   iOS:



   Android


2. Open the Smartset app and use the login button to register.

Commissioning via Smartset app (LAN or WLAN with WPS)

✓ An internet connection via LAN or WLAN (sufficiently strong and stable wireless network) is available in the installation room of the heating or ventilation appliance.

✓ The network uses DHCP.

✓ To establish a connection via WLAN: The WPS function is available on the router.

✓ The heating or ventilation appliance is switched on.

✓ Smartphone on the same network to which the WOLF Link is to be connected.

✓ The Smartset app is installed on the smartphone, the user is registered and logged in. (See "Preparation for commissioning").

• In the Smartset app, select Profile > System List > + > Commissioning Assistant.
  → The commissioning assistant will guide you through the commissioning process.

INFO
Setting up a WLAN connection via WPS button
It may take a few minutes to establish a connection. The connection is successfully established as soon as the red LED is permanently lit.

Manual commissioning when connected to the internet via WLAN (wireless)

This procedure is appropriate if one of the following conditions is met:

• WLAN is to be used, but no WPS is available.
• Commissioning using the commissioning assistant in the Smartset app is not possible due to local conditions such as the physical distance between the router and heating or ventilation appliance or the nature of the router used.
• DHCP is not available (e.g. corporate network).

Procedure

✓ An internet connection via LAN or WLAN (sufficiently strong and stable wireless network) is available in the installation room of the heating or ventilation appliance.

✓ The heating or ventilation appliance is switched on.

✓ Smartphone on the same network to which the WOLF Link is to be connected.

✓ The Smartset app is installed on the smartphone, the user is registered and logged in. (See "Preparation for commissioning").

✓ The "Mobile data" option is temporarily disabled on the smartphone you are using.

1. In the WLAN settings of the smartphone, select the network WOLFLINK- (...).
2. Enter the individual WOLF Link password next to "PW:" on the sticker.
3. If the message WOLFLINK- (...) has no internet access is displayed, confirm this with Yes.
4. Scan the following QR code or, alternatively, open an internet browser on your smartphone, enter http://192.168.1.1 (do not use https://...!) in the address bar and confirm.

5. On the opened web page, select Network.
6. Enter and confirm your login details in the pop-up window:
   • User: admin
   • Password: the individual password next to "PW:" on the sticker

1. Select the home network under WLAN settings and enter the password. The pre-selected WLAN encryption method is usually appropriate, but this can be adjusted if necessary.
   INFO
   No DHCP (e.g. corporate network)
   If no DHCP is available, uncheck Automatically obtain network settings (DHCP) and enter all required data (fixed IP address). If necessary, ask the network administrator for the information.
2. Select Connect.
3. If the Smartset portal (web or app) is to be used to remotely control the system via the internet, See Step 4, otherwise Step 7.
4. On the opened web page, select Settings.
5. Check Activate internet connection with the WOLF SmartSet portal.
6. Select Save settings.
   → After the restart, the system can be managed via the Smartset portal.
7. Select Restart.
8. Open the Smartset app.
9. Select Add system or select Profile > System List > +.
10. Select Add manually.
11. Fill in the data fields Desired system name, Interface module serial number (see WOLF Link type plate) and Interface module password (see WOLF Link type plate) and confirm with Add.
12. Select system from the System List.
13. Enter the serial number of the heating or ventilation appliance (sticker with bar code on the appliance) under Information > Appliance serial number and save.
    → The system is now available in the Smartset app.

SmartHome integration

Instructions for integrating the WOLF Link into a smart home system:

www.wolf.eu/inbetriebnahme-smarthome
