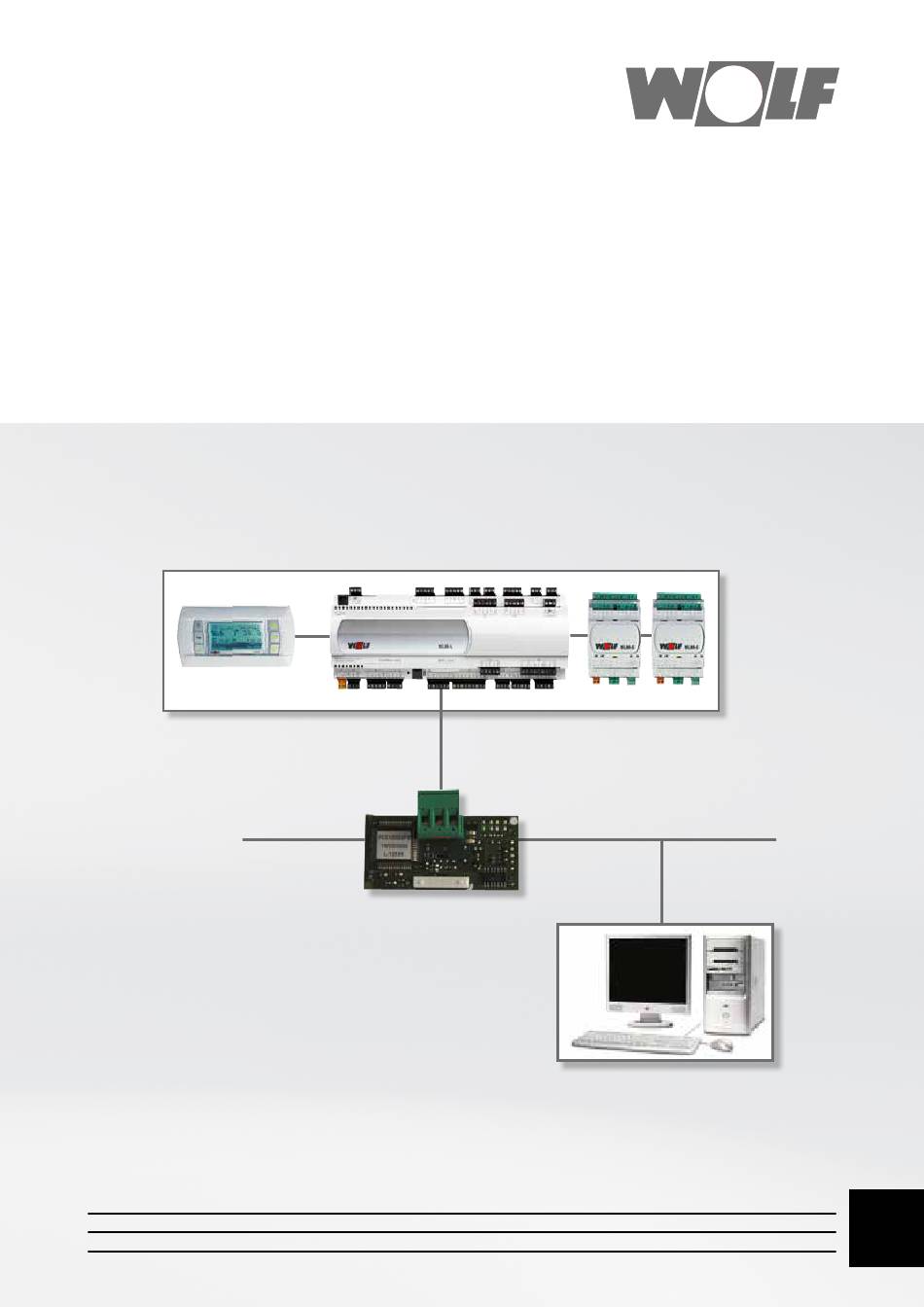

- Page 1 Installation and operating instructions LON interface for WRS-K (Translation of the original) WOLF GMBH / POSTFACH 1380 / D-84048 MAINBURG / TEL. +49(0) 87 51 74- 0 / FAX +49(0)87 51 74- 16 00 / www.WOLF.eu Part no.: 3062941_201707 Subject to technical modifications...
-
Page 2: Table Of Contents
1. Contents Contents 1. Contents ................2 2. Documentation information..........3 3. Standards and directives .............4 4. Installation ................5-6 5. Connection to a LON-Works network ........7 6. LED displays................7 7. Network variables ............8-14 8. Specification ..............15 3062941_201707... -
Page 3: Documentation Information
You will recognise warnings in this manual by a pictogram with a line above and below respectively. These warnings are structured according to the following principle: Signal word Type and source of the risk. Explanation of the risk. → Action to prevent the risk. 2.4 Applicability of These operating instructions are valid for the LON interface for WRS-K. these instructions 3062941_201707... -
Page 4: Standards And Directives
3. Standards and directives The components of the Wolf WRS-K control system comply with the following regulations: EC Directives - 2006/95/EC Low Voltage Directive - 2004/108/EC EMC Directive EN Standards - EN 55014-1 Emission - EN 55014-2 Immunity - EN 55022 Radio disturbance characteristics... -
Page 5: Installation
4. Installation 4.1 View Connection block to the KLM-M or KLM-L control unit Terminal block for the LON-Works network Service pin Green service LED Red fault LED 4.2 Installation The LON interface is usually supplied fully assembled with the control unit. If it is retrofitted, please observe the following points: The LON interface is inserted into the (serial card / BMS card) slot on the KLM-M control unit (part no. - Page 6 The transfer rate is then automatically set to 4800 and the BMS address to 001. 7. Confirm these entries with Enter. 8. Use Esc to complete the entry and exit the menu item. The precise procedure for operating the BMK programming module can Note be found in the WRS-K installation and operating instructions. 3062941_201707...
-
Page 7: Connection To A Lon-Works Network
Please consult the relevant instruction manual. 5.3 Files The LON interface is supplied with the application files (.xif, .nxe) already installed. In addition, the files in their latest version are available to download from the Wolf homepage (www.wolf-heiztechnik.de). 6.1 Service LED (green):... -
Page 8: Network Variables
Operating status nvoOperation SNVT_switch Special operating mode nvoSpecial SNVT_state Central fault nvoAlarm SNVT_switch Current alarm code nvoAlarmCode1 SNVT_state nvoAlarmCode2 SNVT_state nvoAlarmCode3 SNVT_state nvoAlarmCode4 SNVT_state Required value = 10 times the specified value Available WRS-K software version 3.0.000 or higher 3062941_201707... - Page 9 An enabled alarm code is transferred via 3 SNVT_state variables (nvoAlarmCode1/2/3). When the alarm is enabled, the associated bit is set. More detailed descriptions of fault messages and possible solutions can be found in the WRS-K installation and operating instructions. Variable...
- Page 10 Refrigeration system controller, databus fault KVS control unit, databus fault KVS control unit switched off (standby) BMS outside temperature implausible Available WRS-K software version 3.0.000 or higher Available up to WRS-K software version 2.1.031 Included in WRS-K software version 5.3.000 or higher 3062941_201707...
- Page 11 Network variables 7.2 Write access With write access, set values can be specified or adjusted in the control unit, subject to operating mode, via a LON-Works network. For safety reasons, all variables that are available for BMS write access are monitored regarding their min./max. limits. If a value outside the valid value range is sent, the value is rejected and the original value is retained.
- Page 12 7. Network variables If a LON interface module is installed, the system can be operated in 3 different 7.2.2 Operating mode operating modes: Manual mode 7-day program BMS mode Manual mode The system runs with the set values specified for manual mode via the BMK programming module.
- Page 13 The set values for speed or pressure can be adjusted via the remote control in 3 stages (see WRS-K installation and operating instructions). Here, the set value is altered according to the values specified in the standard settings for supply air and extract air.
- Page 14 7. Network variables In BMS mode, all set values are specified via the LON interface. The system is also 7.2.4 BMS mode switched on and off via the LON interface. The following variables are effective: nviTempSet (set temperature) nviSpSupSet (set speed for supply air fan) nviSpExhSet (set speed for extract air fan) nviFrAirSet (set value for fresh air proportion) nviPresSupSet (set pressure for supply air)
-
Page 15: Specification
8. Specification Operating conditions -0-55 °C, 20-80 % r.H. not condensing Storage conditions -20-70 °C, 20-80 % r.H. not condensing Transceiver Echelon FTT-10A Transfer rate 78.125 kb/s Power supply Via KLM 3062941_201707... - Page 16 WOLF GmbH Postfach 1380 · D-84048 Mainburg · Tel. +49-(0)8751/74-0 · Fax +49-(0)8751/741600 Internet: www.wolf.eu 3062941_201707 Subject to technical modifications...
