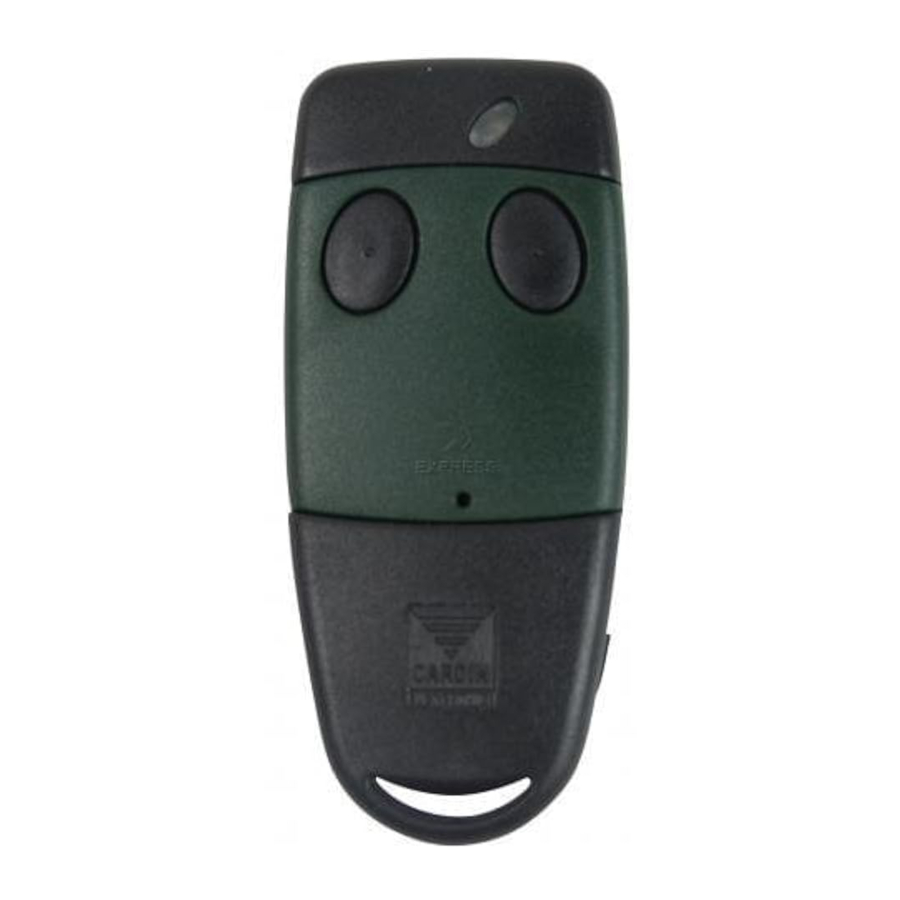

Cardin S449 QZ2, S449 QZ4, S449 QZ4M, S486 QZ2 Manual

Activation / Deaktivation of the secure mode

If you need to press the button three times to emit a signal and so the LED turns on, the remote is in the secure mode. To disable this mode please do the following steps:

1. Press with a sharp object the hidden button inside the remote. (figure 1, P1) The LED of the remote lights up permanently. Keep the hidden button pressed.
2. After a few seconds the LED on the remote turns off. Release the hidden button.
3. The secure mode is now disabled. You can start to program the remote now.
4. Once the programming was successful, you can enable the secure mode again by following the steps above.

Programming of your new remote using a already programmed remote

1. Approach your motor (1 - 2 m distance).
2. Press with a sharp object the hidden button inside the already programmed remote (figure 1, P1). The receiver will emit a short beep. Let go of the button.

   Figure 1
3. Press the button on the already programmed remote which you want to copy. The receiver will beep again. Release the button.
4. Press the button you want to program on the new remote. The receiver will beep briefly twice. Release the button.
5. Wait a few seconds, the receiver will beep long time.
6. Repeat the process for each additional button to be programmed.
7. Your new remote is programmed.

Note: at Etape 2 when the receiver emits a long beep after the short beep before point 3, you have to start from Etape 2 again.

Programming Manual

Note: Take a look at the key assignment of the remotes on our picture to know which button matches with which on the new remote.

From a receiver without digital screen

1. Open the casing of your receiver. It is located next to your motor.
2. On the receiver circuit board (diagram above), press the programming button (MEMO). Keep it pressed down. The LED light of the receiver blinks.
3. While keeping pressed down the button MEMO, press the button you wish to program on your new remote control until the LED light of the receiver turns off.
4. Let the buttons go.
5. The LED light of the receiver blinks.
6. Press the button on your new remote control again. Let it go.
7. The LED light of the receiver turns off.
8. Repeat this procedure for each button you wish to program.
9. Wait 10 seconds.
10. Your new remote control is programmed.


From a receiver with digital screen

1. Open the casing of your receiver. It is located next to your motor.
2. On the receiver circuit board (fig), with the aid of the UP and DOWN buttons you select an available number. A point at the bottom right means that the place is taken. If there is no point you can stop on this position for programming the new remote control.
3. Once you find an available position, press the programming button (MEMO/DEL). Hold the button. The display shows MEM.
4. Hold the button MEMO/DEL and press the button you wish to program on your new remote control. Always holding the button MEMO/DEL, let the button on your new remote control go and press a second time the same button on your new remote control. The display shows a letter belong to the programmed button.
5. Let the button go.
6. Your new remote control is programmed.

TEL : +44 (0) 207 399 7782
FAX : +44 (0) 207 927 3151

http://www.remotecontrol-express.com
