Sony A6400 (ILCE-6400A) Manual

About the manual for this product

This guide describes the necessary preparations to start using the product, basic operations, etc. For details, refer to the "Help Guide" (web manual).

"Help Guide" (Web manual)
https://rd1.sony.net/help/ilc/2450/h_zz/

Preparations

Checking the supplied items

The number in parentheses indicates the number of pieces.

  • Camera (1)
  • Battery charger (1)
  • Power cord (mains lead) (1) * (supplied in some countries/ regions)
    * Multiple power cords may be supplied with this equipment. Use the appropriate one that matches your country/region. See Notes on use.
  • Rechargeable battery pack NP-FW50 (1)
  • Micro USB cable (1)
  • Shoulder strap (1)
  • Eyepiece cup (1)
  • Body cap (1)*
    * Only for the ILCE-6400A/ILCE-6400AM
  • Shoe cap (1) (attached to the camera)
  • Startup Guide (this manual) (1)
  • Reference Guide (1)

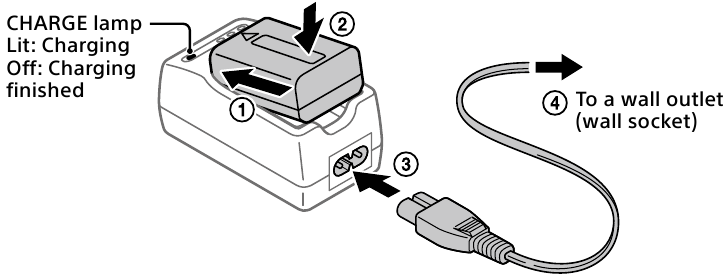

Charging the battery pack

  1. Insert the battery pack into the battery charger, and connect it to a wall outlet (wall socket) using the power cord (supplied).
    Place the battery pack on the battery charger in the direction of . Slide the battery pack in the direction of the arrow as far as it will go.
    Charging the battery pack

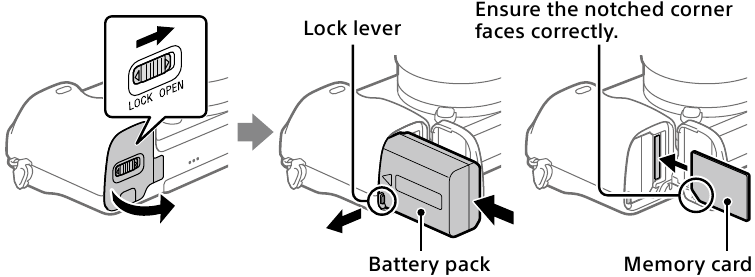

Inserting the battery pack/memory card into the unit

Inserting battery pack/memory card into the unit
Open the battery/memory card cover, and insert the battery pack and a memory card into the camera. Then, close the cover.

Battery pack (supplied)
Make sure that the battery pack is facing in the correct direction, and insert it while pressing the battery lock lever.

Memory card (sold separately)
Insert the memory card with the notched corner facing as illustrated.
This camera is compatible with SD memory cards or Memory Stick media. For details on the compatible memory cards, refer to the "Help Guide."
When you use a memory card with this camera for the first time, format the card using the camera in order to stabilize the performance of the memory card.

Note

  • Formatting erases all data, including protected images and registered settings (M1 to M4). Once erased, this data cannot be restored. Save valuable data to a computer, etc. before formatting.

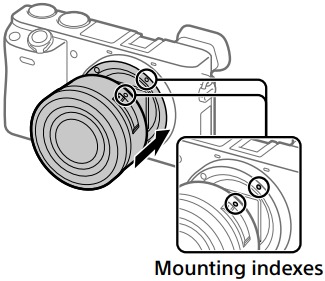

Attaching a lens

  1. Remove the body cap from the camera and the rear lens cap from the rear of the lens.
  2. Mount the lens by aligning the two white index marks (mounting indexes) on the lens and camera.
    Attaching a lens
  3. While pushing the lens lightly toward the camera, turn the lens slowly in the direction of the arrow until it clicks into the locked position.

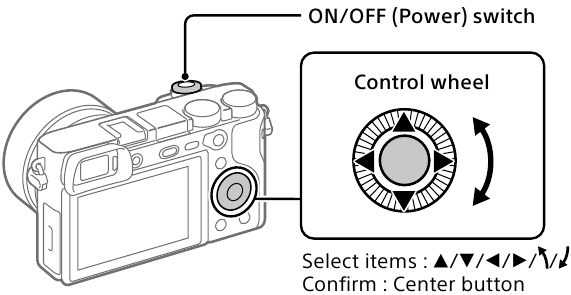

Setting the language and the clock

Setting the language and the clock

  1. Set the ON/OFF (Power) switch to "ON" to turn on the camera.
  2. Select the desired language and then press the center of the control wheel.
  3. Make sure that [Enter] is selected on the screen and then press the center.
  4. Select the desired geographic location and then press the center.
  5. Set [Daylight Savings], [Date/Time], and [Date Format], and then select [Enter] and press the center.
    If you want to reconfigure the date/time or the area setting at a later point, select MENU → (Setup) → [Date/Time Setup] or [Area Setting].

Shooting

Shooting still images

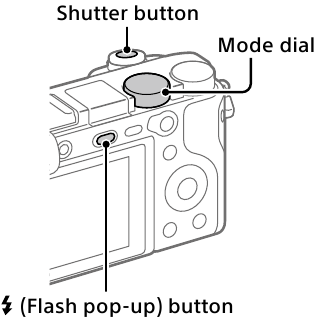

Shooting - Shooting still images

  1. Select the desired shooting mode by turning the mode dial.
  2. Press the shutter button halfway down to focus.
  3. Press the shutter button all the way down.

Changing the monitor angle

You can change the monitor angle to shoot from any position you like.

  1. High position (holding the camera high)
  2. Low position (holding the camera low)
  3. Selfie position (facing the monitor toward you to take a selfie)

Using the flash

Press the (Flash pop-up) button to pop up the flash.
Restore the flash to its original position after using it. Make sure that the flash portion is not sticking up.

Shooting movies

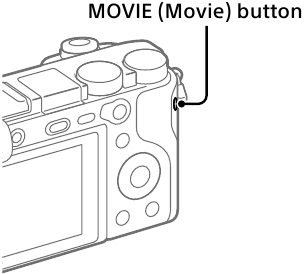

Shooting - Shooting movies

  1. Press the MOVIE (Movie) button to start recording.
    Movie recording can be started from any shooting mode in the default setting.
  2. Press the MOVIE button again to stop recording.

Preparing to use the smartphone application

By connecting the camera to a smartphone using the smartphone application Imaging Edge Mobile, you can transfer images to the smartphone and view images stored on the camera on the smartphone.
Install Imaging Edge Mobile from the following support page.
https://www.sony.net/iem/

Update to the latest version of Imaging Edge Mobile.

Notes on use

Refer to "Precautions" in the "Help Guide" as well.

Notes on handling the product

  • This camera is designed to be dustand moisture-resistant, but is not waterproof or dust-proof.
  • Remove any dirt from the surface of the flash. Dirt on the surface of the flash may emit smoke or burn due to heat generated by the emission of light. If there is dirt/dust, clean it off with a soft cloth.
  • Do not use the flash near the eyes of people or animals. It may cause vision problems.
  • When using the flash or AF illuminator, keep the camera at least 1 m away from subjects.
  • Emitting a flash at drivers may dazzle them and cause an accident.
  • burn hazard Do not leave the lens or the viewfinder exposed to a strong light source such as sunlight. Because of the lens's condensing function, doing so may cause smoke, fire, or a malfunction inside the camera body or the lens. If you have to leave the camera exposed to a light source such as sunlight, attach the lens cap to the lens.
  • burn hazard When you shoot with backlighting, keep the sun sufficiently far away from the angle of view. Otherwise, the sunlight may enter the focus inside the camera and cause smoke or fire. Even if the sun is slightly away from the angle of view, it may still cause smoke or fire.
  • Do not directly expose the lens to beams such as laser beams. That may damage the image sensor and cause the camera to malfunction.
  • Do not look at sunlight or a strong light source through the lens when it is detached. This may result in unrecoverable damage to the eyes or cause a malfunction.
  • Do not leave the camera, the supplied accessories, or memory cards within the reach of infants. They may be accidentally swallowed. If this occurs, consult a doctor immediately.

Notes on the monitor and electronic viewfinder

  • The monitor and electronic viewfinder are manufactured using extremely high-precision technology, and over 99.99% of the pixels are operational for effective use. However, there may be some small black dots and/or bright dots (white, red, blue or green in color) that constantly appear on the monitor and electronic viewfinder. These are imperfections due to the manufacturing process and do not affect the recorded images in any way.
  • When shooting with the viewfinder, you may experience symptoms such as eyestrain, fatigue, motion sickness, or nausea. We recommend that you take a break at regular intervals when you are shooting with the viewfinder.
  • If the monitor or electronic viewfinder is damaged, stop using the camera immediately. The damaged parts may harm your hands, face, etc.

Notes on continuous shooting
During continuous shooting, the monitor or viewfinder may flash between the shooting screen and a black screen. If you keep watching the screen in this situation, you may experience uncomfortable symptoms such as feeling of unwellness. If you experience uncomfortable symptoms, stop using the camera, and consult your doctor as necessary.

Notes on recording for long periods of time or recording 4K movies

  • The camera body and battery may become warm with use – this is normal.
  • If the same part of your skin touches the camera for a long period of time while using the camera, even if the camera does not feel hot to you, it may cause symptoms of a low-temperature burn such as redness or blistering. Pay special attention in the following situations and use a tripod, etc.
    • When using the camera in a high temperature environment
    • When someone with poor circulation or impaired skin sensation uses the camera
    • When using the camera with [Auto Power OFF Temp.] set to [High]

Sony lenses/accessories
Using this unit with products from other manufacturers may affect its performance, leading to accidents or malfunction.

Warning on copyrights
Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

Notes on location information
If you upload and share an image tagged with a location, you may accidentally reveal the information to a third party. To prevent third parties from obtaining your location information, set [ Location Info. Link Set.] to [Off] before shooting images.

Notes on discarding or transferring this product to others
Before discarding or transferring this product to others, be sure to perform the following operation to protect private information.

  • Select [Setting Reset] → [Initialize].

Notes on discarding or transferring a memory card to others
Executing [Format] or [Delete] on the camera or a computer may not completely delete the data on the memory card. Before transferring a memory card to others, we recommend that you delete the data completely using data deletion software. When discarding a memory card, we recommend that you physically destroy it.

Notes on wireless LAN
If your camera is lost or stolen, Sony will bear no responsibility for any loss or damage caused by illegal access.

Notes on security when using wireless LAN products

  • Always make sure that you are using a secure wireless LAN to avoid hacking, access by malicious third parties, or other vulnerabilities.
  • It is important that you set the security settings when using a wireless LAN.
  • If a security problem arises because no security precautions are in place or due to any inevitable circumstances when using a wireless LAN, Sony bears no responsibility for the loss or damage.

How to turn off wireless network functions (Wi-Fi, etc.) temporarily
When you board an airplane, etc., you can turn off all wireless network functions temporarily using [Airplane Mode].

How to turn on or off Wi-Fi function
Select MENU → (Network) → [Ctrl w/ Smartphone] → [Ctrl w/ Smartphone] → [On] or [Off].

How to turn on or off Bluetooth function
Select MENU → (Network) → [Bluetooth Settings] → [Bluetooth Function] → [On] or [Off].

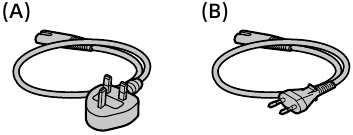

Power Cord
For the customers in the UK, Ireland, Malta, Cyprus and Saudi Arabia
Use the power cord (A). For safety reasons, the power cord (B) is not intended for above countries/regions and shall therefore not be used there.
For the customers in other EU countries/regions
Use the power cord (B).
Choosing a Power Cord

Notes on charging
This device cannot be charged directly.

For Customers in the USA
For question regarding your product or for the Sony Service Center nearest you, call 1-800-222-SONY (7669).

For Customers in Europe
Deactivating the power management function will increase the energy consumption of the product.

Specifications

Camera
Model No. WW764721
Rated input: 7.2 V , 2.4 W
Operating temperature: 0 to 40°C (32 to 104°F)
Storage temperature: –20 to 55°C (–4 to 131°F)
Dimensions (W/H/D) (Approx.):
120 × 66.9 × 59.7 mm
120 × 66.9 × 49.9 mm (from grip to monitor)
4 3/4 × 2 3/4 × 2 3/8 in.
4 3/4 × 2 3/4 × 2 in. (from grip to monitor)
Mass (Approx.):
403 g (14.3 oz) (including battery pack, SD memory card)

Eco and energy saving
Power consumption (Off mode): Not available
Power consumption (Standby mode/Low power mode): 0.5 W
Power consumption (Networked standby mode): 2.0 W (Bluetooth) / 2.0 W (all terminals and networks connected)
Low power mode activated: Within 20 minutes (default)
Networked standby mode activated: Within 20 minutes (default)

Battery charger
BC-TRW
Rated input:
100 - 240 V , 50/60 Hz,
0.2 A - 0.1 A
Rated output: 8.4 V , 400 mA

Rechargeable battery pack
NP-FW50
Rated voltage: 7.2 V

Recommended USB AC adaptor
Input: 100-240 V , 50/60 Hz
Output: 5 V , 1.5 A or more
Design and specifications are subject to change without notice.

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.
https://www.sony.net/
