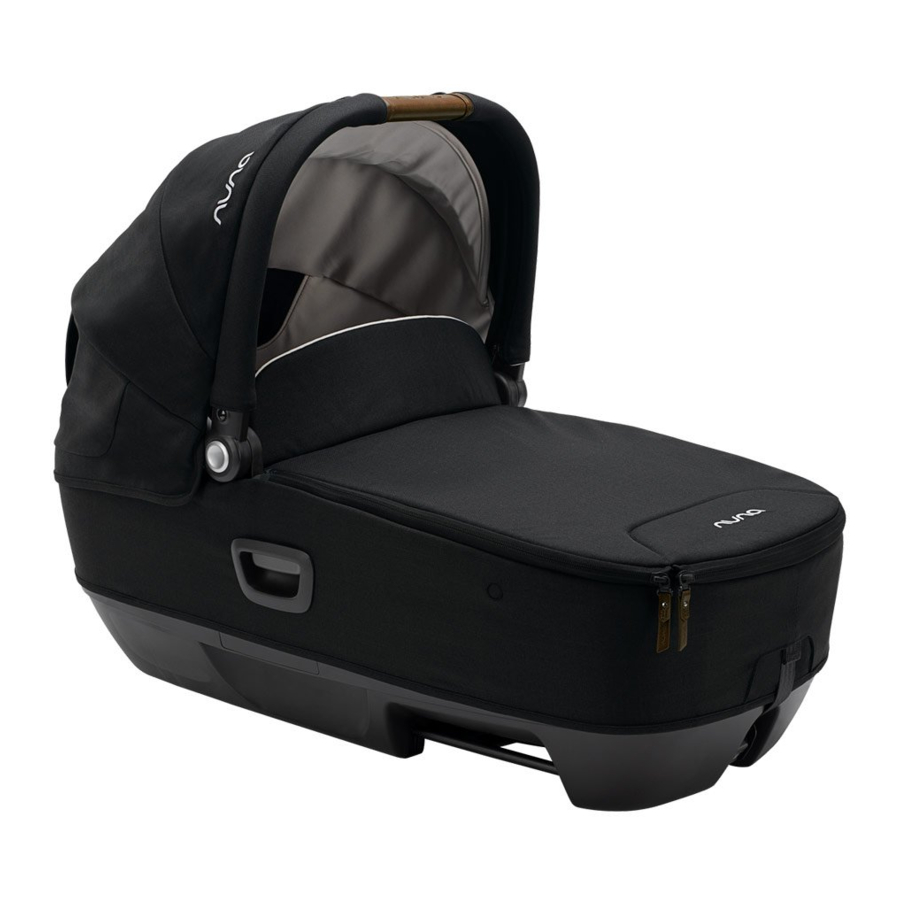

Nuna CARI Next Manual

WARNING

Failure to follow these warnings and instructions could result in serious injury or death.
DO BE cautious that the rigid items and plastic parts of a enhanced child restraint system shall be located and installed so that they are not liable to become trapped by a moveable seat or in a door of the vehicle.
Use carry-cots perpendicular to the longitudinal axis of the vehicle.
To use this enhanced child restraint according to the UN Regulation No.129, your child must meet the following requirements.
Child height 40cm-70cm/ Child weight ≤9kg;
Any support-leg should be in contact with the vehicle floor and any straps restraining the child should be adjusted to the child's body. The straps should not be twisted.
This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see.
Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and danger of not following closely the installation instructions provided by the enhanced child restraint manufacturer.
Please keep this enhanced child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch the enhanced child restraint before placing child in it.
Children are not left in their enhanced child restraint system unattended.
Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
The enhanced child restraint system shall NOT BE USED without the soft goods.
The soft goods should not be replaced with any other than the one recommended by the manufacturer, because the soft goods constitutes an integral part of the restraint performance.
The instructions should be retained on the enhanced child restraint for its life period.
Please also pay attention to the instructions and warnings in the vehicle manufacturer's handbook.
DO NOT use or add any mattress other than the one supplied with the carry cot by Nuna.
DO NOT use the rotation function when installing with BASE next.

Product Registration

Please record the model number and the manufactured date. You can find them at the bottom of the enhanced child restraint.

To register your product please visit:
www.nunababy.com
Click the "Register Gear" link on the homepage.

Child Usage Requirements

This product is suitable for use with children who meet the following requirements:

Figure for Installation	Suitable for
	Child height 40cm-70cm/ Child weight≤9kg

1. This is an Integral Specific vehicle ISOFIX Enhanced Child Restraint System.
2. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.
3. CARI next carry cot is compatible with BASE next and ARRA Base.

! For installation with ARRA Base, please refer to ARRA Base manual.

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1. Handle
2. Dream Drape
3. Carry Cot Cover (style may vary)
4. Adjustment Webbing
5. Webbing Adjustment Button
6. Handle Adjustment Button
7. Carry Cot Release Button (from stroller)
8. Infant Insert
9. Buckle
10. Shoulder Harness Covers
11. Instruction Manual Storage Compartment
12. Crotch Harness Cover
13. Mattress Pad
14. Accessory Bag (maximum load = 0.45kg)

Installation Concerns

This enhanced child restraint system is only suitable for vehicle seats equipped with ISOFIX anchorage bars. (1)

DO NOT install this enhanced child restraint on vehicle seats that face sideways or rearward with respect to the moving direction of the vehicle.

Please refer to your vehicle owner's manual for recommended or suggested installation positions. (2)

This enhanced child restraint must be installed on the rear vehicle seat. (3)

DO NOT install this enhanced child restraint on movable vehicle seats during installation.

Product Use

Base Installation

1. Attach the ISOFIX guides to the vehicle's ISOFIX anchor bars (see vehicle owner's manual). (4) The ISOFIX guides can protect the surface of the vehicle seat from being torn. They can also guide the ISOFIX connectors.

2. Unfold the load leg from storage compartment. (5)

3. Extend the ISOFIX connectors by pressing the ISOFIX adjustment button while pulling on the connector. (6)

4. Press the ISOFIX adjustment button to adjust the ISOFIX connectors. Line up the ISOFIX connectors with the ISOFIX guides, and then click both ISOFIX connectors into the ISOFIX anchor bars. (7)


! Make sure that both ISOFIX connectors are securely attached to the vehicle's ISOFIX anchor bars. There should be two audible clicks and the colors of the indicators on both ISOFIX connectors should be completely green. (7)-1
! Check to make sure the base is securely installed by pulling on both ISOFIX connectors.

5. After placing the base on the vehicle seat, extend the load leg to floor (8). When the load leg is installed correctly, the load leg indicator will show green. Red will be shown when installed incorrectly. (8)-2


! The load leg has multiple positions. When the load leg indicator shows red this means the load leg is in the wrong position.
! Make sure the load leg is in full contact with the vehicle floor pan. Squeeze the load leg adjustment button, then shorten the load leg upwards. (8)-1

The completely assembled base is shown as (9).
! The ISOFIX connectors must be attached and locked onto the ISOFIX anchor bars. (9)-1
! The load leg must be installed correctly with green indicator. (9)-2

Attaching Carry Cot to the Base

1. Pull up the canopy as illustrated while pressing the buttons on both sides. (10)

2. Check to make sure the handle is secure before placing the child in the carry cot. (11)-1


! Make sure that the handle is in the correct position of use before carrying or lifting.

3. Push the carry cot down onto the base (12), if the carry cot is secure, the shell indicator will show green. (13)



! Please check that the mesh at the bottom of the carrycot is fixed properly before installing carry cot. (12)
! Check that the carry cot is locked onto the base by pulling up on the handle.

4. Press the ISOFIX adjustment and push the base back until it comes in contact with the vehicle seat back.
5. To release the carry cot, squeeze the infant carrier release button on the base (14)-1, then lift the carry cot up. (14)-2


! When carry cot is installed on base, the incorrect installation is shown in (16). The correct installation is shown in (15)

Uninstalling the Base

1. To remove the base, press the secondary lock button (17)-1 first followed by the button (17)-2 on the ISOFIX connectors before removing the base from the vehicle seat. (17)

2. For transporting, press ISOFIX adjustment button and move the ISOFIX connectors back into the storage position. (18)


Securing Child

1. Open the carry cot cover. (19)

2. Press the harness adjustment button while pulling the both shoulder harnesses of the enhanced child restraint to the desired length. (20)

3. Unlock the buckle by pressing the red button. (21)


! We recommend using the infant insert while the baby is under 60cm and until they outgrow the insert.

! Remove the side wing of the infant insert when the baby's shoulders no longer fit comfortably. (22)

4. Place child into the enhanced child restraint and engage the buckle. (23)(24)

5. Tighten the shoulder harness straps by pulling the adjustment webbing. (25)


! Make sure the space between the child and the shoulder harness straps is about the thickness of one hand.

6. Attach the cover to the carry cot with the zippers on either sides. (26)

7. To use the dream drape, secure it to the two sides of carry cot with magnets. (27)

8. The canopy window can be opened for ventilation. (28)


Detach & Assemble Soft Goods

Follow steps (29) - (42) to detach soft goods.
To re-attach the soft goods please repeat the above steps in the reverse step.

Cleaning and Maintenance

Clean the frame, plastic parts, and fabric with a damp cloth, but do not use abrasives or bleach. Do not use silicon lubricants as they will attract dirt and grime. Do not store the carry cot in a damp place.
To ensure long-lasting use, wipe this product off with a soft, absorbent cloth after using it in rainy weather and before storing away.
Refer to the care labels attached to the soft goods for washing and drying instructions.
It is normal for fabric to color from sunlight and to show wear and tear after a long period of use, even when used normally. For reasons of safety,
only use original Nuna parts.
Check regularly if everything functions properly. If any parts are torn, broken, or missing, stop using this product.

Contact

For replacement parts, service, or additional warranty questions, please contact our customer service department.
info@nunababy.com
www.nunababy.com

NUNA International B.V.
Van der Valk Boumanweg 178 C
2352JD Leiderdorp
The Netherlands

In the United Kingdom:
infouk@nunababy.com
www.nunababy.com
