Cherry MW 3000 Manual

Overview

Overview

  1. LED for battery status, DPI setting and wireless connection
  2. Browser forward
  3. Browser back
  4. DPI switch

Before you begin...

information Every device is different!
The operating instructions contain information on effective and reliable use.
  • Read the operating instructions carefully.
  • Keep the operating instructions and pass them on to other users.

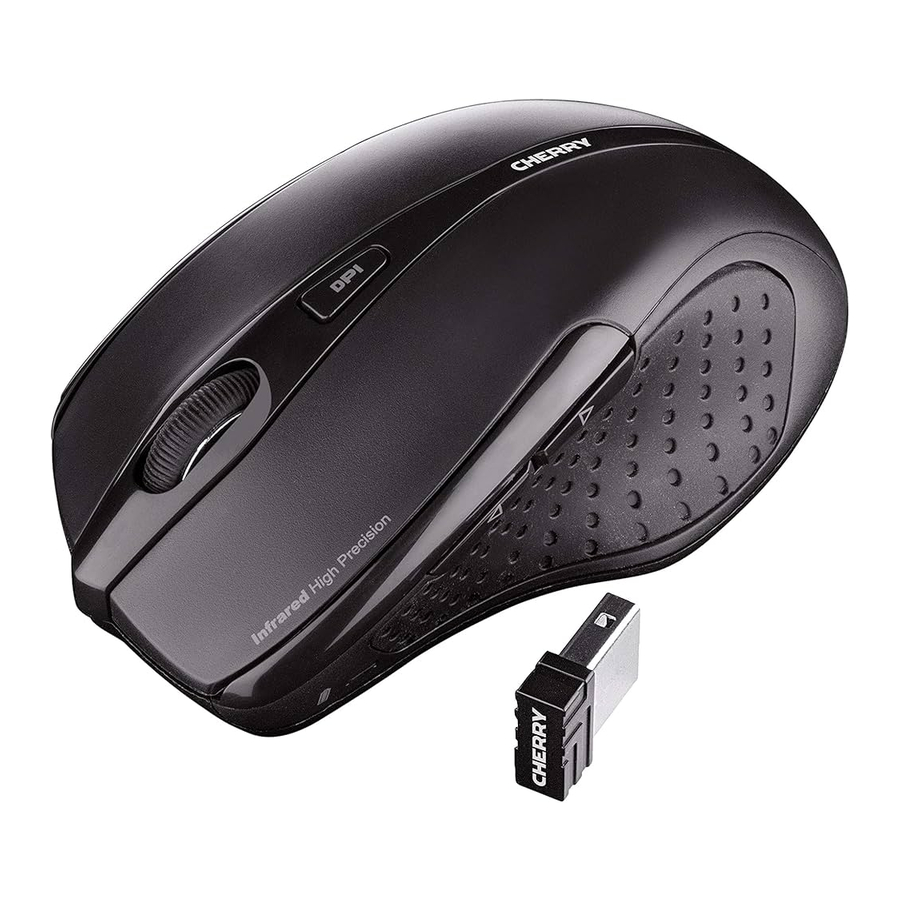

The CHERRY MW 3000 is a wireless mouse for operating PCs and laptops.

For information on other products, downloads and much more, visit us at www.cherry.de.

For your safety

Risk of choking from swallowing small parts

  • Keep the device out of the reach of children under 3 years.

Danger of explosions due to wrong or incorrectly inserted batteries

  • Only use batteries of the type named in the technical data.
  • Insert the batteries in accordance with the markings (+/-) in the battery compartment.

RSI stands for "Repetitive Strain Injury"
RSI arises due to small movements continuously repeated over a long period of time.

  • Set up your workspace ergonomically.
  • Position the keyboard and mouse in such a manner that your upper arms and wrists are outstretched and to the sides of your body.
  • Take several short breaks, with stretching exercises if necessary.
  • Change your posture often.

Connecting the receiver to the PC/ laptop

  1. Open the battery cover of the mouse, press the "PUSH" button and remove the receiver.
  2. Connect the receiver to a USB 2.0 port on your PC/ laptop if possible (this usually has a white or black guide).
  3. Insert batteries into the mouse.
  4. Set the switch on the bottom of the mouse to ON. The mouse LED flashes for about 9 seconds and the mouse is connected to your PC/laptop.

Storing the receiver in the mouse

The receiver is so small that it can stay in the USB socket of a laptop while being transported. To avoid any damage, you can also pull out the receiver and deposit it in the mouse to protect it from dirt and loss.

Setting the DPI rate of the mouse

The speed of the mouse pointer increases with the level of the DPI rate.

  • To change the DPI rate, press the DPI button on the top of the mouse.

The LED flashes according to the setting:
1x = 1000 dpi, 2x = 1750 dpi

The setting is saved in the mouse and is retained even when the mouse is switched off.

Surface under the mouse

The mouse is most effective on a light-colored, textured surface, which saves energy and ensures optimal motion detection.

A reflective surface is not suitable for using the mouse on.

Energy-saving shutdown

For instance when transporting, if you press the mouse button for longer than 3 minutes, the mouse switches off automatically.

To reactivate the mouse, switch off the mouse with the OFF switch and switch it on again with the ON switch.

Battery status

When the voltage of the mouse batteries decreases, the LED starts flashing.

  • Replace the batteries as soon as possible.

Configure devices individually

With the CHERRY KEYS software you can freely assign the mouse buttons and many keys on the keyboard. This allows you to access apps, files, individual text modules or macros at the touch of a button.

You can obtain CHERRY KEYS as a free download at www.cherry.de.

Give it a go!

Cleaning the mouse

  1. Switch the mouse off.

information NOTICE: Damage due to aggressive cleaning agents or liquid in the mouse

  • Do not use solvents such as benzene, alcohol, scouring agents or abrasive scourers for cleaning the mouse.
  • Prevent any liquid from getting inside the mouse.
  1. Clean the mouse with a slightly damp cloth and some mild detergent (such as washing-up liquid).
  2. Dry the mouse with a soft, lint-free cloth.

If the mouse is not working

  • Switch the mouse off and on again.
  • Check whether the batteries are inserted correctly and have sufficient voltage.
  • Connect the receiver to a USB 2.0 port on your PC/laptop (this usually has a white or black guide). Malfunctions occasionally occur on USB 3.0 ports (blue guide).
  • Connect the receiver to another USB 2.0 port on the PC/laptop.
  • Establish a new connection to the receiver:
    • Disconnect the receiver from the USB port and plug it in again.
    • Within 30 seconds, keep the mouse as near to the receiver as possible then press the scroll wheel and the right mouse button at the same time.
    • Release the buttons when the battery status LED on the mouse flashes after approx. 3 seconds.

Technical data

Designation Value
Supply voltage Mouse: 2.2... 3.3 V SELV
Receiver: 5.0 V/DC ±5% SELV
Power consumption Mouse: typically 2.5 mA
Receiver: typically 29 mA
Batteries 2 alkaline batteries, type LR03 (AAA)
Transmission frequency 2400.0... 2483.5 MHz
Transmission power Max. 10 mW (EIRP)
Storage temperature -20°C... +60°C
Operating temperature 0°C... +40°C

UKCA

UK Authorised Representative:
Authorised Representative Service
The Old Methodist Chapel
Great Hucklow
SK17 8RG
UK
